Electrocardiogram waves, intervals, and segments. On standard calibration, each large box has sides of 0.5 cm. On the horizontal axis, each large box represents 0.2 seconds, and each smaller box represents 0.04 seconds. On the vertical axis, each small box is 1 mm in height; 10 mm = 1 mV.
How do you count small boxes on an EKG?
1 SMALL square (1mm) = 0.04 sec (40ms) 5 SMALL squares (5mm) = 1 LARGE square = 0.2 sec (200ms) 5 LARGE squares = 1 second.
What is the EKG paper called?
A standard 12-lead ECG report (an electrocardiograph) shows a 2.5 second tracing of each of the twelve leads.
How many boxes is a normal QRS?
This measurement should be 0.12-0.20 seconds, or 3-5 small squares in duration. The second measurement is the width of the QRS which should be less than 3 small squares, or less than 0.12 seconds in duration.
How many boxes is a normal QT interval?
QT interval = about 10 small squares = 0.4 seconds. This is about what the duration of the QT interval should be. The isoelectric line = The line between the T wave and the next P wave.
How are EKG boxes measured?

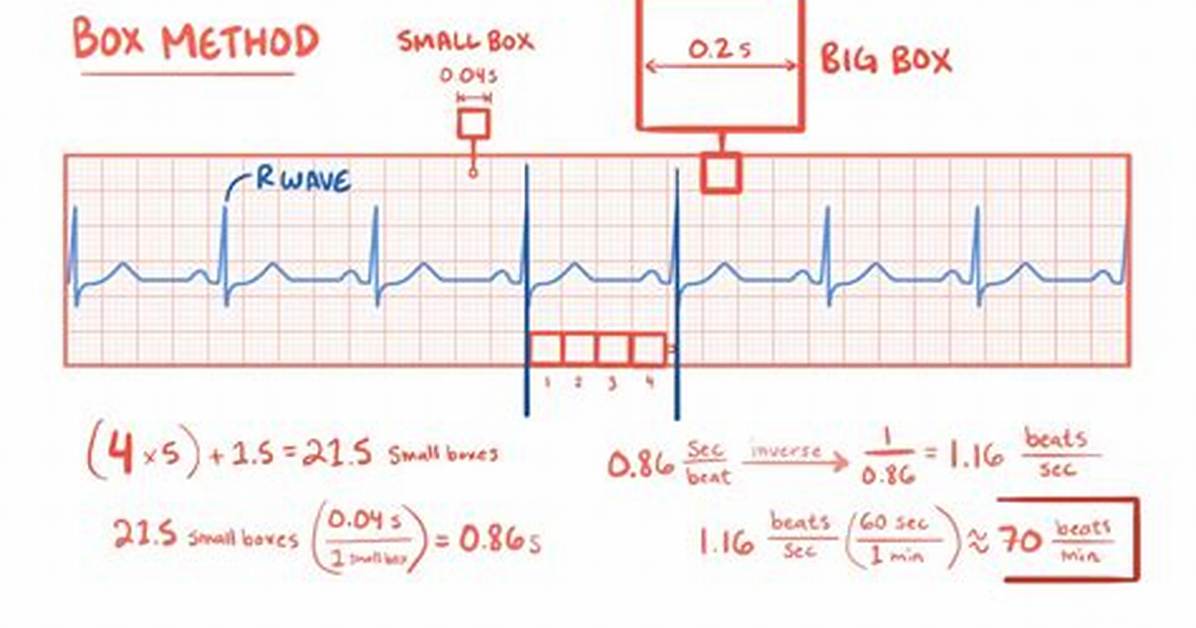

Small Box Method
To calculate the ventricular rate, count the number of small boxes between two consecutive R waves and divide by 1500. To calculate the atrial rate, count the number of large boxes between two consecutive P waves and divide by 1500.
What is a normal ECG number?
The normal range of the ECG differed between men and women: heart rate 49 to 100 bpm vs. 55 to 108 bpm, P wave duration 81 to 130 ms vs. 84 to 130 ms, PR interval 119 to 210 ms vs.
What is normal EKG?
If the test is normal, it should show that your heart is beating at an even rate of 60 to 100 beats per minute. Many different heart conditions can show up on an ECG, including a fast, slow, or abnormal heart rhythm, a heart defect, coronary artery disease, heart valve disease, or an enlarged heart.
How do you read an EKG paper?
ECG paper is marked with a grid of small and large squares. Each small square represents 40 milliseconds (ms) in time along the horizontal axis and each larger square contains 5 small squares, thus representing 200 ms. Standard paper speeds and square markings allow easy measurement of cardiac timing intervals.
What does 5 large boxes each consisting of 5 small boxes represent on ECG paper?
ECG paper is a grid where time is measured along the horizontal axis. Each small square is 1 mm in length and represents 0.04 seconds. Each larger square is 5 mm in length and represents 0.2 seconds.
What are the 3 types of ECG?
Details of the three types of ECG leads can be found by clicking on the following links:
Limb Leads (Bipolar)Augmented Limb Leads (Unipolar)Chest Leads (Unipolar)
How do you measure QRS on EKG?
Determine where the QRS complex is, and to do this you start measuring the END of the PR interval to the END of S-wave. Count the SMALL boxes between there measurements. Remember each box represents 0.04 seconds. So, if you measure 2 boxes the measurement of the QRS complex would be 0.08.
