Board Foot: Rough sawn lumber is usually sold by the “board foot” (bd. ft.). A board foot is equal to a piece of wood 12 inches long x 12 inches wide and 1 inch thick, or 144 cubic inches. To figure the board foot measurement of a piece of wood, multiply the length x width x thickness in inches, then divide by 144.
What is the difference between nominal and actual sizes in lumber?
Why are the nominal dimensions of lumber larger than the actual dimensions? The simple answer is the nominal measurements were derived from a board’s size before it has been dried and planed smooth (surfaced) on all 4 sides. The actual measurements are the final dried and surfaced size.
Is plywood considered dimensional lumber?
For the average do-it-yourselfer, most long, thin lumber that will be used for building is considered to be dimensional lumber. Other types of lumber, such as plywood and other sheet goods, are offered in prescribed standard sizes but are not referred to as dimensional lumber.
Can you buy actual size lumber?
All of our lumber is cut to true dimensions. Meaning if you order a 2″x 4″ x 10′ the piece of lumber you receive will be 2 inches thick, 4 inches wide and 10 feet long.
Why do 2×4’s have rounded edges?
2×4 have rounded edges as it’s very beneficial to the wood itself and those working with it. They reduce the number of injuries like unwanted splinters during the handling and manufacturing process and also ensure that the lumber stays looking its best all throughout until the customer sees it.
Do they make 2×14 lumber?
AC2® 2 x 14 Ground Contact Green Pressure Treated Lumber at Menards®
What is the difference between framing lumber and dimensional lumber?
Structural lumber can be broken down into seven categories: Light framing lumber is 2-inches to 4-inches thick and 4-inches wide. Structural light framing is 2-inches to 4-inches thick and 2-inches to 4-inches wide. Dimensional lumber and studs are 2-inches to 4-inches thick and 2-inches to 4-inches wide.
Why are lumber sizes wrong?
Maybe you’ve noticed that lumber sizes are often misleading. The “nominal” cross-section dimensions of a piece of lumber, such as 2 X 4 or 1 X 6, are always somewhat larger than the actual, or dressed, dimensions. The reason is that dressed lumber has been surfaced or planed smooth on four sides (called S4S).

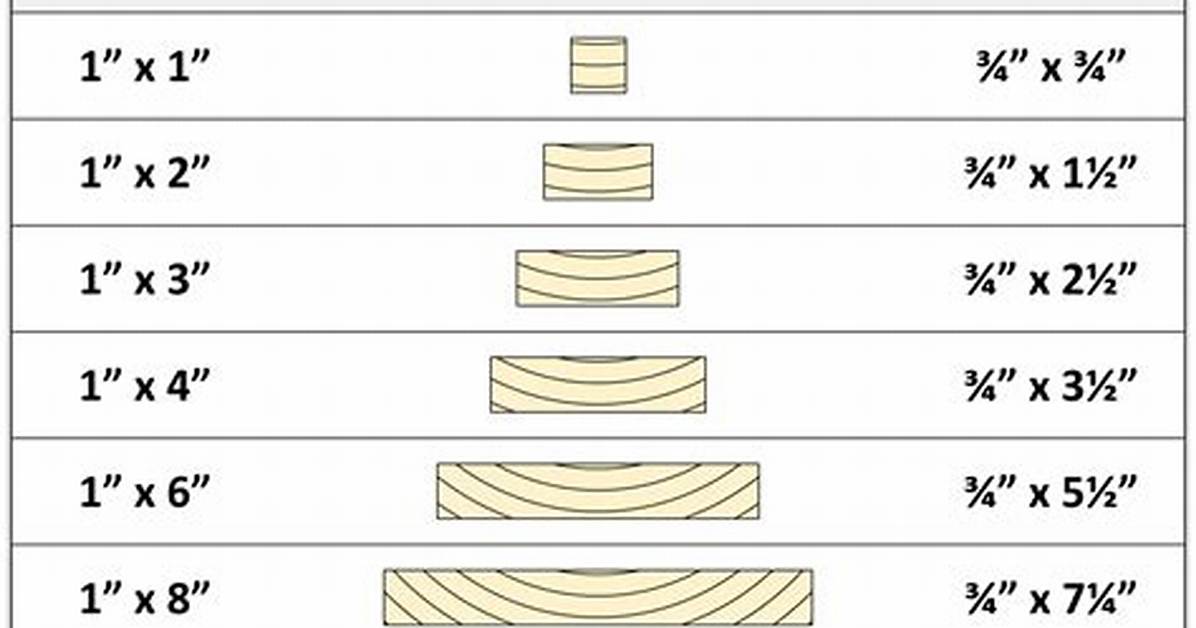

What does 1×4 mean?
A 1×4 measures 3/4 inch thick by 3 1/2 inches wide and a 2×4 measures 1 1/2 inch thick by 3 1/2 inches wide.
Why is lumber smaller than the size it says?
Typically, that rough cut is smaller than the nominal dimensions because modern technology makes it possible to use the logs more efficiently. For example, a “2×4” board historically started out as a green, rough board actually 2 by 4 inches (51 mm × 102 mm).
Why is a 2×4 not 2×4?
The simple reason why 2×4 is not 2 inches by 4 inches is that lumber mills trim off rough or warped surfaces of a 2×4 to give it a more polished and finished look. By planning the lumber on all four sides, the original 2×4 is now reduced to 1 ½ inches by 3 1/2 inches.
What wood is used for dimensional lumber?
In order to best facilitate a wide range of applications, dimensional lumber is sawn, planed, and sometimes further manufactured , and it can be produced from many types of wood, including southern yellow pine, spruce-pine-fir, Douglas fir, and Hem fir.
What is true dimensional lumber?
The home’s original porch flooring, like all of the other original lumber in the house, is true dimensional. This means that a 2-by-4 stud actually measures 2 inches by 4 inches, and not 1-1/2-by-3-1/2 inches as is commonly available today.
Are there different grades of lumber?
Your Guide to Lumber Grades
As stated above, the various grades of lumber are determined by the appearance of the wood and the number of defects. These grades are determined by the U.S. Department of Commerce and the American Lumber Standards Committee.
