The NEC specifications are: One wire: maximum fill is 53% of the space inside a conduit. Two wires: maximum fill is 31% Three wires or more: maximum fill is 40% of the conduit’s total available space.

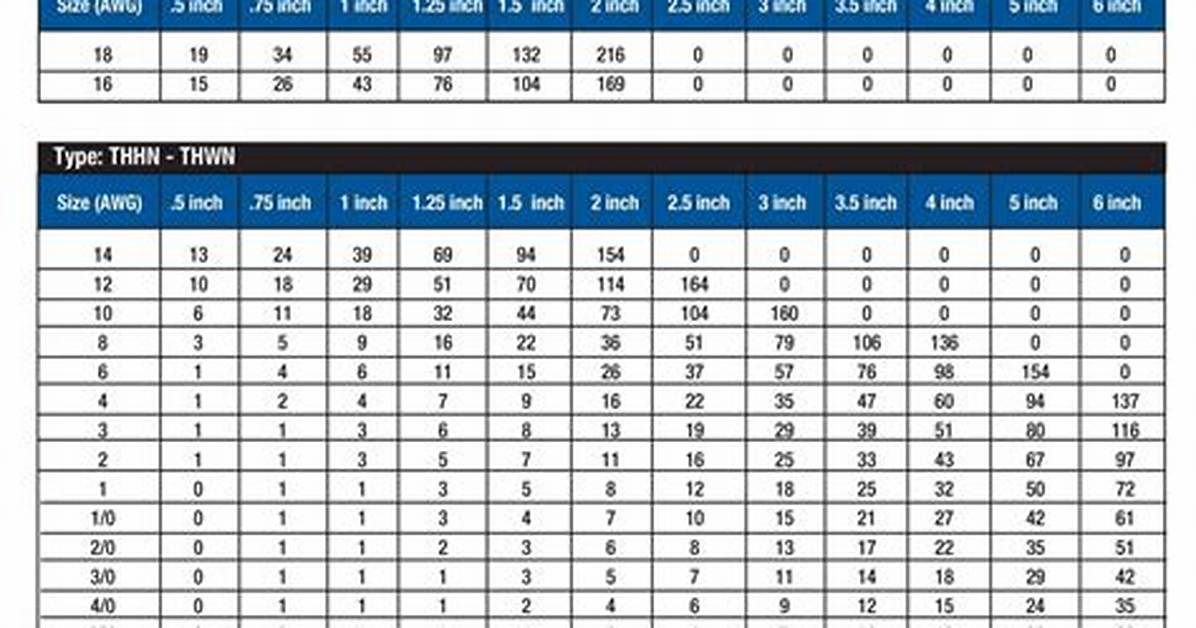

How is conduit fill calculated?
Finding minimum available conduit area
The National Electrical Code establishes that if a conduit only contains 1 wire, the max fill percentage is 53%. If it contains 2 wires, the max fill percentage is 31%. And if it contains 3 or more wires, the max fill percentage is 40%.
Is it OK to run Romex in conduit?
No, you can not run your Romex wiring in conduits. What you’re looking at in the code book is referring to THHN and other wiring, that while insulated with a single coat is not insulated with a second covering and bound to 2 or 3 other wires.
Does ground count as a conductor?
Each grounded (neutral) conductor and each ungrounded (hot) conductor, originating outside the box and terminating inside the box, counts as one conductor. One equipment-grounding conductor or equipment-bonding conductors counts as one conductor.
Can you run multiple circuits in one conduit?
Feed separate circuits through the same conduit. You can do this, just make sure your conduit is large enough to hold the wires easily. The major downside here is that, while it only requires another conduit run, it also requires you to home run three circuits to your house.
What size conduit is needed for 4 6 wires?
You can fit four #6 wires in a ¾-inch conduit.
Where installed shall be included when calculating conduit or tubing fill?
Equipment grounding or bonding conductors, where installed, shall be included when calculating conduit or tubing fill. The actual dimensions of the equipment grounding or bonding conductor (insulated or bare) shall be used in the calculation.
How many 12 AWG wires can I put in a 3/4 EMT conduit?
Q. What is the maximum number of 12-gauge wires permitted in 3/4-inch conduit? A. Master electrician Rex Cauldwell responds: For practical purposes, the maximum number of 12-gauge THHN conductors for a 3/4-inch EMT conduit is nine.
Where is PVC conduit not allowed?
Ambient temperature — PVC conduit isn’t permitted to be installed if the ambient temperature exceeds 50°C (122°F) [Sec. 352.12(D)].
How deep should an electrical conduit be buried?
The generally applicable depth is 12 inches, or you can reduce it to 6 inches if you secure the cables with 2 inches of accuracy. Below an entry path, it is feasible to require only 12 inches of burial depth. Conduits require for installation in 2 inches of solid rock with accuracy.
Where is Romex not allowed?
While allowed in houses, it is important to note that the NEC prohibits the use of Romex conductors in residences higher than 3 stories, while the wires are prohibited altogether in commercial buildings.
Can I put Romex in PVC conduit?
Running Romex in a Conduit
When using any non metallic wire outdoor, including Romex, it is a good idea to run it through a conduit. Yes, they can be used outdoors, it is better to be safe than sorry. We recommend using a conduit when running the wire underground.
Can you use indoor Romex outside in conduit?
Romex wires cannot be used outdoors because, if it gets wet with water, gas, oil or another solvent, these liquids could penetrate the jacket and ruin the connection by getting in contact with the bare copper ground wire.
