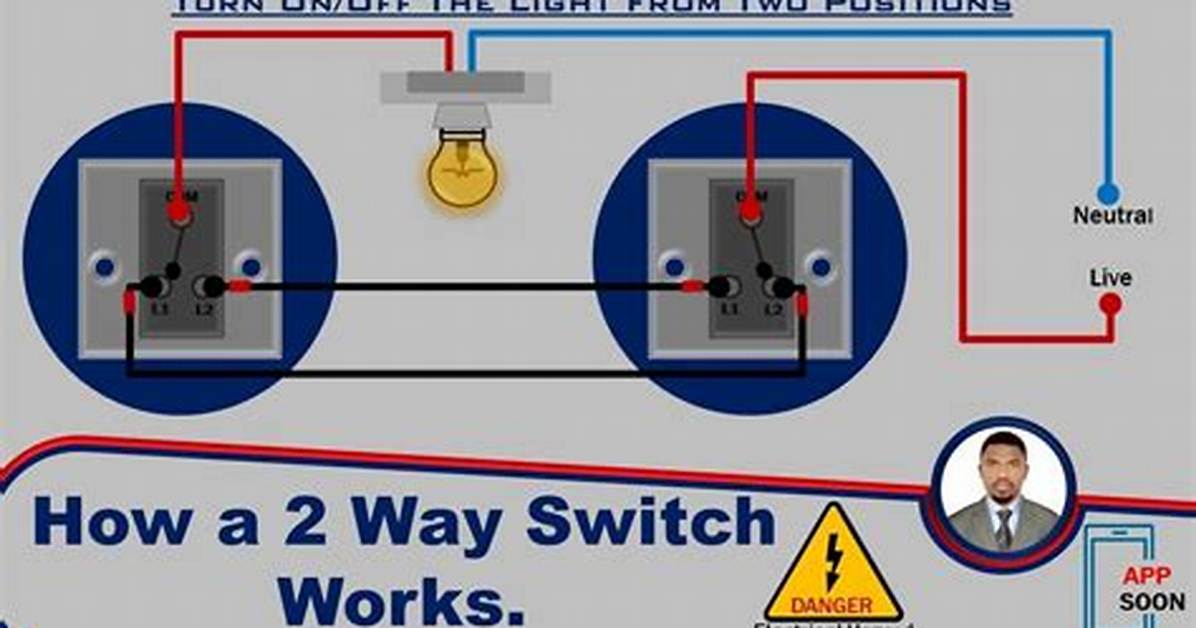

Two way switching means you can switch the same light fixture from two switches that are located in different sides of a room. Two way switches have a COM terminal as well as L1 and L2 terminals. When L1 is off L2 would be on.
What is the difference between a 2 way and 3 way light switch?
In a normal switch, the two terminals are either connected (as shown) or disconnected. When they are connected, the switch is “on.” In a three-way switch, the top terminal connects to one or the other of the bottom two terminals.
What is a 2 way light switch used for?
The advantage of a two-way switch is the ability to control a single device from two separate locations. A convenient and apt use for them is for locations like stairways, a long corridor or a very large room. So, imagine, it is late at night and you are at the bottom of a stairway.
What’s the difference between a 1 way and 2 way switch?
1 way is an on/off switch and means there’s only one place you can turn your light on or off. This is the most common kind of switch found in most homes. Most 2 way switches can also be used as a 1 way on/off switch. 2 way means there’s another switch controlling the same light.
Can I use a 2 way light switch as a 1 way?
A two way switch can be used as a one way switch or a two way switch. They are often used as both. In fact many electrical retailers (including Socket Store) don’t sell one way switches as the price difference is insignificant and the two way will do the job for both.
Do you need a special switch for a two way light?
The input terminal is called Common. The output terminals are called Normally-Open and Normally-Closed. – Turning a light on and off from 2 different locations requires a 2-way switching circuit. – A 2-way switching circuit requires 2 SPDT switches.
Can I use a 3 way switch as a 2 way?
To change a three-way switch to a two-way switch, deactivate and remove the extra three-way switch. A three-way wall switch is single pole double throw (SPDT) with three connection wires and is typically wired with 12/3 or 14/3 cable between the two switches.
Does it matter which wire goes where on a light switch?
It doesn’t matter as long as you do it the same on both switches. So, if you connect it to the upper right terminal on one switch, connect it to the upper right terminal on the other switch. Connect the second traveler wire to the terminal opposite the red wire terminal.
How can you tell if a switch is two way?
Although there are many types of switches, we are more accustomed to one-way and two-way electrical switches. The main difference between them is the number of contacts that they have. A one-way switch only has two contacts while a two-way switch has three. A one-way switch basically operates as a make or break switch.
Is L2 live or neutral?
L1 is live and L2 is neutral.
What are the 4 types of switches?
The types of switches are classified into four types namely:
SPST (Single Pole Single throw)SPDT (single pole double throw)DPST (double pole, single throw)DPDT (double pole double throw)
