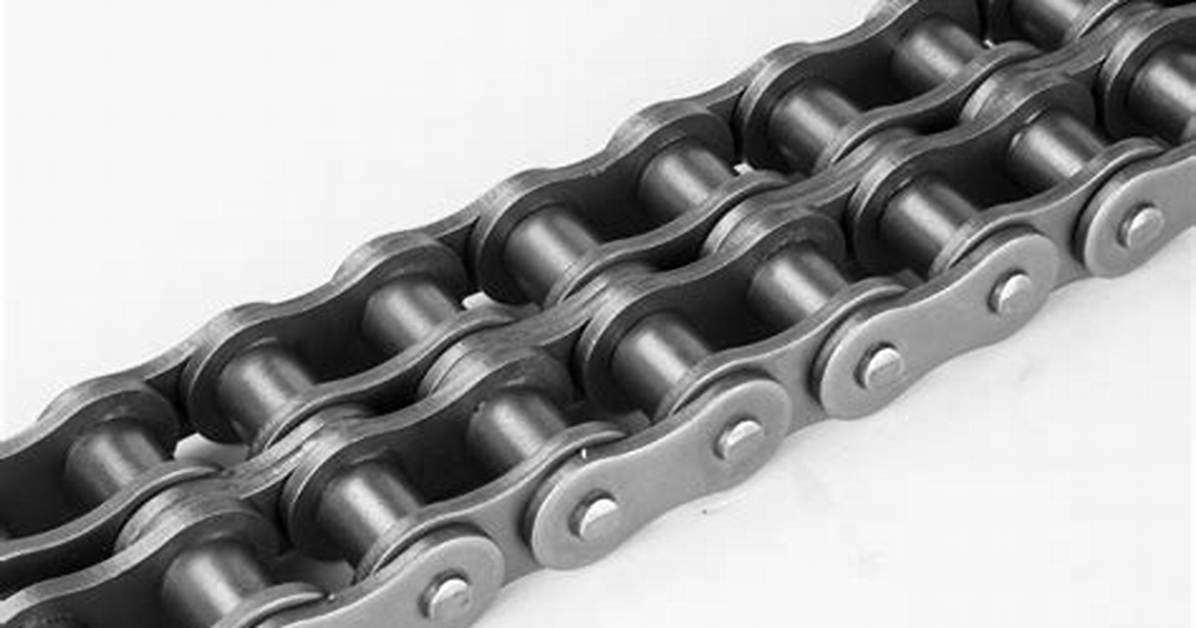

#35 Chain: Typically seen on small wheeled mini-bikes and dead axle karts. This smaller chain is lightweight and comes with more racing options than it’s bigger counterparts. We stock a variation of clutches and sprockets to fit this chain.
Is 35 chain the same as 420?
Difference between #420 and #35 chain
Both will use a different sprocket. A #35 sprocket won’t fit a #420 sprocket and vice versa. #420 chain is 1.75 times heavier than 35 chains and can withstand nearly 2 times more load.
What is the number 35 roller chain?
STENS Roller Chain #35 is a great OEM replacement option to keep your outdoor power equipment running at the top of its game. We offer parts and accessories for a variety of applications such as lawn mowers, snowblowers, chainsaws and more.
How do I know my chain size?
To measure the chain size, if you have just the sprocket, use calipers to measure between the teeth. Measure from center to center of where the chain roller would set between the teeth that will give you the pitch. Once you know the pitch you can determine what chain size you would need.
Will a 35 chain fit a 219 sprocket?
a. Because 35 pitch chain has a larger pitch (9.525mm), less links occupy a given diameter of sprocket. That means a 35 sprocket with the same number of teeth as a 219 pitch sprocket will be larger in diameter.
How do I know my motorcycle chain size?
The first digit represents the pitch and the last two digits represent the width. Chain pitch is measured in eighths of an inch. Motorcycle and ATV chains have a pitch number of either 4, 5 or 6. If the distance between the centerlines of the two pins in a link is 4/8th of an inch, the chain has a pitch number of 4.
What is a #40 chain?
#40 roller chain is a 1/2″ pitch ANSI B29. 1 industrial duty roller chain that is manufactured with precision components and high-strength carbon steel alloys. Being made to ANSI dimensional standards means that this chain directly interlaces with other brands and interlaces.
What is the difference between #40 and #41 roller chain?
The differences between 41 roller chain and 40 roller chain are the roller width and diameter, plate height and thickness, overall width, and tensile strength.
What size chain is on a Coleman CT200U?
Front Jackshaft Size #420 Chain for Coleman CT200U CT200U-EX BT200X Mini Bike, 2 Pack.
What size is a T8F chain?
8mm chain is also called T8F chain and is the most common type of chain used on higher powered pocket bikes and electric scooters.
What is a #25 chain?
#25 roller chain is a 1/4″ pitch ANSI Standard roller chain designed for light-duty or space confined applications. It’s the smallest size roller chain on the ANSI spectrum of roller chains but offers ample performance, strength, and durability for its small form factor.
Are bike chains universal?
No. Not all makes and models of bike chains fit on all bikes. Most modern bike chains are made to the one-half inch pitch, but this dosn’t mean all chains fit all bikes.
What is metric chain?
It is subdivided into 100 links or 4 rods. There are 10 chains in a furlong, and 80 chains in one statute mile. In metric terms, it is 20.1168 m long. By extension, chainage (running distance) is the distance along a curved or straight survey line from a fixed commencing point, as given by an odometer. chain.
