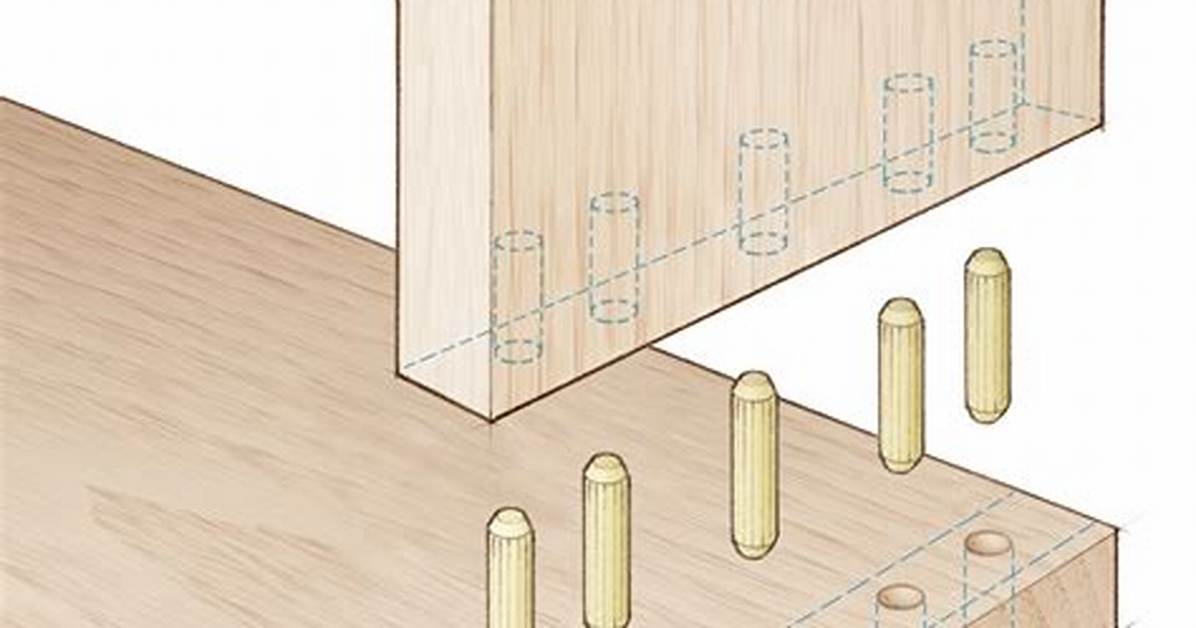

Dowel joints are most commonly used in carpentry and woodworking applications to join two or more pieces of wood. Typical applications where dowel joints are used include (but are not limited to) furniture making, constructing shelves, to reinforce butt joints and toy making.
Are dowel joints strong?
It helps to ensure a neat finish. There is no need for screws, nails or other equipment. Dowel joints are the strongest type of joints when it comes to woodworking, especially when using multiple rows of dowels. Dowels help to create strong joints that are easy to make at home.
What are the disadvantages of a dowel joint?
Dowel Joint Cons
Misalignment Of Joints.Dowel Shearing.Weaker Joint.No Face To Face Grain Contact.
Why are wood joints used?
The purpose of wood joints is to provide strength, flexibility, toughness, appearance etc. to the project. So, your joints should offer these characteristics. Some wood joints use fasteners, adhesives, or bindings while others use only the wood elements.
How long should dowel joints be?
Twice this length is a common rule of thumb for determining dowel length. For example, if your shortest member is 1” thick and you know your safest drilling depth is 3/4”, then a 1-1/2” dowel should be used. A 1-1/2” length equates to two times the 3/4” thickness. The longer the dowel, the greater the holding strength.
Are dowel joints stronger than screws?
Dowel joinery is stronger than screw joinery. The increased glue surface caused by the glue deeply penetrating the wood gives the dowel more holding power. The clamp and dry method used in dowel construction ensures that the joint is sufficiently set before the next step in building the item is taken.
What are the advantages and disadvantages of a bridle joint?
Bridle Joint Pros & Cons
Simpler alternative to the mortise and tenon joint.Can shape joint assembly and not sacrifice strength.Great for constructing narrow frames.One of the simplest joints to cut.Doesn’t require a mortising machine.
What are the advantages of a Mitre joint?
The miter joint has two signal advantages over a butt-corner joint: First, no end grain shows, making for a more regular and attractive joint; second, the surface for gluing is increased. Miter joints may also be fastened with nails, screws, dowels, or other mechanical fasteners.
Which wood joint is strongest?
Mortise and Tenon Woodworking Joints
One of the strongest woodworking joints is the mortise and tenon joint. This joint is simple and strong. Woodworkers have used it for many years.
What are the disadvantages of a Mitre joint?
The major disadvantage of using a miter joint is that they are not very strong. This is due to the fact that you have to glue end grain to end grain, which does not create a very strong bond. There are ways that you can reinforce the joint, so woodworkers still use them for some things.
Should dowels be tight?
Depends on how hard you have to hit them. If they are too tight to just push in, but need a tap, then they are perfect. If you have to really hammer them, then they are probably too tight. Dowels are rarely truly round; if they go in too easily than they aren’t in contact on much of the dowel.
Do dowels need glue?
Install the Dowels
You don’t need much glue, as too much glue will either squeeze out or make it difficult to insert the dowels.
Can you use dowels in plywood?
Wooden dowels can be used in a variety of ways. They can be used with mitered joints and end to end joints, but I see them most commonly used in edge to face joints. And this doesn’t relate only to plywood, either! You can even use these dowel to connect plywood (or other wood types) to concrete as well.
Is a dowel joint permanent?
Below another way in which dowels can be used to form a joint. Modern pieces of furniture are often jointed in this way. It is a permanent method but it is not the strongest joint as the parts can eventually pull apart, especially as the joint becomes old. However, it is a quick to do and saves precious time.
What is a carpentry joint called?
Mortise and tenon joint
This is one of the most traditional types of woodworking joints. It involves a mortise, which is a rectangular or square-shaped hole or cavity carved into the side of one board, and a tenon. The tenon is a protruding piece on the other board, which is the same size as the mortise.
