How to Calculate Even Deck Baluster Spacing
Measure the length of the space between the end supports of the balustrade. Divide that length by four to determine the number of spaces you will need while having a minimum of 4 inches distance between balusters.
What is the distance between balusters on stairs?
General Baluster Spacing – The general rule of thumb is to have 3 baluster per foot so you do not have any gaps greater than four inches. If you put one baluster every 4 inches on center, then you will typically always be fine.
How many balusters do I need?
The general rule is that your railing must have three balusters per foot (every 12 inches), although you can place them closer together if you’d like.
What length balusters do I need?
Guards, spindles, or balusters must be 34” to 38” when measured from the nose of a 10-inch deep tread. Interior stairwells require that anything over 2 steps or 3 risers would need a rail. Balusters, or other options of vertical guards that support a handrail, should be able to support 50lbs over a 1-square-foot area.
How do you measure knee wall baluster spacing?
For balconies and knee walls, measure the opening between the bottom square block of the newel and either the opposing newel or wall. Add the thickness of the baluster to this measurement. Example: if the opening between two newel posts is 71″ and the balusters are 1-1/4″ square, then add 71″ + 1-1/4″ = 72-1/4″.
How wide should balusters be?
Spacing & Quantity: To meet the 4″ ball rule required by most building codes, space these spindles every 4 3/4″ On Center. The smallest diameter of the turned portion is approx. 7/8″, so with a 4 3/4″ O.C. spacing, you’ll have a 3 7/8″ gap between them at the narrowest portion.

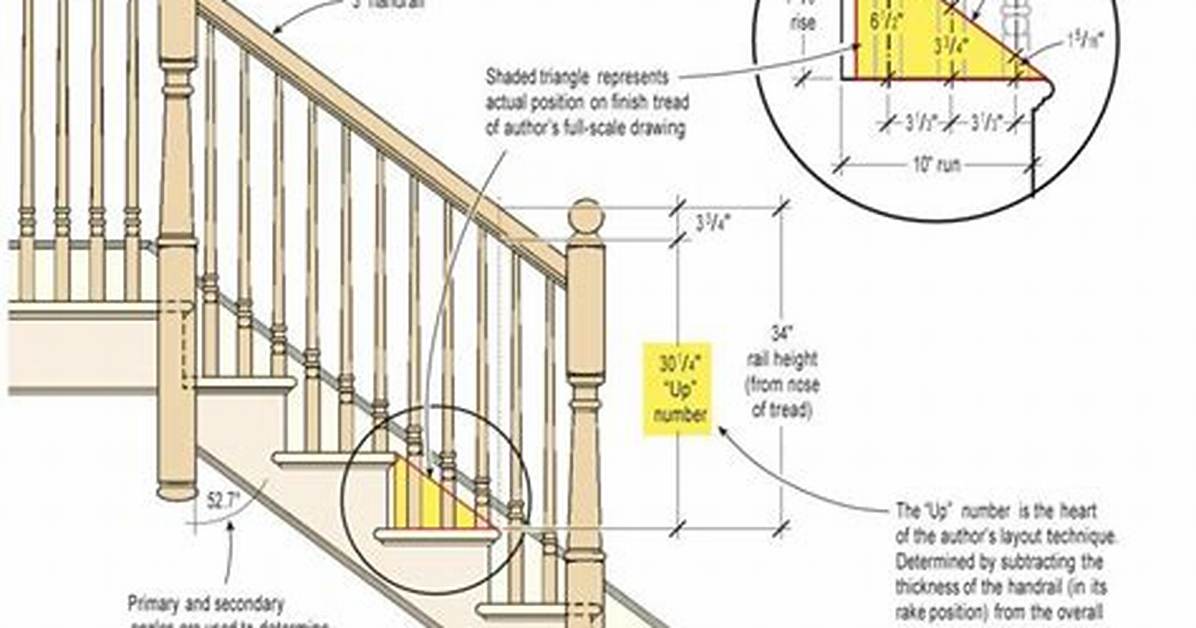

How do you calculate stair balusters?
Two Balusters per Tread – Spindle/Baluster Spacing
Center to Center Spacing: Simply take the tread run divided by the number of balusters per tread. So let’s assume a tread run of 10 and begin with a 2 baluster per tread pattern. So we take 10 ÷ 2 = 5.
How tall should a baluster be?
Typically floor level balustrades must be at least 36” high or 42” high, depending on local codes and stair guardrails must be between 34” and 38”.
How is baluster height determined?
Measure the distance between a stair step and the banister directly above it. This provides the length you need for each baluster. Add 2 inches to this measurement if you are installing metal balusters, to provide extra space for you to drill the baluster into the banister.
Do balusters go inside or outside?
When a child falls against the loosened baluster, the balusters will give and the child falls thru (to injury). Better to have the balusters fastened from inside of the railing or deck. I’m not clear on what dimension you refer to by the term “depth” – but the 4″ opening between space is within common guidelines.
Are balusters and spindles the same thing?
A baluster and spindle is actually almost the same thing, but the word spindle is more commonly used because it is easier to remember and say. Balusters usually rest on a footing; this could be a step, floor or deck, whereas, spindles are supported by a horizontal rail at the bottom that is attached to the posts.
