Select the border of the scale area for editing.
Click View tab Viewports panel Scale Monitor. Find. The Scale Monitor dialog box is displayed.In the drawing area, move the cursor over the scale area (or a viewport ) and check the Scale Monitor dialog box.Press ENTER to exit this command.
What is the scale factor of 1 50?
You could also say, 1 unit in the drawing is equal to 100 units in real life. So, if we were drawing a table that measured 100cm wide by 200cm long at a scale of 1:50, you would draw the table 2cm wide by 4cm long on your piece of paper. This is worked out by dividing the real life size (100cm) by 50 (1:50 scale).
What is the scale factor of 1 1 in AutoCAD?
AutoCAD 2D drawings are commonly drawn in model space at a 1:1 scale (full-size). In other words, a 12-foot wall is drawn at that size.
How do I change scale 1 to 100 in AutoCAD?
For scale of 1:100 use the SCALE command to scale the rectangle 100 times. Put this rectangle around what you want to plot then plot using Window and select the corners of the rectangle. Use scale to fit for the scaling and print it out.
What is the formula of scale factor?
The basic formula that is used for calculating the scale factor is, Scale factor = Dimension of the new shape ÷ Dimension of the original shape. In case, if the original figure is scaled up, the formula is written as, Scale factor = Larger figure dimensions ÷ Smaller figure dimensions.
How do you scale factor?
To find scale factor, start by finding the length of a corresponding side on each figure. If you’re scaling up from a smaller figure to a larger one, plug the lengths into the equation scale factor = larger length over smaller length.
How do you make a 1/20 scale in AutoCAD?

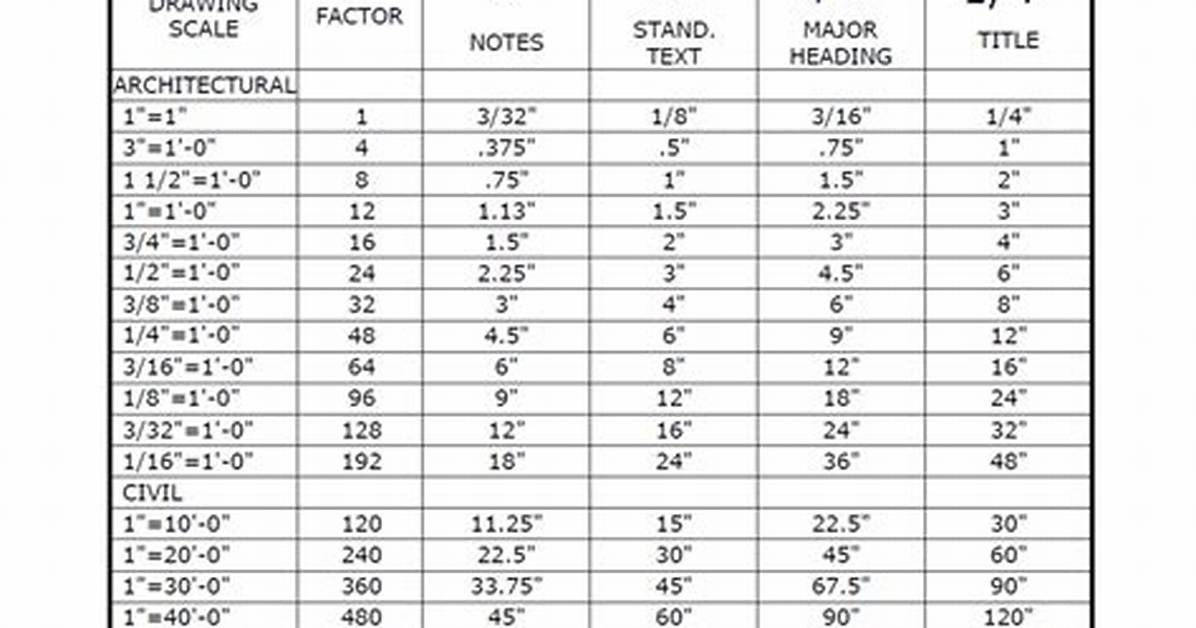

Calculating Scale Factor
Select the desired scale. 1″ = 20’Multiply the feet by 12. 20 x 12 = Scale Factor 240.
How do I scale a drawing in AutoCAD 1 50?
How to scale down in AutoCAD – Window select the object(s) in AutoCAD, type SCALE, and then specify a number between 0 and 1. Hit Enter. The size of the object(s) will SCALE DOWN by that factor.
What is the scale factor of 48?
Typically, a scale factor is unit-less; a scale factor of 48 (or 1:48) is saying that for one unit on the page, it represents 48 of the same units in real life. While the two previous examples may look a lot different, they actually could be describing the same drawing.
What is a 1/8 scale?
1: The drawings state that the scale is 1/8 inch equals 1 foot. Using your architect scale, select the face of the tool with the 1/8 mark in the upper left-hand corner. Lay the “0” point at the extreme left end of this line, and read the corresponding value at the right end of the line.
What is a 1 1 scale?
The scale of drawings is described as a ratio using the notation: A distance at full size : The distance at the scale used that would be the same length. For example: A full size drawing would be 1:1 (or sometimes 1/1 or ‘one to one’). A half size drawing would be 1:2.
What does the scale 1/100 convert to?
A scale of 1 to 100 is indicated on a drawing using the code 1:100. This can be interpreted as follows: 1 centimetre (0.01 metre) measured with a ruler on the plan would need to be multiplied by 100 to give the actual size of 1 metre.
How do you use a 1 500 scale?
A scale of 1:500 means that the actual real-life measurements are 500 times greater than those on the plan or map. This means that it does not matter whether you take the measurements on the plan in millimetres (mm), centimetres (cm) or metres (m) – the measurements will be 500 times as much in real life.
What is an example of scale factor?
A scale factor is a number which multiplies (“scales”) a quantity. For example,the “C” in y = Cx is the scale factor for x. If the equation were y = 5x, then the factor would be 5.
How do you find the scale factor of a scale drawing?
To find the scale factor, locate two corresponding sides, one on each figure. Write the ratio of one length to the other to find the scale factor from one figure to the other. In this example, the scale factor from the blue figure to the red figure is 1.6 : 3.2, or 1 : 2.
What is the scale factor of 4?
The scale factor is the ratio of the length of a side of one figure to the length of the corresponding side of the other figure. Here, XYUV=123=4 . So, the scale factor is 4 . Note that when a two-dimensional figure is enlarged ( dilated ) by a scale factor of k , the area of the figure is changed by a factor of k2 .
