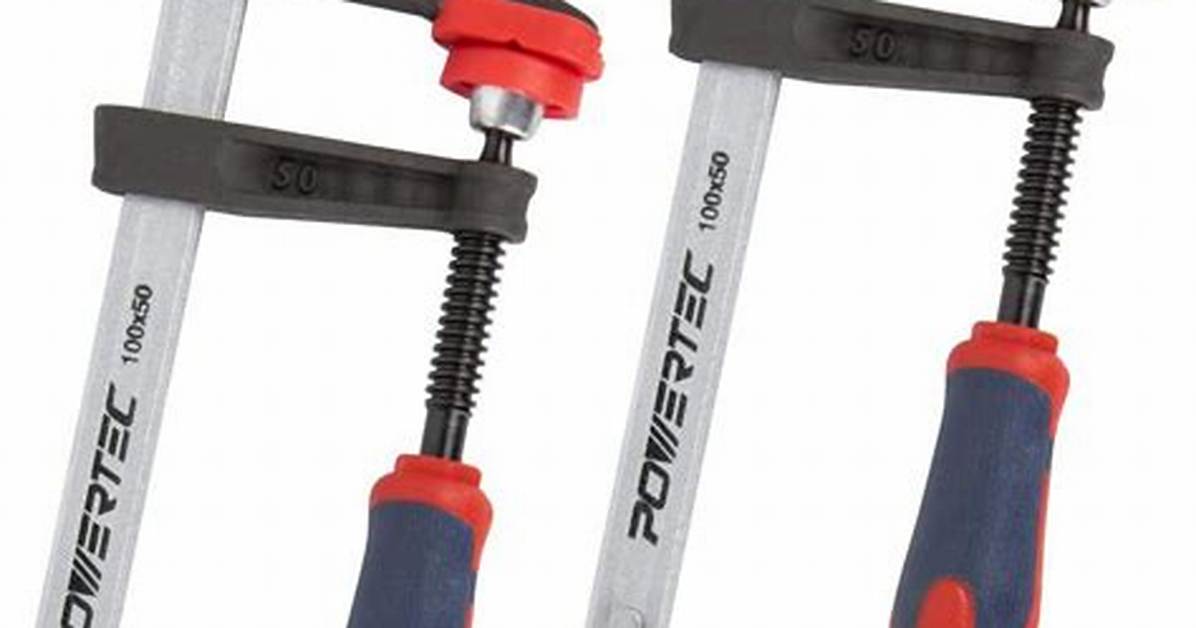

The name comes from its “F” shape. The F-clamp is similar to a C-clamp in use, but has a wider opening capacity (throat). This tool is used in woodworking while more permanent attachment is being made with screws or glue, or in metalworking to hold pieces together for welding or bolting.
What is AC or F-clamp?
The function of F clamp is similar to C or G clamp, and the throat depth is wider comparing with C clamp. This clamp is used in woodworking filed and with screw or glue to hold tightly or in welding filed to hold together. F clamp is made with two horizontal bars and one vertical bar.
What are the 7 types of clamps?
What are the different types of clamps?
Screw Clamps. Screw clamps are types which use a screw mechanism to adjust the jaws and clamp a workpiece in place. Quick-Release Clamps. Bar Clamps. Locking Clamps. Angle Clamps. Flooring Clamps. Band Clamps. Toggle Clamps.
What are clamping devices?
Clamping device are used to minimize the distortion during the machining process. Once the workpiece is located, it is necessary to hold it against the machining force. The mechanism used for this is known clamps. They are work holding devices usually positioned above the supporting surfaces.
How many clamps do I need for woodworking?
If you are a beginning woodworker, these will serve you fine for years. Bottom line: 4 bar clamps, 4 pipe clamps and a strap clamp. You actually may not ever really need anymore. Of course, if you’re like most woodworkers, you will probably accumulate more clamps than the essentials.
Are F clamps strong?
Wilton Classic Series F-Clamp Kit
These clamps are all made of forged steel, which makes them both strong and slightly more lightweight than some of their competitors.
Where are Wilton F clamps made?
Wilton Tools has a variety of tools, they best known for rugged and dependable Vises & Clamps which are “Proudly made in the USA”.
What are quick Clamps?
It is a clamp designed with a mechanism that allows the user to open and close the jaws swiftly in a single movement. It is sometimes referred to as the quick-release clamp due to how quickly it can clamp a workpiece and release it from the grip.
How Do You Measure F-clamp size?
The throat depth is how deep the jaws of a clamp are, and is measured from the top edge of the jaws to the bar. The smallest throat depth available is 50mm (2″ approx.). The largest throat depth available is 175mm (7″ approx.).
What is AC clamp used for?
A C-clamp or G-clamp or G-cramp is a type of clamp device typically used to hold a wood or metal workpiece, and often used in, but are not limited to, carpentry and welding.
What is the type of clamp?
Band clamp or web clamp. Bar clamp, F-clamp or sliding clamp (upper left in the photo) Cardellini clamp – jaw-style clamp that clamps onto round, square, or rectangular tubing; or onto flat objects, such as dimensional lumber or plywood sheets—to mount motion picture lights, or grip equipment such as gobo heads.
What are 3 types of bar clamps?
There are different types of bar clamps, too, including T-bar clamps, pipe clamps, and the aforementioned quick-release bar clamps.
What are big clamps called?
1. Bar, F, or Sliding Clamp. Bar, F, or sliding clamps offer a wide clamp opening, making them perfect for a large project and woodworking. The handles are normally long, offering stability and enough traction for big projects.
What is common clamping?
1. Lever of Strap Clamps: This is the most popular clamping device used in workshops, and tool rooms of jigs and fixtures.
Why is clamping device necessary?
A clamping device holds the workpiece securely in a jig or fixture against the forces applied over it during on operation. Clamping device should be incorporated into the fixture, proper clamp in a fixture directly influence the accuracy and quality of the work done and production cycle time.
