Wire connectors come in different sizes and colors. The color indicates the size, quantity, and type of wires the nut can accommodate. The wrong size nut is one that is either too large or too small for the size and number of wires being connected.
What are the different size wire nuts?

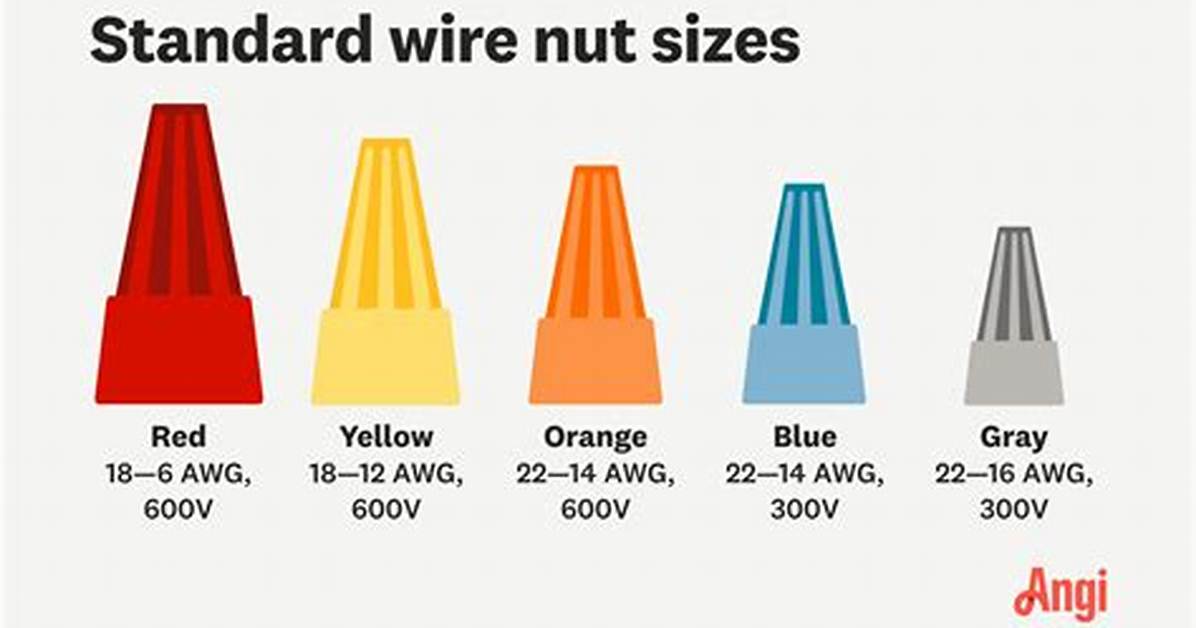

Orange Wire-Nut Commonly used with light or fan fixtures for connection to switch wire(s). Yellow Wing-Nut Commonly used to connect 2 #14 or 2 #12 wires. Tan Twister Commonly used to connect 2 to 3 #14 or #12 wires. Red Wing-Nut Commonly used to connect 3 to 4 #14 or #12 wires, or 3 #10.
How many 12 wires can you put in a wire nut?
This nut is typically color-coded to indicate its size. A gray wing-nut can be used to connect three or four #12 wires, while a blue wire ring can handle up to six 12 gauges. A red wing-nut is made to handle three to four wires, and it is the most common size. A blue wing-nut has a limit of twelve outlets per circuit.
Should I use electrical tape on wire nuts?
They are called wire nuts in the electrical trade, but the official name is “twist-on wire connector.” Wire connections were soldered together before they were invented and needed to be wrapped with tape to insulate the connection, but that era is long gone. No tape wrap is now necessary.
Can you use electrical tape instead of caps?
Electrical tape is the simplest method of making electric wires safe. You also use tape on capped live electric wires as an extra precaution. Tapes can be used on loose live wires that do not fit the cap. You can simply use tape over the live wire to fit into the cap.
Can you reuse wire nuts?
Wire nuts come in a variety of sizes to join different numbers and gauges of wire. Using the wrong size can make a loose connection or leave bare wire exposed outside the wire nut. Also, don’t reuse a wire nut. The spring inside the nut stretches in use, and used nuts don’t make as good a connection as new ones.
How many 12 gauge wires can you put in a blue wire nut?
These connectors are fa This review is for a 25 pack of Ideal 454 blue wing nut wire connectors. These connectors are fairly large and the specifications state they can handle a minimum of three 12 gauge wires and a maximum of one 6 gauge wires or two 8 gauge wires.
What does AWG stand for?
AWG (American Wire Gauge) is a U.S. standard set of non-ferrous wire conductor sizes.
Can you splice 4 wires together?
The answer is yes as long as you use the right size wire nut for the size of the wires that you are splicing. I have found that firmly twisting the stripped portion of the wires and then trimming the wires at the top will make a good splice and the wirenut goes on much better.
How many wires can I pigtail together?
The only appropriate way to wire a receptacle in a box with three cables is to use pigtails to connect the receptacles. Never connect more than one wire under a single screw terminal.
How many wires can you join in a junction box?
Choose the Right Junction Box
For example, the smallest 2-by-4-by-1-1/2-inch-deep box can comfortably splice only two cables (four or five conducting wires), while the largest 4-by-4-by-2-1/8-inch-deep boxes can handle as many as four to six cables (up to 18 individual conducting wires).
Why do people tape wire nuts?
Electrical Tape on Wire Nuts??
The reason given is that if a connection is loose, the tape may hold it together just enough to keep the wires close enough together to spark. If the tape were not there, the connection would more likely come loose, calling attention to the problem.
Are capped wires safe?
Yes. This is not only safe but best practice. Tuck the capped wires completely into the junction boxes to avoid accidentally snagging on passing ladders, wallboard, etc.
Can electrical tape melt?
In order to meet the requirements of industry standards, electrical tape is designed to be non-flammable, but it is often self-extinguishing, so it won’t burn but rather melt and deform when heated to temperatures above 176F (80C).
Can electrical tape catch on fire?
Can electrical tape catch fire? Although most reputable brands of electrical tape will have decent thermal properties (generally to cope with temperatures up to around 80 degrees Celsius), many varieties of insulation tape are indeed flammable if they’re allowed to get hot enough.
Can I wrap solder wires in electrical tape?
Electrical tape is OK, but most people don’t use good-quality tape. The best solution to cover soldered wires is heat shrink tubing, and it must be installed BEFORE the soldering is done. Once the solder has cooled, simply slide the tubing over the joint and use a lighter or heat gun to shrink it.
How do you cover exposed wires without electrical tape?
4 Ways to Insulate Wires Without Electrical Tape
Heat- Shrink Tubing. Heat shrink tubing, also known as heat shrink, is a shrinkable tube that shrinks when exposed to heat. Wire Nuts. They are also known as wire connectors or wire caps. Friction Tapes. Duct tape.
