It’s called a cripple wall because that section of the home is considered a “cripple zone” – in seismic events it was thought that homes should have an area that cripples/gives out so that the rest of the home would go undamaged.

How do you brace a cripple wall?

Cripple walls are braced by nailing plywood sheathing to the inside of the walls that surround the crawlspace. A licensed contractor can complete a retrofit for houses with cripple walls shorter than four feet, or a skilled homeowner can do it, following a standard plan set.

Do all crawl spaces have cripple walls?

Cripple walls are typically found on dwellings built prior to 1960. Many newer dwellings utilize concrete perimeter walls to elevate or level the dwelling. These are not cripple walls. A dwelling built on a flat concrete slab without a crawl space beneath it will not have cripple walls.

Do all homes have cripple walls?

Almost all Bay Area houses built before 1940 (and many built more recently) have cripple walls. Cripple walls are the short wood stud walls that enclose a crawl space under the first floor. Non-retrofitted or “unbraced” cripple walls are known to be vulnerable to damage and even collapse in earthquakes.

Are cripple studs load bearing?

In addition to their load bearing function, cripple studs maintain the uniform spacing of the wall studs upon which the interior and exterior wall coverings are attached.

Do you need cripple studs?

Like Shirlock says, they aren’t required for non-load bearing walls (hardly anything is since the wall isn’t load bearing), but as you remove parts like this, other details like the drywall and installing trim will become more difficult.

What is a cripple in framing?

Cripples are vertical framing members that support a sill or saddle. They are installed at points where a common stud would have stood if not for the window opening. Cripples provide support for the window and the sill it rests on.

How do I know if my house has cripple walls?

Go under the house through the crawl space, to see if there are any cripple walls. If there are cripple walls, check to see if they are braced. If you have neither of these, the cripple walls are probably insufficiently braced or unbraced. Horizontal or vertical wood siding is not strong enough to brace cripple walls.

What does a cripple wall do?

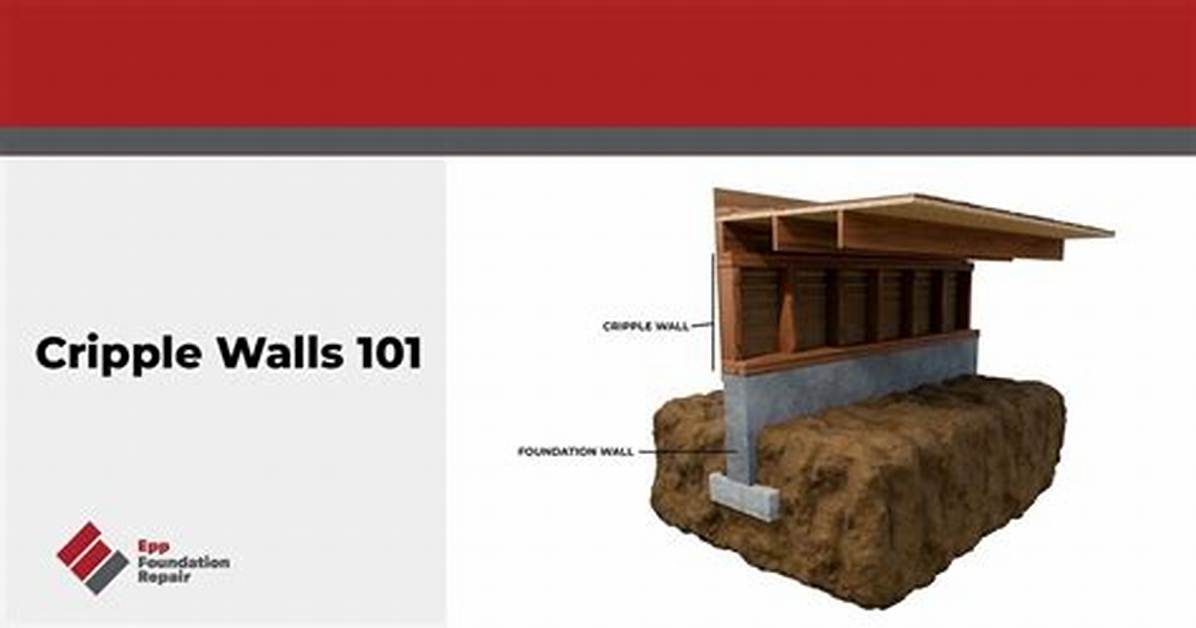

Some structures are built on cripple walls. As shown in the figure, a cripple wall is a short wall that rests on the foundation and supports the floor and exterior walls. If the cripple wall is not braced, it can shift during an earthquake.

Why is it called a cripple stud?

Both cripple studs and cripple rafters are made from the same stock as other studs and rafters—they’re just cut shorter. Trivia: The term “cripple” probably originated from the Old English crypel, meaning a person disabled from lack of use of a limb.

What is the height of a cripple stud?

For the purposes of this section, cripple walls having a stud height exceeding 14 inches (356mm) shall be considered a story and shall be braced in accordance with Table 2308.9.

What is rough opening size?

Framing rough opening sizes are really quite simple. Just add 2″ to the width of the actual door size. You should add 2-1/2″ to the height of the actual door. This will give you room to space the door frame off of the sub-floor. Now all you need to know is how to properly frame your door rough opening.
