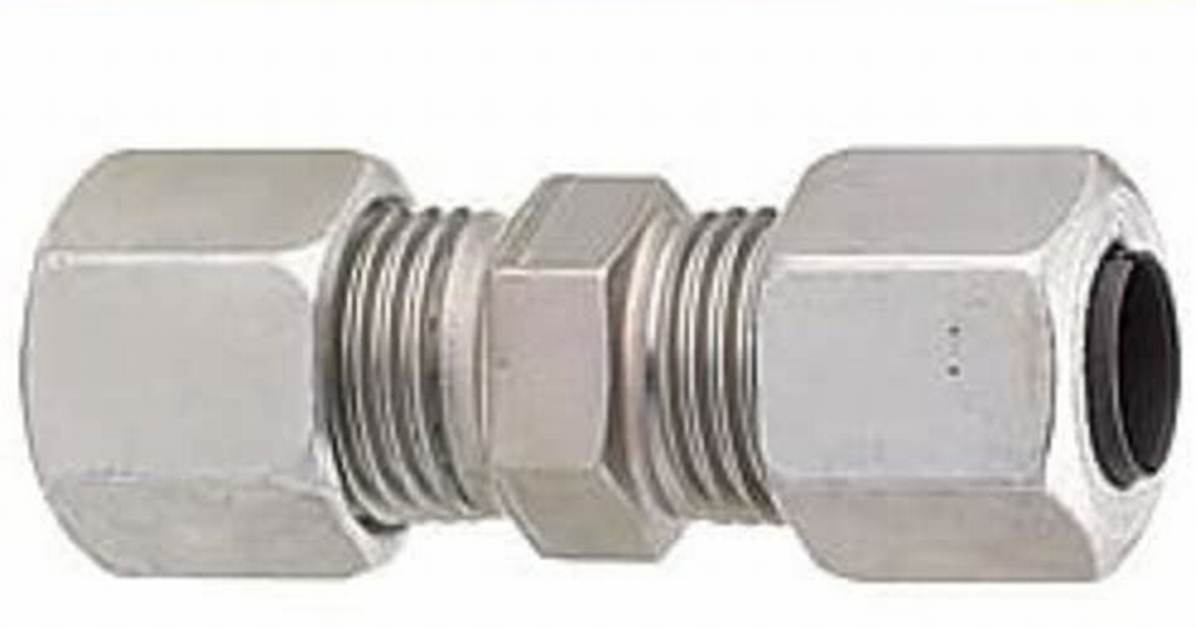

A union is a threaded fitting which allows the pipe work to be separated and reconnected without any horizontal movement in the pipe. It can be a standalone pipe fitting connecting two pieces of pipe, or an integral part of another fitting (such as a ball valve) which allows it to be separated.
What is the difference between coupling and union fitting?
The basic difference between a coupling and a union is that coupling is for joining pipe to pipe or pipe to a swedge and the union is made for joining and disassemble a part of a piping system (a steam trap or control valve, etc) for maintenance or replacement. The use of couplings or unions is not a code issue.
What is Union joint?
: a joint (as between pipes) formed by means of a union.
What are unions in piping?
A pipe union is a secure and semi-permanent connection between two pipes. Most pipe unions consist of two pipes connected together via a third piece.
What is the difference between socket and union?
Couplet or socket — To connect two pipes. Union – To connect two pipe connection. Generally both item have same function to connect pipes.
Does a union have a flow?
Actually, pipe unions are designed to flow from the Female Nut towards the Male threaded half. Nobody pays attention to it and it normally will not cause a problem, however they should be installed properly when in High Pressure High flow service.
How does a union connector work?
A union is used when you are trying to join two pipes together that are fixed, thus unable to be turned. A union is very similar to a coupling, except that it can be unscrewed into two separate pieces and then screwed back together when both separate ends are attached to the two pipe ends that need to be joined.
What is socket pipe?
A socket is a fitting that simply goes over the end of a pipe. A 1″ socket end will fit on a 1″ pipe. These are extremely common. Many PVC couplings have socketed ends. A commonly used abbreviation for “socket” is “soc.”
Are PVC compression fittings reliable?
Although compression fittings are generally considered more reliable than threaded fittings, there are some potential problems. In general, compression fittings are not as resistant to vibration as soldered or welded fittings. Repeated bending may cause the ferrule to lose its grip on the tube.
What is union join in SQL?
The UNION operator is used to combine the result-set of two or more SELECT statements. Every SELECT statement within UNION must have the same number of columns. The columns must also have similar data types. The columns in every SELECT statement must also be in the same order.
How do you install a union pipe thread?
Thread the male half of the union nut onto the left-side pipe, and tighten it securely. Slip the ring nut portion of the union onto the right-side pipe with the threads facing outward. Thread on the other half of the union nut, and tighten it securely.
What is Union socket?
PVC unions and PVC pipe union connectors are pipe fittings designed to connect two pipes together without the use of a sealant or traditional glued coupling.
What does a PVC union do?
PVC unions are often used in building temporary structures, such as tent supports, and can be taken apart when the structure is no longer needed. They feature a ring in the center that separates the two ends from each other, allowing for easy deconstruction and maintenance.
