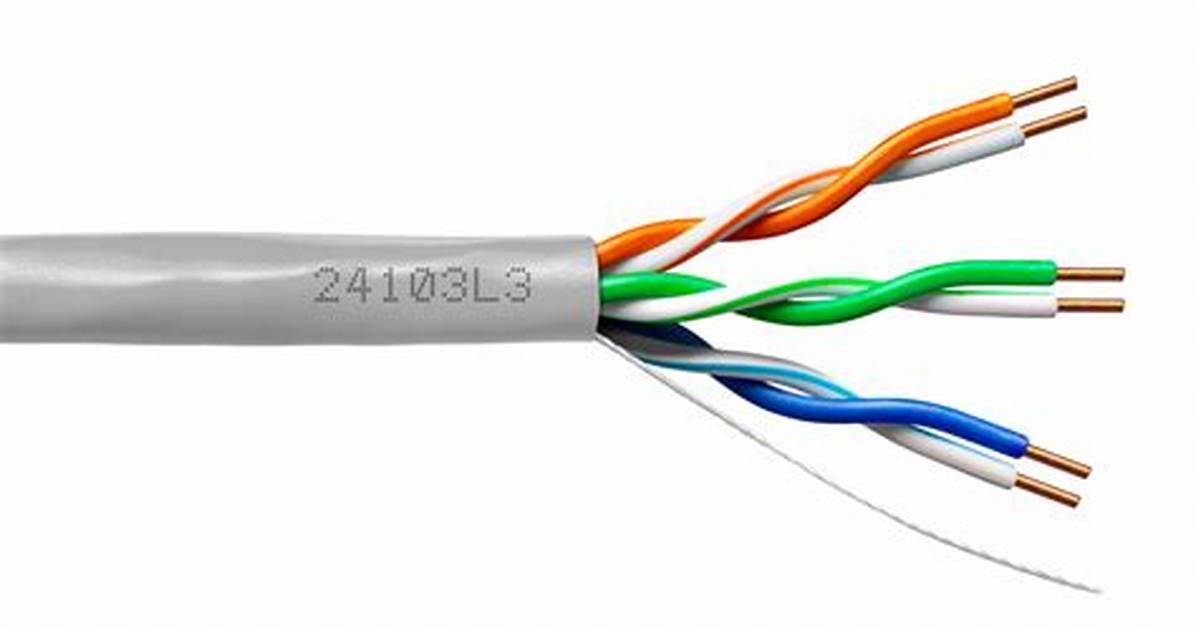

A Category 3 cable (Cat 3 cable) is a type of unshielded twisted pair (UTP) cable that is used for voice and data communications in computer and telecommunication networks. It is an Ethernet copper cable defined by the Electronics Industry Alliance (EIA) and Telecommunication Industry Association (TIA).
Can Cat3 be used for Ethernet?
Ethernet can work on Cat 3 cable
If possible you punch down all 8 wires, but if the cable only has 4 wires, you can get by with wires 1, 2, 3 and 6. You have to put the wires in the right places. Ethernet has 4 versions: 10 megabit, 100 Mbit, 1000 Mbit and 10,000 Mbit.
What is the difference between Cat3 and Cat5 cable?
Cable Speed
Cat3 cable features a 10 megabits per second (Mbps) transfer rate, operating at 16 megahertz (MHz). Cat5 cable offers a 100 Mbps transfer rate, operating at 100 MHz, making it effectively 10 times faster than Cat3. However, those are optimal speeds in an ideal setting.
Is Cat3 Same as phone line?
Cat 3 is currently still in use in two-line telephone systems as Millions of Homes and Offices are still wired with CAT3 for Voice and Technically, the trunk and distribution cable used by the Telephone company to get to your home or office from their Central Office is CAT3 as well.
When was Cat 3 cable used?
Cat 3 was widely used in computer networking in the early 1990s for 10BASE-T Ethernet and, to a lesser extent, for 100BaseVG Ethernet, Token Ring and 100BASE-T4. The original Power over Ethernet 802.3af specification supports the use of Cat 3 cable, but the later 802.3at Type 2 high-power variation does not.
What gauge is Cat 3?
Both Cat-3 and Cat-5 cables are comprised of four twisted pair, for a total of eight 24- gauge copper wires. Both cable standards are unshielded, and both have an outer sheath stamped as certified Cat-3 or Cat-5.
Can you run PoE over Cat3?
Standard PoE is supposedly supported over Cat-3 as well (PoE+ is not). We have gone through and certified most of the lines (10 out of 16 – the remainder require a lift), and all of them have passed certification.
Can you convert Cat3 to Cat5?
Indeed as already mentioned there is no way of converting Cat3 into Cat5 or Cat5e. If fact, Cat3 is totally different than Cat5. HOWEVER, you may get similar speed using Cat3s as Cat5 under 100MB. Over it is almost impossible.
How do I know if I have a Cat3 cable?
Also if you can see part of the cable where it comes into the patch, the Cat “version” is usually stamped on the side of the cable. Tvolt – I’ve seen a *lot* of 4-pair Cat3. Your best bet cheaply is to look at the cable.
How do I know if my cat is 5 or 5e?
Easiest way to tell cat5 and cat 5e apart is to look at the number of twists in the green pair. If the green pair has the same number of twists as the orange and blue pairs, then it’s cat5e, if it has the same number of twists as the brown pair, then it’s cat5.
Should you use Cat 3 cabling as a substitute for Cat5e?
Should you use Cat 3 cabling as a substitute for Cat 5e cabling to finish the project? No. Cat 5e cabling has more twists per inch than Cat 3 cabling, reducing cross-talk and supporting higher data rates.
How many pairs are in Cat 3 cable?
Cat3 Solid Multi Pair Cable – is sold in pairs of 2, 3, 4, 25, 50, 100. This means that within the CAT 3 cable there are 2 to 100 pairs of a solid cable.
What is 3 pair wire?
CAT3 Telephone Cable (UTP) stands for Unshielded Twisted Pair cable designed to reliably carry data up to 10 Mbit/s, with a possible bandwidth of 16 MHz. It is part of a family of copper cabling standards commonly used everyday that also includes CAT5, CAT5e and CAT6.
What do the different colors on telephone wires mean?
It only takes two wires to connect a phone, but most house wiring contains four wires. The red and green wires are on the two center terminals of a normal phone jack, and the black and yellow wires are on the two outer terminals. This arrangement allows most normal houses to handle two phone lines very easily.
How do you wire a Cat 3 phone jack?
How to Match Cat 3 Wire to a Phone Jack
Open your phone jack. Identify the color codes in the phone jack. Strip two inches off the outer jacket of the end of the Cat 3 wire with a wire stripper.Strip one inch off the jacket of each inner wire within the Cat 3.
How far can I run CAT 3 cable?
CAT 3 cables can at most meet the requirements of 10BASE-T Ethernet (10 Mbps data rate) and have a maximum cable distance of 328 feet (including patch panel connections).
When did Cat 4 come out?
This specific category of Ethernet cable was produced in the mid to late 80s and is no longer used in new installations of network set-ups. Cat4 cables were used for Token Rings. Token Ring networks were invented in 1984 and by 1989 communities widely used them to communicate and connect to a network system.
What does UTP mean?
UTP stands for Unshielded Twisted Pair. In the mantle of a UTP cable you will find eight separate wires. All the wires are twisted in four pairs. A connector can be placed on the end of these cables.
