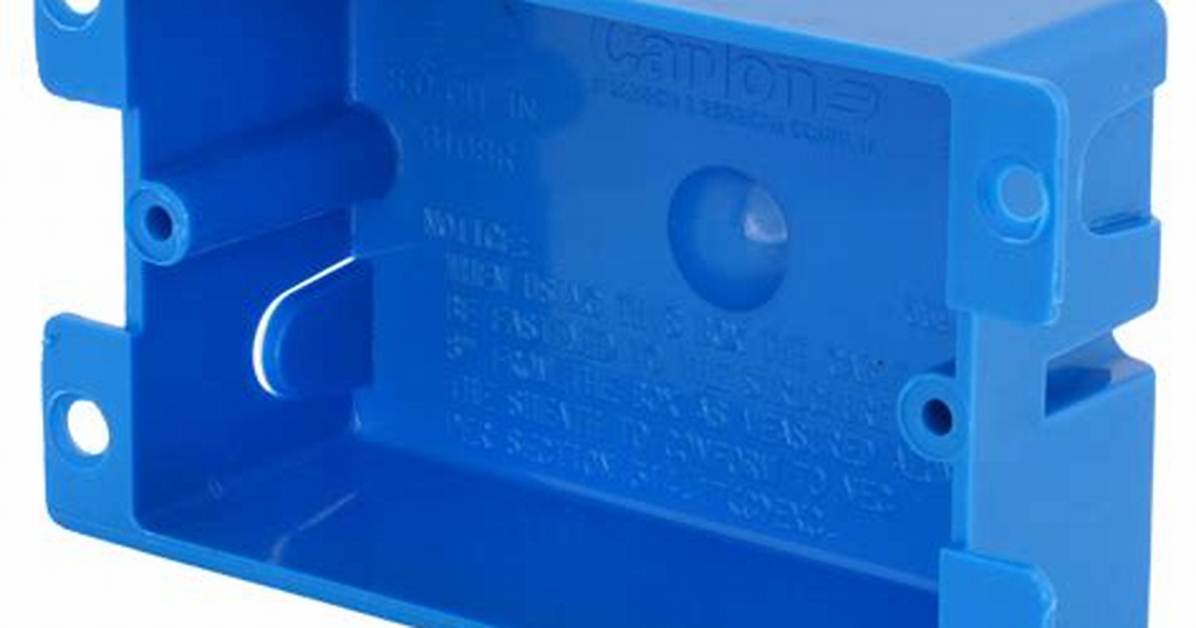

New work boxes, designed to be installed just after the wall is framed but before the surfaces are finished with drywall. They attach to studs. Old work (also called retrofit) boxes, designed to be installed after the walls are finished and are used during remodeling projects. They attach to drywall or plaster.
Can I use old work box for new work?
it can be used for both old work (cutting a hole and installing in an existing finished wall) or for new work (installing in the studs before the drywall or other wall finish is applied).
How do you get rid of old work boxes?
Cut a hole around the box with a drywall saw if it isn’t a remodeling box. Make the hole dimensions 2 or more inches bigger than the box so you can access the nails holding the box to the wall. Pull out the nails with a pry bar or pliers and remove the box.
What is a 1900 box?
A 1900 Electrical Box is defined as a standard 4 inches (4”) square electrical switch box which is the combination of a gas and electrical box. It is the most commonly used box when a simple switch box is not big enough.
How do you rewire an old house without removing drywall?
Tips For Rewiring a House Without Removing the Drywall
One solution is securing the cable to joists or rafters using wire staples. The electrician needs to make sure that each wire is perfectly anchored to the appropriate device electrical box using the correct clamp.
Why do I need a junction box?
A junction box is an enclosure that protects a connection (the junction) of two or more wires carrying electrical current. This level of protection is needed to prevent fires and to maintain solid, reliable connections that stay tight over many years.
How much weight can an old work ceiling box hold?
How heavy of a light fixture or ceiling fixture can a listed ceiling box support? A ceiling box can support a fixture of 50 pounds or less. A ceiling box rated for “fan support” can support a fan of 35 pounds or less.
What is the difference between old work and new work in electrical installation?
Old-Work Box – Also called remodeling boxes, old-work boxes have clamps built into them, so they can hang on to existing drywall. These are ideal for installation after a drywall has already been hung. New-Work Box – New-work boxes are installed by mounting them directly to joists or studs.
Can you screw an electrical box to a stud?
Electrical boxes typically are mounted to the sides of studs for stability. Whether nailed to the studs or screwed in with adjustable brackets, boxes on studs tend to stay in place for a long time.
Can you screw through the side of an electrical box?
314.23(B)(1) Nails and Screws.
Nails and screws, where used as a fastening means, shall secure boxes by using brackets on the outside of the enclosure, or by using mounting holes in the back or in a single side of the enclosure, or they shall pass through the interior within 6 mm (1∕4 in.)
How do I remove a blue junction box from the ceiling?
Wedge a small, flat pry bar or slotted screwdriver between the box and ceiling joist to remove.Apply steady pressure to the tool to pry the box away from the ceiling joist.Remove the box from the ceiling once it is detached from the ceiling joist.
What is a 2100 box?
Top Definition
This electrical box is slightly larger than the standard 1900 or 4″ box. Called a 5″ box because of its 4-11/16″ size, it is used for a wide variety of applications where heaver cables are needed or bulky wiring devices require a higher volume box.
What is an 8b box?
4″ octagon outlet box 1-1/2″ deep or 2-1/8″ deep and varying K/O sizes.
Why is it called 1900 box?
Top Definition
This electrical box is usually called a 1900 Box because that was the original part number from Bossert almost a hundred years ago. It is the most common box used when a simple SwitchBox is not large enough.
