noun. trademark engineering a taper that is one of a standard series used in the shank of tools to fit a matching taper in the mandrel of a machine tool.
What is Morse taper ratio?
The taper ratio of morse taper is found at 1:10 and its included angle is available in 3° or 5/8 inch/foot. Morse taper is mostly used in lathe machines ds nose spindle, drill shank, arbor, etc.
What is a Morse taper sleeve used for?
Morse Taper drill sleeves are used as reduction or sizing up of Morse taper tooling. Most common Morse taper tooling is taper shank drills, also Morse taper reamers and other HSS cutting tools. The Morse taper drill sleeves are hardened steel, internally and externally ground.
What is the difference between a Morse taper and a Jacobs taper?
JT33 fittings are a simple press/ friction fit. Morse Tapers, by contrast, have a threaded hole in the arbor for a screw or drawbar to positively retain the arbor. Jacobs Tapers are made for low-vibration drilling operations.
How many degrees is a Morse taper?
The taper angle of the Morse taper varies somewhat with size but is typically 1.49 degrees (around 3 degrees included). Some modular orthopedic total hip implants use a Morse taper to mate components together.
How do I know what Morse taper I have?
Morse Tapers (MT) may be identified either by measuring the large, or the small diameter, the length, or the taper per inch. On the female MT (usually in a machine spindle) it’s difficult to measure the small diameter, the length, or the taper since it’s inside the spindle.
What is the difference between #1 and #2 Morse taper?

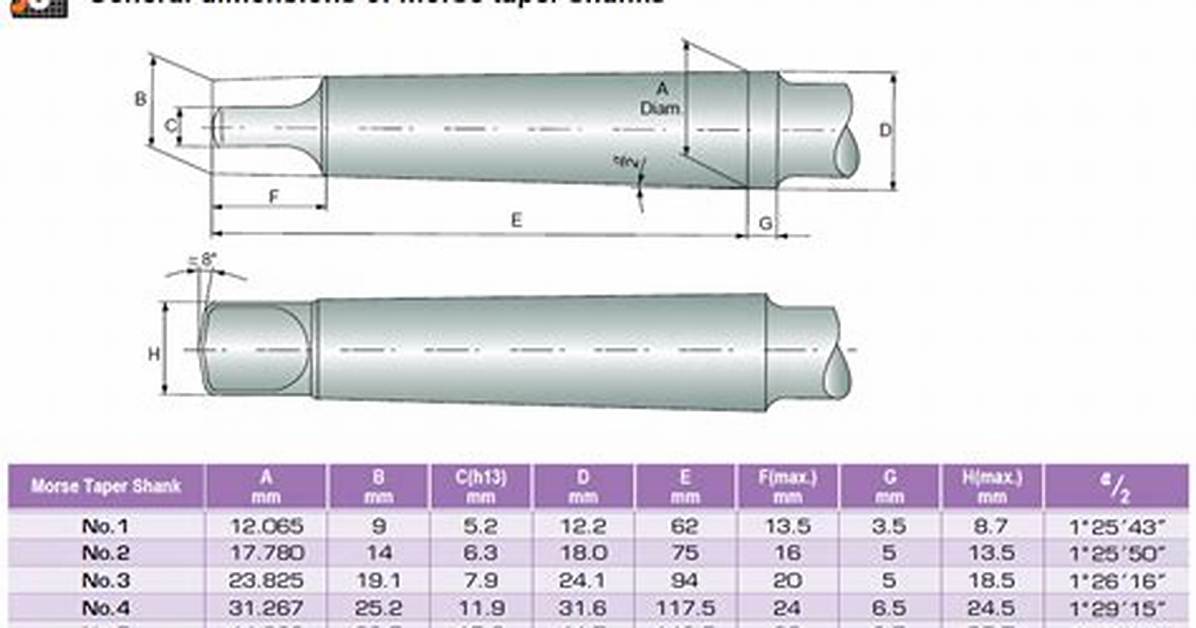

# 1 Morse Taper is 0.369 on the small end going up to 0.475 over a 2 9/16” taper length. #2 Morse Taper is 0.572 on the small end going up to 0.700 over a 3 1/8” taper length. Number 2 Morse taper is the most common size used with woodworking lathes. 2 of 2 found this helpful.
What is a 1/20 taper?
It is a reduction in 1mm in radius for every 20 mm of length of shaft.
What is spindle taper?
The spindle taper is the area inside of the spindle. A spindle taper that is dirty, damaged, or not aligned decreases cutting accuracy and causes an unsatisfactory surface finish.
When was Morse taper invented?
The Morse Taper was invented in 1864 by Stephen A. Morse, an enterprising mechanic, who developed it to reliably join two rotating machine components.
How do tapers lock?
In a self-locking holder, the included angle of the cone is small (the cone seems sharp). These devices are sometimes called shallow-taper holders; when a tool is inserted into the spindle nose, friction and other forces are sufficient to hold the tool in the spindle and to transmit the forces and torques.
What is a Brown and Sharpe taper?
The Brown & Sharp taper is used on cutting tools including end mills and reamers. The taper is approximately ½ inch per foot for all sizes except for taper #10 which is . 5161 inches per foot. Brown & Sharpe taper sockets are specified on arbors, collets, and machine tool spindles.
How do you identify a Jacob Taper?
Jacobs taper refers to a specific tapering of the shank on the tool bit that you insert into the machine. This type of taper is the self-holding variety, which means the male end wedges into the female without needing a drawbar. This keeps the tool bit in place even when the machine is idle.
What is the difference between a jt3 and a jt33 taper?
Diameter of the taper and length of a jt3 is larger than that of a jt33. Do you find this helpful? Do you find this helpful?
Where is Morse taper used?
A Morse Taper is a tapered spindle used on lathes and drill presses to mount tooling. Morse Tapers on the headstock of your lathe have a hollow housing that is designed to fit a male ended arbor. When spinning, the arbor is forced farther into the housing, increasing the surface pressure between the two metal parts.
