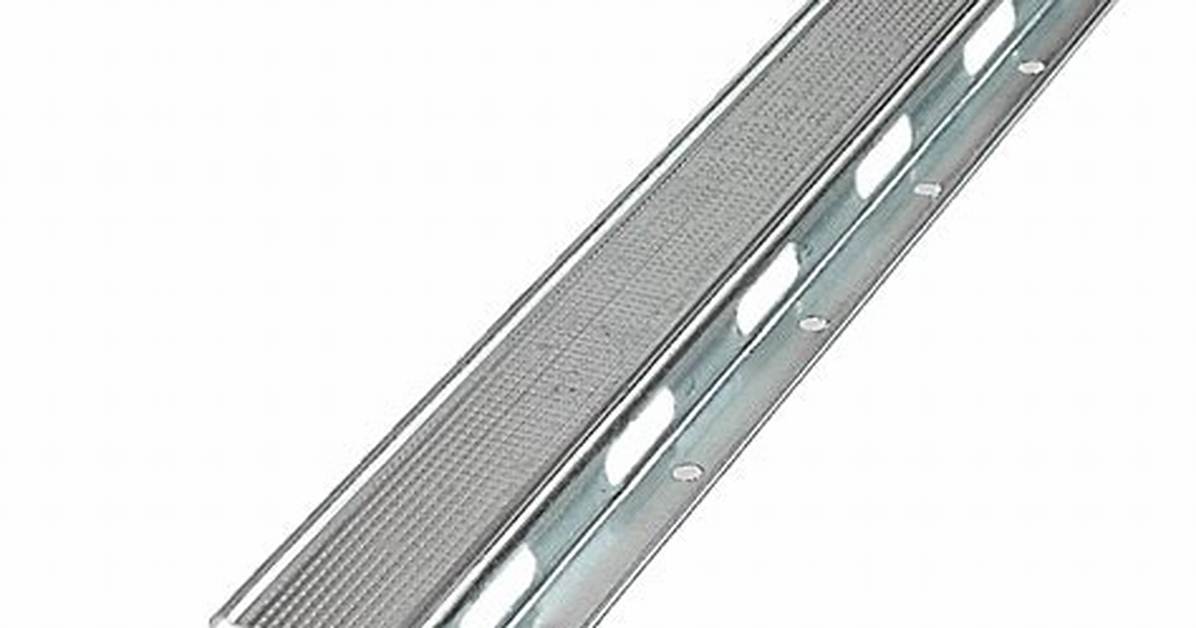

Resilient Channels, sometimes abbreviated as RC or Z Channel, are some of the most common components installed on projects requiring additional soundproofing (higher STC ratings).
What is the purpose of RC channel for drywall?
The resilient channel dampens sound waves effectively, dissipating the energy and reducing sound transmission by suspending gypsum wallboard 1/2″ from the stud or joist.
When would you use an RC channel?
If you are planning to install any additional layer on top of the existing wall the best solution is to use the resilient channel. It separates the existing wall with any additional layer installation, so in between this it can create a decoupling zone where the noise or soundwaves can be trapped easily.
What does 4 channel mean on RC?
Channel Number. In the radio control hobby the word channel, which you’ll see a lot, has two completely different meanings. A typical 4-channel rc airplane will have motor, ailerons, elevator and rudder control; the four primary rc airplane controls.
Are RC channels worth?
Advantages of Resilient Channels:
Installing RC channel can be easily done at the time of basement finish or remodel, and is not cost-prohibitive or time-intensive. Sound Transmission Class ratings determine the ways in which various materials reduce sound waves. RC channel has a high STC rating.
Can I use drywall screws for resilient channel?
drywall board to the resilient channel use 1” (25 mm) Type S Buglehead screws every 12” (305 mm). Screws should not come in contact with the stud, joist or truss. A maximum of two 5/8” (15.9 mm) boards should ever be fastened to resilient channel.
Can I installing resilient channel over existing drywall?
It should be noted that adding resilient channels to an existing wall (over the existing gypsum) will not increase STC values. There is not enough space between the old and new gypsum for RC to work effectively. A variety of fiberboard-based products have been used to achieve better STC values.
How hard is it to soundproof a room?
It’s possible to completely soundproof a room, but you’ll need to address the source of the sound, its entry point, and its reflection points. Depending on these factors, you may use a sound booth, acoustic panels, acoustic foam, curtains, and/or window treatments to block incoming noise.
Can you use resilient channel on a ceiling?
Resilient channel should be installed on Cathedral Ceilings (single or double angled ceiling) with the center of the face of the channel 6 inches from the top to permit a floating angle wallboard installation. Resilient channel must be installed with mounting flange down.
Where are resilient channels used?
To install resilient channels on wood- or metal-framed walls, one should attach resilient channels with the attachment flange down—except at floor level, where it should face up—and at right angles to the wall studs.
How thick is RC channel?
Resilient channel is available in 18 and 30 mil thicknesses (25-20ga.). Standard channel lengths are 12 foot long.
Can resilient channel hold 2 layers of drywall?
A maximum of two layers of gypsum board may be installed over a resilient channel. For single layer applications, the fasteners should be 1-inch type S bugle head screws, and 1 5/8-inch type S bugle head screw for double layer applications.
What is the difference between resilient channel and hat channel?
Unlike a resilient channel that you attach to the framing, a hat channel is connected to studs or joists through legs or brims. A furring channel or a hat channel is a framing piece that resists corrosion. Its primary purpose is to fur out walls in ceiling and masonry projects.
How far apart do you install resilient channel?
up to accommodate fastening. (highest) row of resilient channel should not be more than 6” from the ceiling (measured from the ceiling to the center of the resilient channel face). Spaced at 24” o.c. spaced at 16” o.c.; and at 16” o.c. for joist spaced at 24” o.c.
What is a 2 channel RC?
Most RC car radios have two channels, because a car has two functions to control: steering and throttle. Steering is “channel 1,” and throttle is “channel 2.” Some radios have three channels and are typically used with cars that have reversing transmissions; the extra channel operates the transmission.
What is a 2 channel radio?
Surface radios or transmitters are also called “pistol-grip radios,” as they are held similar to a pistol. They can easily be categorized by the numbers of channels they are capable of controlling. The most basic RC vehicles require 2 channels: one for steering and another for throttle.
What does 3 channel RC mean?
The third channel is used to control the speed and direction of another motor mounted on the tail boom with a small fan blade. This motor/fan is positioned vertically to pitch the helicopter forward or backward so it can move in those two directions.
