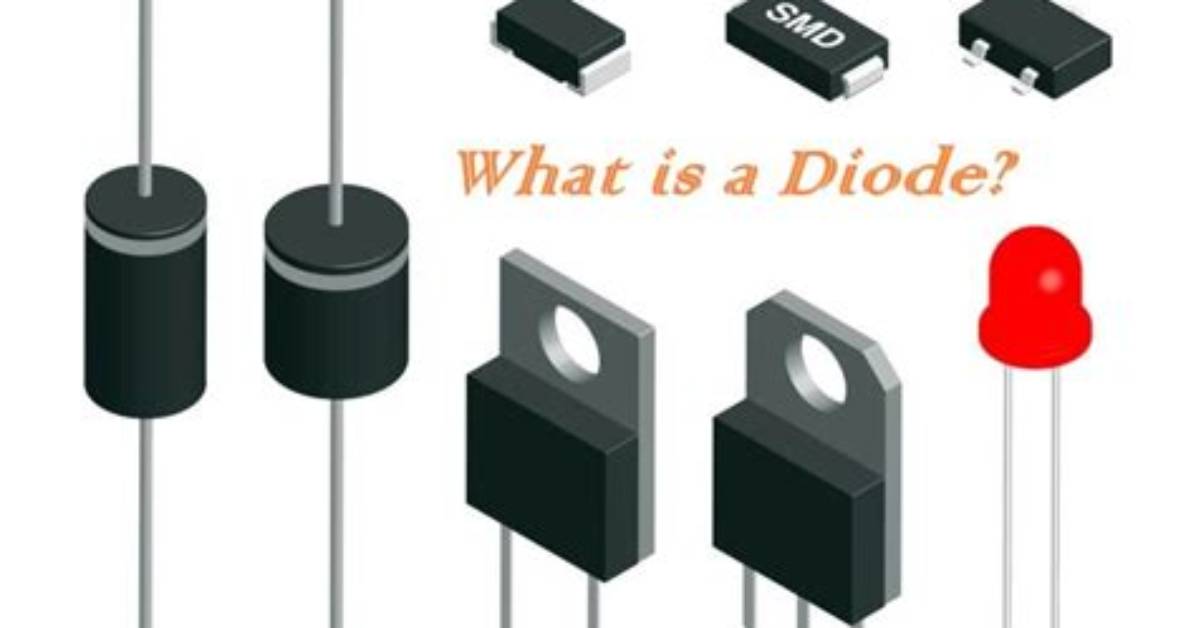

diode, an electrical component that allows the flow of current in only one direction. In circuit diagrams, a diode is represented by a triangle with a line across one vertex.
What are the 3 main uses of diodes?
Some of their most common applications include turning AC to DC, isolating signals from a supply, and mixing signals. A diode has two ‘sides’ and each side is doped differently.
What does a diode do to voltage?
A forward-biased diode conducts current and drops a small voltage across it, leaving most of the battery voltage dropped across the lamp. If the battery’s polarity is reversed, the diode becomes reverse-biased, and drops all of the battery’s voltage leaving none for the lamp.
Why do we need diode in a circuit?
The most common function of a diode is to allow an electric current to pass in one direction (called the diode’s forward direction), while blocking it in the opposite direction (the reverse direction). As such, the diode can be viewed as an electronic version of a check valve.
How does current flow in a diode?
When we connect a voltage source to a diode so that the positive side of the voltage source links to the anode and the negative side connects to the cathode, the diode acts as a conductor, thus allowing current to flow. When we connect voltage to a diode in this direction, we call it forward-bias.
Can a diode be used in an AC circuit?
Diodes are used to rectify and clip AC signals. An AC generator produces a sinusoidal voltage (with zero DC offset) because of its rotation. You can use diode circuits to prevent this voltage from reversing polarity; this process is called rectification and is a step towards AC to DC conversion.
Does a diode have polarity?
Diode Polarity & Symbols
Diodes are polarized components, meaning that they have a very specific orientation that they need to be connected in a circuit to work correctly. On a physical diode, you’ll notice two terminals extending from a tin can shape in the middle. One side is the positive terminal, called the anode.
Can diodes work on DC?
Note: Hence diodes are mainly used to rectify AC to DC Current and do this by passing the positive part of the wave only. Thus with the arrangement of several diodes in the form of a bridge rectifier, without any interruption, DC may be obtained.
Can a diode act as a switch?
Yes, diodes can act as a switch.
How do diodes work in a DC circuit?
A diode used to open and close a power circuit like a switch. It turns ON when voltage is applied in the direction of power flow, and turns OFF when voltage is applied in the direction where power does not flow.
What is voltage breakdown?
Breakdown voltage is the threshold voltage at which the initiation of breakdown occurs. However, before current can flow, the open gap voltage increases until it has created an ionization path through the dielectric. Once the current starts to flow, voltage drops and stabilizes at the working gap level.
Where are capacitors used?
Capacitors are devices which store electrical charge. They are a basic component of electronics and have a host of various applications. The most common use for capacitors is energy storage. Additional uses include power conditioning, signal coupling or decoupling, electronic noise filtering, and remote sensing.
How do you say this word diode?
Tips to improve your English pronunciation:
Break ‘diode’ down into sounds: [DY] + [OHD] – say it out loud and exaggerate the sounds until you can consistently produce them.
How do you know if a diode is on or off?
If the voltage across a diode is negative, no current can flow*, and the ideal diode looks like an open circuit. In such a situation, the diode is said to be off or reverse biased. As long as the voltage across the diode isn’t negative, it’ll “turn on” and conduct current.
Which way should a diode face?
The arrow indicates the positive side of the diode, while the vertical bar indicates the negative side. You can think of it as the positive side flowing into the negative side, with the arrow indicating the direction of the flow.
What is inside a diode?
A diode is a specialized electronic component with two electrodes called the anode and the cathode. Most diodes are made with semiconductor materials such as silicon, germanium, or selenium. Some diodes are comprised of metal electrodes in a chamber evacuated or filled with a pure elemental gas at low pressure.
