There are a couple of ways to remove a compression ring, however none of them are easy. We recommend using a tool designed specifically to remove compression rings, which is like a bearing puller. It fits behind the compression nut and grips it, then your turn the toggle nut till the nut and ring come off the copper.
Can you reuse a compression fitting?
In compression fittings, there are three main fittings which include, the compression ring, compression nut and compression seat. They are safe to be reused and apply to half the movement of the pipe outward from the fitting.

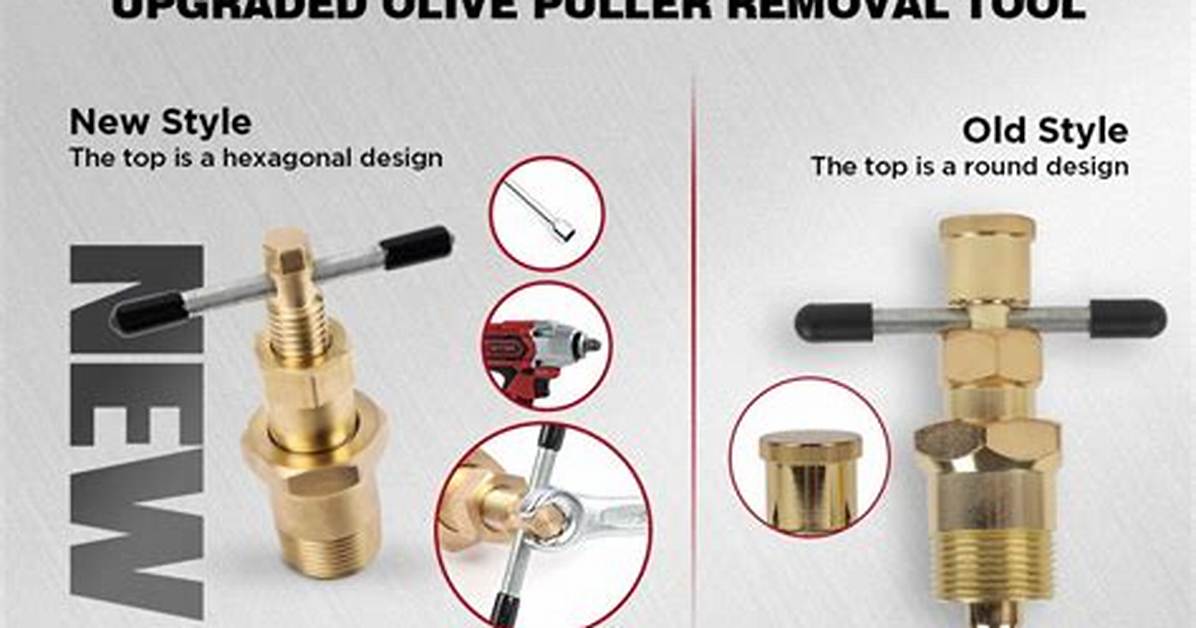

How do you use olive removal tool?
Removing 15mm olives
Step 1 – Insert spindle. Insert the spindle into the 15mm body. Step 2 – Retract spindle. Step 3 – Fit olive puller onto pipe. Step 4 – Screw body into compression fitting. Step 5 – Rotate spindle. Step 6 – Unscrew nut. Step 7 – Remove olive puller. Step 8 – Remove olive.
Should you use Teflon tape on compression fittings?
DO NOT use Teflon tape under the compression nut or on flare threads of brass compression fittings (or a compression fitting of any other material)! Liquid or gas does not touch those threads.
How do you remove stop end compression?
Turn the compression nut counterclockwise relative to the male part of the fitting with another pair of adjustable pliers. When you are removing a shutoff valve, this means turning the nut clockwise with respect to you. Once the nut is loose, unscrew it by hand until the fitting separates.
Can you reuse compression ferrule?
If it hasn’t been tightened many times, it should be okay to reuse. Clean off the mating faces thoroughly and don’t use tape, putty, or anything else. And don’t be gentle tightening: The seal is formed by forcing the surfaces together and “bending” them to mate.
Can you replace a compression fitting?
Generally you can reuse the compression seat and the compression nut unless they are damaged or otherwise compromised. But you must always replace the compression ring with a new one whenever you use a compression fitting.
What is a compression sleeve in plumbing?
A compression fitting compresses a component of the fitting into another component, usually some type of tubing, to create a watertight seal between two different lines.
What is a sleeve puller?
Manual Sleeve Puller Set: This manually operated, screw-powered device removes cylinder sleeves from most truck, bus, and tractor engines. Adapter plates (not included in the set) accommodate a wide range of bore sizes. The puller enables one technician to handle sleeve-pulling tasks.
Why is faucet handle hard to turn?
Faucets become hard to turn due to the buildup of mineral deposits or problems related to the faucet’s cartridge.
What happens when you over tighten a compression fitting?
This, in turn, will constrict flow and thin the wall of the tubing. Subsequently, this increase of local pressure and weakening of the tubing will cause compression fittings to catastrophically release the tubing.
How do you fix a leaking compression fitting?
Slide the ring down to the compression seat and apply pipe thread compound. Slide the nut to the fitting and hand tighten clockwise. Hold the fitting with one wrench and with another wrench tighten the nut until resistance is felt, then tighten it another 1/4 turn. Turn the water back on and check for leaks.
Why are my compression fittings leaking?
Over tightening a compression fitting can also cause the fitting to leak. When tightening up the compression fitting, only turn your tool until you feel resistance. From there, you shouldn’t turn it anymore than a half a turn. By doing this, you can ensure you’ll prevent your compression fitting from leaking.
