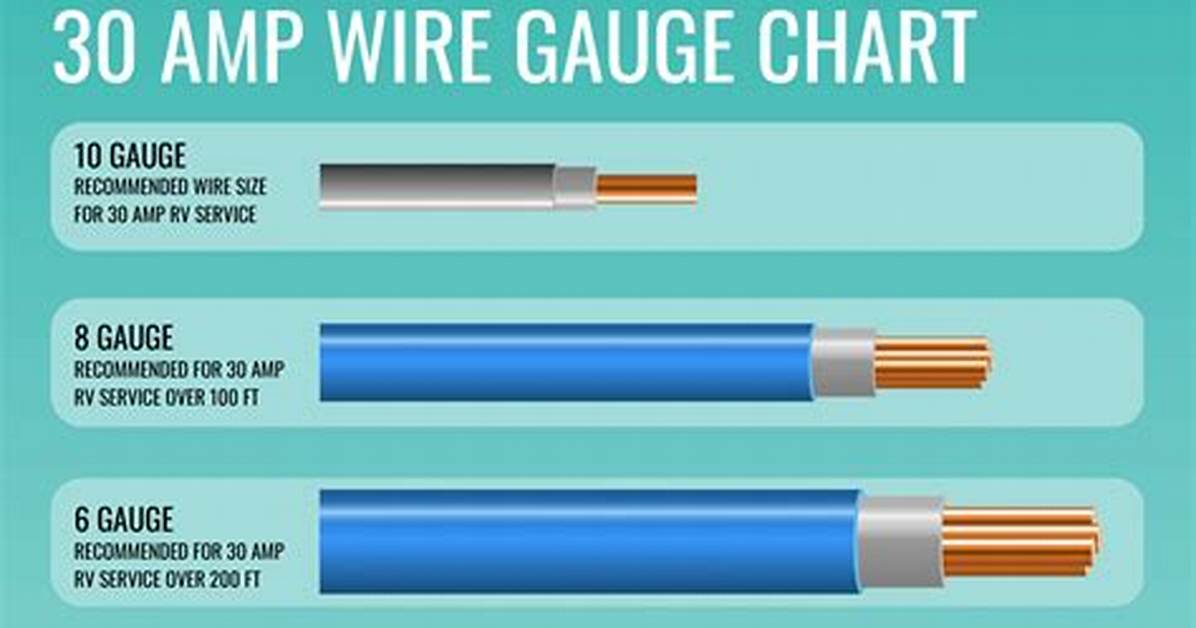

30 AMP Wire Size
For a maximum of 30 amps, you’ll need a wire gauge of 10. The most common household item that requires a 30 amp circuit is a central air conditioner. Often, people living in RVs use 30, and sometimes 50, amp systems to run all the appliances in the vehicle.
How far can you run 10 gauge wire for 30 amps?
10-gauge wire can accommodate a 30-amp breaker until you reach 150 feet. At 150 feet or more, you should get 8AWG or 6AWG wire.
Will a 12 2 wire carry 30 amps?
Can You Use a 12-2 AWG for 30 Amps Circuit. Yes, based on the National Electric Code or NEC, you can use 12-2 AWG cables for THHN or THWN-rated wires. These cables are made for general purposes and can hold up to 194 degrees without taking any damage.
How far can you run 8 gauge wire for 30 amps?
For 30 amp service 100 feet away you would need a wire that can handle at least 45 amps. Luckily, the #8 AWG wire has a 50A ampacity. You can use the #8 AWG wire for sub panel 50 feet, 100 feet, and even 150 feet away.
Will 6 gauge wire fit in a 30 amp breaker?
“Twelve-gauge wire is good for 20 amps, 10-gauge wire is good for 30 amps, 8-gauge is good for 40 amps, and 6-gauge is good for 55 amps,” and “The circuit breaker or fuse is always sized to protect the conductor [wire].”
Can I run 8 gauge wire on a 30 amp circuit?
According to NEC, 8-gauge copper wire can handle a maximum of 40-55 amps while 8 gauge aluminum wire can handle a maximum of 30-45 Amps.
What size wire do I need to run 300 feet?
for 300 feet for 100 amp rated service I would use Aluminum direct burial 1/0-1/0-1/0-1/0, the forth can be as low as #4 for the ground (but also in conduit, even if in conduit must still be rated underground wire and required by code also) Also note the size wire the breaker can handle, cannot cut strands to make fit,
What is 10 2 Romex used for?
NM-B is primarily used in residential wiring as a branch circuit for switches, outlets and other loads. NM-B may run in air voids of masonry block or tile walls where locations are not damp.
How much can you run off a 30 amp breaker?
30-amp 240-volt circuit: 30 amps x 240 volts = 7,200 watts.
Can 12 gauge handle 30 amps?
Can You Use a 30-Amp Breaker On 12-Gauge Wire? You should not use a 30-amp circuit breaker on a 12-gauge wire. The circuit breaker installed on a circuit is of a specific size to protect a certain wire gauge. A larger breaker on a thinner wire will allow more current over the wire before tripping.
How far can I run 12 2 wire?
You can run a 12 gauge wire up to 70 feet on a 15 amp circuit. That number drops to 50 feet if you run 12 gauge wire on a 20 amp circuit.
How many outlets can be on a 30 amp circuit?
The NEC states that you can only have 30-amp receptacles on a 30-amp circuit.
Which is thicker 8 gauge or 10 gauge wire?
The general rule of thumb is that the smaller the gauge number, the thicker the cable.
Does 10 3 have a ground?
It does not include the ground wire. So, a 10/3 cable has red-insulated “hot” wire, a black-insulated “hot” wire, a white-insulated neutral wire, and a green-insulated or bare copper ground wire.
What size wire do I need for a 30 amp double pole breaker?
In the breaker panel it’s hooked up to a 30-amp double pole breaker with #12 wire. Inspector notes that #10 wire should be used for 30-amp circuits so that the wire does not melt before the breaker can do its job in an over-current situation.
Can you oversize your electrical wire?
Using larger gauge AWG wire offers you more flexibility in how your electrical system is laid out. Your electrician can add more outlets when your wiring has increased current potential. Larger wiring can sometimes be installed in risky areas where small wiring is not recommended.
How many amps can 6 3 wire carry?
6/3 wire is a bare copper wire which carries current and carries a current of 55 Amps approximately.
