NPT is defined by ANSI/ASME standard B1. 20.1. The taper rate for all NPT threads is 1 inch of diameter in 16 inches of length ( 3⁄4 inch per foot or 62.5 millimeters per meter) measured by the change of diameter (of the pipe thread) over distance of thread.
What does it mean 1/4 NPT?
How are they measured? NPT fittings are listed by the “standard” inner diameter (I.D.) of the fitting. (We put “standard” in quotes because the I.D. of the fitting will vary, depending on the manufacturer.) The outer diameter (O.D.) of the threads is usually about 1/4 (0.250) in.
What does NPT mean in fittings?
NPT (or National Pipe Taper) is a U.S. standard for tapered threads widely used on pipes and fittings for over 100 years. NPT connections rely on thread deformation- a metal to metal sealing design where the threads of the connectors themselves form together.
What is the difference between NPT and BSP?
NPT/NPS threads have a 60° angle and have flattened peaks and valleys (Sellers thread form) where as BSP threads have a 55° angle and have rounded peaks and valleys (Whitworth thread form). NPT and BSP thread pitches (threads per inch) are listed below.
How do I know what size NPT I need?

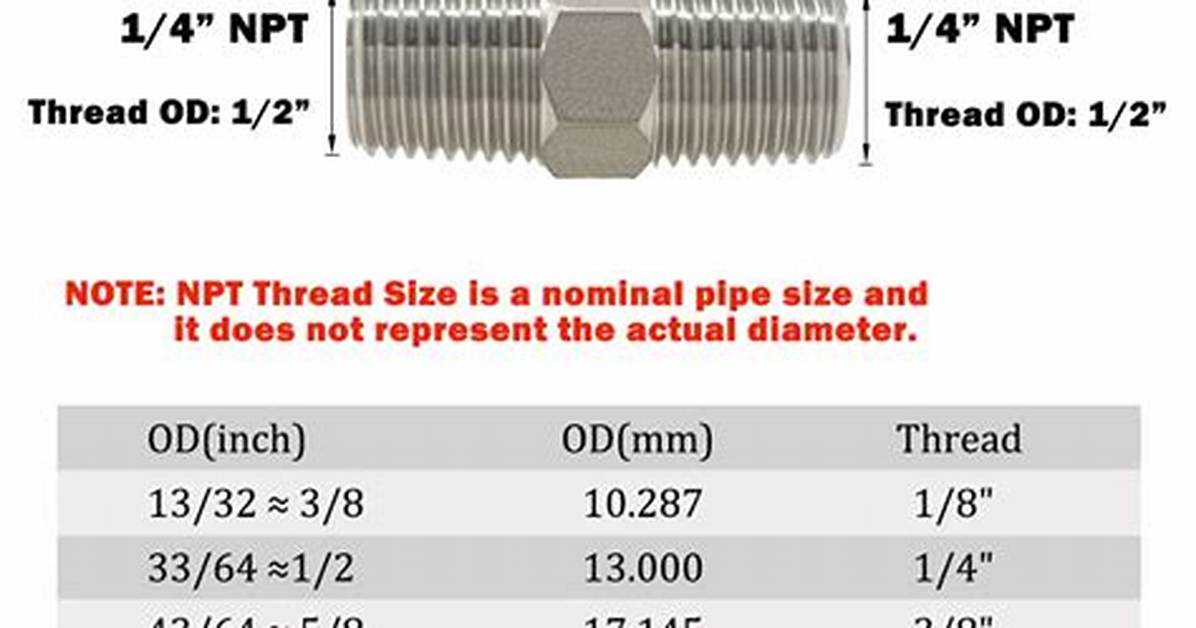

To determine the NPT size, with a caliper, measure the diameter of the 2nd or 3rd thread on your pipe, fitting or valve as shown below. Find the caliper measurement in the chart and cross reference the nominal NPT pipe size. Don’t get confused, the actual measurement is not the same as the NPT pipe size.
Is NPT the same as pipe thread?
NPT is the abbreviation for National Pipe Thread Tapered, which is the U.S. standard for tapered threads used to join pipes and fittings. They were established as a standard by the American National Standard Pipe Thread, commonly referred to as the national pipe thread standards.
What does MIP and FIP mean?
Other Notes About Thread Sizing
MPT stands for Male Pipe Thread and MIP stands for Male Iron Pipe which both indicate a male fitting with NPT threads. FPT stands for Female Pipe Threads and FIP stands for Female Iron Pipe which both indicate a female fitting with NPT threads.
Do you measure pipe inside or outside?
Tubing is measured by the OUTSIDE DIAMETER (O.D.), specified in inches (e.g., 1.250) or fraction of an inch (eg. 1-1/4″). Pipe is usually measured by NOMINAL PIPE SIZE (NPS).
Do NPT threads need Teflon tape?
NPT threads are designed to be used with a sealing compound such as Teflon tape to create a leak-free seal, whereas NPTF threads form a mechanical seal by crushing the entire thread form. If NPT is used without a sealing compound then there can be leakages or other unpleasant issues.
Are NPT and NPT threads compatible?
NPTF threads will screw together with NPT threads and should have no noticeable assembly problem. There will most likely be an interference fit between the root and crest on either the major or minor diameter of the thread, depending on which part is NPTF. To accomplish a seal on the joint, a sealant will be required.
How do you use NPT fittings?
NPT fittings should never bottom out in assembly. By hand assembly only, the pipe or fitting should only screw in part way before jamming. If an NPT pipe or fitting screws all the way into the female port without binding, the threads are either incorrectly tapped, worn out, or the tapers are grossly mismatched.
Is BSP tapered?
The BSPT male has tapered threads and a 30-degree inverted seat. The thread pitch is different in most cases, and the thread angle is 55 degrees instead of the 60-degree angle found on NPTF threads.
Will BSP fit BSPT?
BSPT & BSPP Male and Female Fittings
British Standard Pipe threads are similar in function to NPT threads, but are generally not interchangeable. BSPT male threads seal against threads of fixed BSPT female.
What is a BSP connection?
British Standard Pipe (BSP) is the title of the set of technical standards that identifies specific screw threads. Countries all around the world have adopted these standards and put them to use for interconnecting and sealing pipes and fittings.
