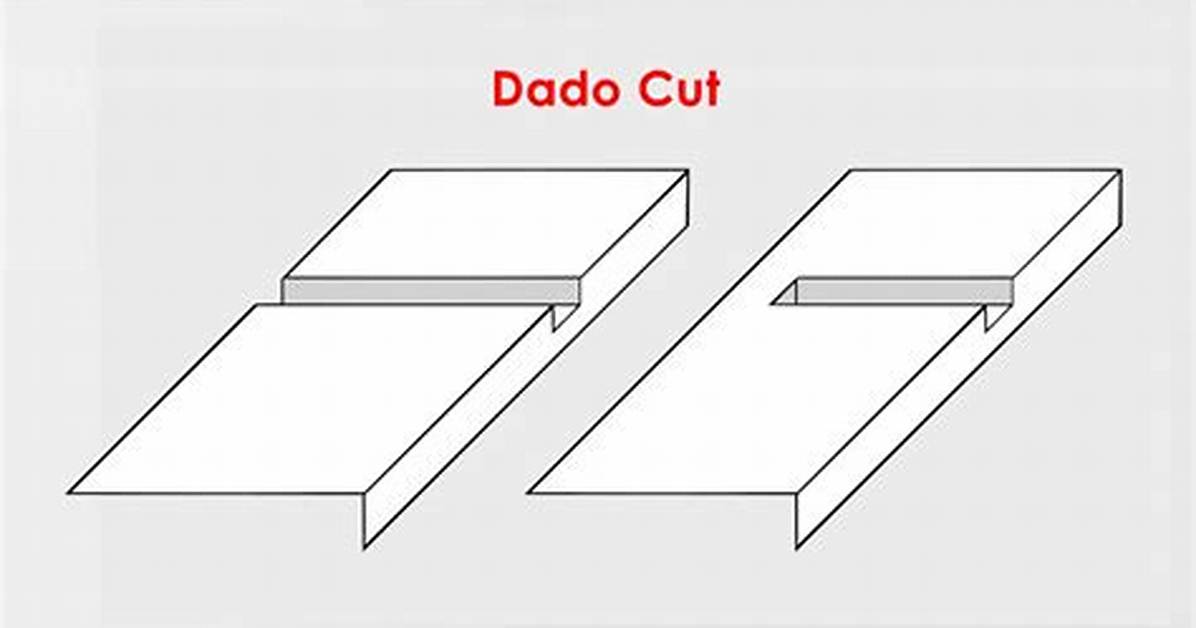

Dadoes and grooves are both defined as a three-sided channel cut into a workpiece but a dado is cut across the grain of the wood and a groove is cut parallel to the grain of the wood. The channel, often referred to as a dado cut, receives another piece of material measured and cut to fit snugly inside the channel.
What is a dado cut on a table saw?
A dado joint is a slot or trench cut into wood where another piece of wood fits into. You can use these joints in a variety of ways, but a lot of times they are used for shelves to fit into the sides of a bookcase.
Can you dado with a router?
The router is the one tool that will handle all the dadoing and grooving you’ll do in woodworking. The dado is prime-choice joinery. It follows that hoary adage of woodworking, “Use the simplest joint that will work.” It certainly works.
Can I make my own dado blade?
Instead of making a dado blade you can instead use a sled and then move the workpiece side to side on that to enlarge the dado. Make the outer cuts first and then you have a reference for where the blade should go; the middle cuts aren’t that important to get accurate.
What is the difference between a rabbet and a dado?
A dado is a U-shaped, square-bottomed channel cut across the grain. A groove looks just like a dado, but runs with the grain. A lot of people call a groove a dado I think that’s OK – but imprecise. A rabbet is an L-shaped channel cut across or with the grain.
Why is it called a dado?
In architecture, the dado is the lower part of a wall, below the dado rail and above the skirting board. The word is borrowed from Italian meaning “dice” or “cube”, and refers to “die”, an architectural term for the middle section of a pedestal or plinth.
Why are dado joints used?
Dado Joints are commonly used in drawer dividers, cabinet shelves, bookcase shelves, partions, cupboards and any project needing to join two pieces at a 90° angle typically plywood or veneers. The lower shoulder of the joint supports the shelf and materials stored on it and the upper should prevents it from cupping.
What is a rabbit cut?
A rabbet (American English) or rebate (British English) is a recess or groove cut into the edge of a piece of machinable material, usually wood. When viewed in cross-section, a rabbet is two-sided and open to the edge or end of the surface into which it is cut.
Can you put a dado blade on any table saw?
But dado cuts cannot be made with just any old saw blade. In fact, you actually need a specialized “dado blade” in order to get these important cuts just right. Unlike most saw blades, not all table saws are designed to accept a dado blade set.
Will Dewalt table saw take a dado blade?
The DEWALT DWE7402DI Dado Throatplate for 10″ Portable Table Saw allows for use of stacked dado cutters. This insert is designed to be used with DWE7490 and DWE7491 Table saw versions . For woodworkers, carpenters, remodelers, deck builders.
Can you dado plywood?
Full-width dado or groove
As a general guideline, cut a dado to a depth about half the thickness of the plywood. A cabinet, bookcase, or dresser built with snug-fitting, glued-together dado joints will last for decades. You can cut dadoes and grooves with a tablesaw or router.
Can you put a dado blade on a circular saw?
A dado blade should never be used on a circular saw because there would be nothing to keep it from getting stuck in the wood as it spins around. It can damage the tool and lead to serious injuries too in some cases.
