So, for Kirchhoff’s junction rule to hold true, the sum of the currents into point F must equal the sum of the currents flowing out of the junction at node E. As the two currents entering junction E are 3 amps and 2 amps respectively, the sum of the currents entering point F is therefore: 3 + 2 = 5 amperes.
What is junction law with an example?
Kirchhoff’s junction rule deals with how much current gets distributed when various branches of circuit meet. For instance, when you see a light bulb, you see that it lights up upon connecting to a battery.
How do you use Kirchhoff junction rule?
Kirchhoff’s First Rule
Current is the flow of charge, and charge is conserved; thus, whatever charge flows into the junction must flow out. Figure 6.3. 2 Charge must be conserved, so the sum of currents into a junction must be equal to the sum of currents out of the junction.
What is a junction in a circuit?
A junction is a point where at least three circuit paths meet. A branch is a path connecting two junctions.
What is the significance of junction rule?

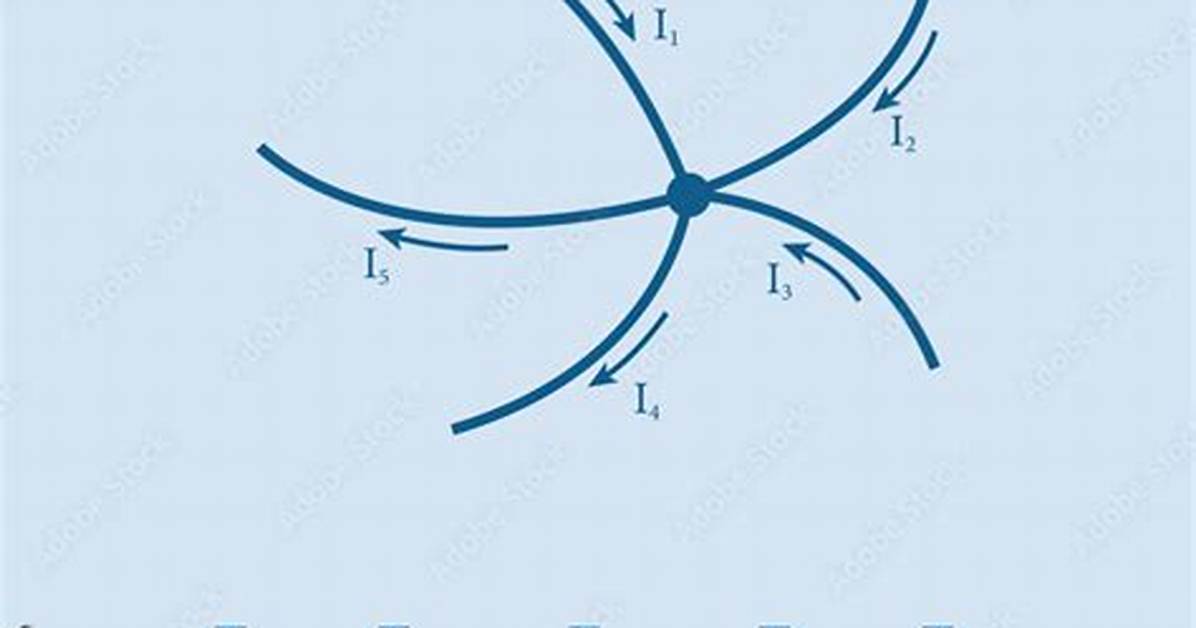

Kirchhoff’s Junction Rule states that the sum of the currents in and out of a junction must be equal to zero. In this case, I1 is connected to junction “a”, and the sum of the currents in and out of junction “a” can be used to find the value of I1. The direction of the currents at the junction are important.
What is Kirchhoff’s rule?
Kirchhoff’s loop rule states that the sum of all the electric potential differences around a loop is zero. It is also sometimes called Kirchhoff’s voltage law or Kirchhoff’s second law.
What is the voltage rule?
Kirchhoff’s voltage law states that the sum of the voltage differences around any closed loop in a circuit must be zero. A loop in a circuit is any path which ends at the same point at which it starts.
What is function loop and junction?
Function:::: work or operate in a proper or particular way. Loop:::: a structure, series, or process, the end of which is connected to the beginning. Junctions:::: a region of transition in a semiconductor between a part where conduction is mainly by electrons and a part where it is mainly by holes.
Does current direction matter in Kirchhoff’s junction rule?
When applying Kirchhoff’s first rule, the junction rule, you must label the current in each branch and decide in what direction it is going.
What is Kirchhoff 2nd law?
Kirchhoff’s voltage law (2nd Law) states that in any complete loop within a circuit, the sum of all voltages across components which supply electrical energy (such as cells or generators) must equal the sum of all voltages across the other components in the same loop.
Why is current conserved at junction?
Junctions can’t store current, and current can’t just disappear into thin air because charge is conserved. Therefore, the total amount of current flowing through the circuit must be constant.
What is junction and node?
Difference between Node and Junction :- A point at which two or more elements are joints together is called node. While a point where three or more branches meet together is called a junction.
How many junctions are in a circuit?
There are no limits on the number of junction boxes (without devices) in any particular circuit. Each piece of ‘utilization equipment’ reduces the maximum allowable load by it nameplate rating, 180va for each receptacle, and each light fixture at its maximum labeled lamp wattage.
What is Kvk and KCL?
Kirchhoff’s current law and voltage law, defined by Gustav Kirchhoff, describe the relation of values of currents that flow through a junction point and voltages in a an electrical circuit loop, in an electrical circuit. Kirchhoff’s current law (KCL) Kirchhoff’s voltage law (KVL)
What is mesh and loop?
A loop is any closed path through a circuit where no node more than once is encountered. A mesh is a closed path in a circuit with no other paths inside it. To find a loop, start at a node in the circuit, from this node, move back to the same node along a path to ensure that no node is encountered more than once.
What are Kirchhoff’s Three Laws?
