Fan-rated electrical boxes are meant to hold ceiling lights with a substantial amount of weight. They do sell other types of boxes for ceiling lights, but Heath recommends always installing fan-rated, metal boxes so that any type of ceiling light can always be safely installed at that location.
Can you put up a ceiling light without a box?
If you’re wondering how you install a light fixture without an electrical box, the short answer is that you don’t. The electrical box, or junction box, is a code requirement that was established to prevent fires and other electrical accidents.
What is a ceiling lightbox?
Ceiling lightboxes represent the future of lighting design. They are a highly-effective way of creating a contemporary, premium aesthetic whilst upholding environmental responsibilities and satisfying functional requirements.
How do you install a ceiling light box?
Push the box into the hole until the front edge is flush with the surface of the drywall. Push in the screws on the front of the box with a screwdriver and turn them to engage the anchors behind the box with the back of the drywall. When the anchors are engaged, tighten the screws to hold the box firmly in place.
What is the difference between junction box and utility box?
A utility box can also be called an electrical box and it would be composed of switches, electrical sockets, and also fixtures. The major difference between a junction box and a utility box is that a junction box would house the electrical connections while the utility boxes are used to install switches, fixtures, etc.
How much weight can a ceiling electrical box hold?
Weight limits: fans and fixtures are supported independent of outlet box. Mounting screws go through box and into joist. Box will support up to 70 lbs. for fans and 90 lbs.
Is junction box necessary?
Electrical codes generally require that all electrical devices, and the wiring connections to those devices, must be enclosed in an approved electrical box. Often known as a junction box, this metal or plastic box includes a cover to protect the wiring within and protect you from the wiring.
Can you use an outlet box as a junction box?
Yes. For code-compliance purposes: Each 14 gauge wire is 2 cubic inches, each 12 gauge 2.25. All of the ground wires count as a largest wire.
Do LED lights need junction box?
You need to put it into a junction box to make a connection. The Fluorescent Lights previously had that direct connection inside the fixture, but the LED lights don’t.

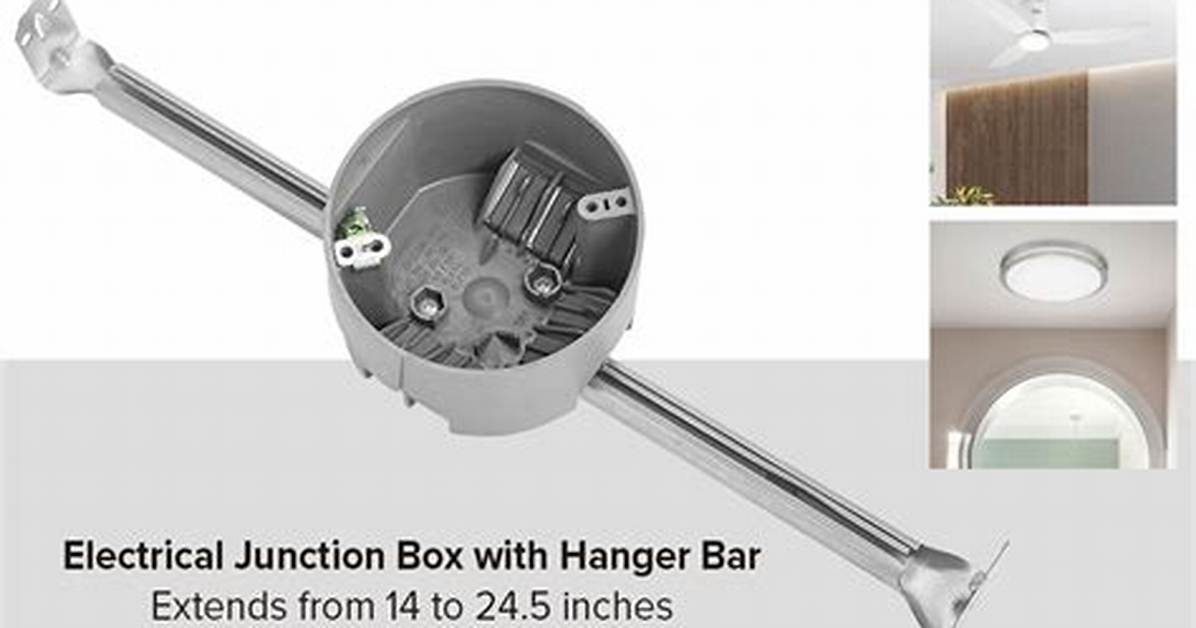

What is a ceiling box?
Conventional ceiling boxes are designed only for lightweight ceiling-mounted lights and devices such as smoke alarms. Use a listed ceiling fan/fixture support for hanging ceiling fans and heavy light fixtures. Ceiling boxes come in round or octagonal shapes, and they are available with or without mounting brackets.
What are the different types of electrical boxes?
Types of Electrical Boxes
Handy Box: Mounts on the surface of a wall. Junction Box: Wires connect only to each other, never to a switch, receptacle or fixture. New Work Box: Installed as part of a new construction project. Old Work Box: Also called a “remodeling box.” Installed on drywall after it has been hung.
How much weight can an old work ceiling box hold?
How heavy of a light fixture or ceiling fixture can a listed ceiling box support? A ceiling box can support a fixture of 50 pounds or less. A ceiling box rated for “fan support” can support a fan of 35 pounds or less.
Should ceiling electrical box be flush with drywall?
When you install an electrical box, make sure it is flush with the surface of this drywall strip; this will ensure the boxes are at the proper depth when the walls are finished.
Can a plastic junction box hold a ceiling fan?
Electricians use both metal and plastic boxes, and the latter are preferred in some cases because they are inexpensive, easy to use and naturally insulated. They aren’t made for supporting much weight, however, and shouldn’t be used to support a ceiling fan.
What is the purpose of utility box?
Utility boxes are above-ground structures that house electrical transformers, electrical switches, cable TV, communication or telephone connections and wiring, and other electrical connections required to distribute a utility service from a main line to individual buildings.
When would you use a junction box?
You’ll need a junction box if you can’t make the connections inside an existing electrical box. You should install the box with the opening facing out from the wall so all the wires inside are accessible. Like any electrical box, it should be installed so that the edge of the opening is flush with the wall.
How do you tell if a box is rated for a ceiling fan?
The manufacturer must have marked the outlet box system to indicate that it is acceptable for ceiling fan installations. If the original box is not listed for this purpose, it must be retrofitted and attached securely to the building structure.
