Many drum traps are still in use today, but technically are not up to current code standards. Old-school plumbing trap. Like modern P-traps, drum traps prevent sewer gases from backing up into the house. Though more prone to clogging and harder to clean out than modern traps, many are still in use and function well.
What is a drum trap drain?

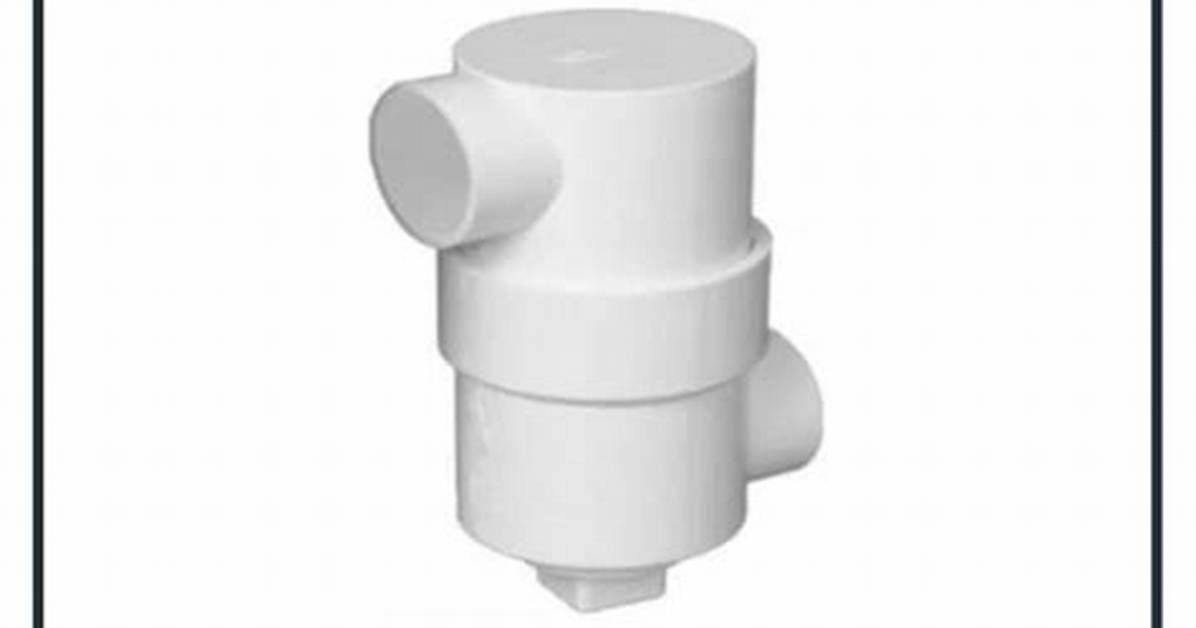

Drum traps do the same thing, but instead of just having a dip in the pipe to create a self-scouring P-trap, a drum trap consists of an enlarged ‘vessel’ that holds a large volume of water. Drum traps were commonly used at bathtubs and occasionally at laundry sinks at older Minnesota homes.
How do I keep my drum traps clear?
Put on rubber gloves and remove the debris in the drum trap with your hands. Wrap plumber’s tape around the threads on the drum trap’s cap. Replace the drum trap’s cover and run the tub’s hot water for another two minutes to flush out any leftover clog debris.
Why is a drum trap used in a bathtub?
As mentioned in previous posts, the purpose of a plumbing trap is to prevent sewer gases from coming in to a building. A drum trap does the same thing, but instead of just having a dip in the pipe to create a P-trap, a drum trap consists of an enlarged ‘vessle’ that holds a large volume of water.
How do you clean a PVC drum trap?
To get rid of this clog, insert an auger into the drain pipe via the drum trap, and turn the auger slowly until the clog clears. The tub drain makes a right angle bend as it goes up into the tub and so this is a possible location of the clog. Keep turning the auger until you feel the clog giving way.
What is a running trap?
running trap. A depressed U-shaped section of pipe in a drain; allows the free passage of fluid, but always remains full, whatever the state of the pipe, so that it forms a seal against the passage of gases.
Are drum traps vented?
No trap shall be installed without a vent, except as otherwise provided in this Code.
When were drum traps used?
Shown below are the earliest US Patents we’ve found on Drum Traps for plumbing waste systems, but even Copithorn’s 1893 Drum Trap Patent makes clear that drum traps had been in use well before that time (manufactured of lead). The earliest Drum Trap Patent we’ve found was shown above, from an 1884 patent disclosure.
Do bathtub drains have traps?
Yes, a bathtub does require a p-trap. P-traps are also necessary for a kitchen sink, a bathroom sink, a shower drain etc. Plumbing codes require p-traps on all wastewater lines. A bathtub p-trap is part of the bathtub drain and serves the same function as it would for any sink or area with a drain line.
Where is the drain trap?
Also known as a “P-trap,” a sink trap is a curved length of pipe located below the drain. If you follow the drain pipe from the bottom of the drain to the wall, this bend should be relatively in the middle, underneath the sink.
What are the types of traps in plumbing?
Different Types of Traps
Floor Trap or Nahni Trap. Floor trap or Nahni trap is provided in to the floor to collect waste water from bathroom, wash area, washbasin, and kitchen sink area etc. Gully Trap. P, Q and S-Trap. Intercepting Trap. Bottle Trap. Grease Trap.
Are bathtubs self venting?
they are actually self vented..
the tub can run 10 feet or more over to a swet vent off a lavatory. so the whole 5 bathroom house can have just one 1 1/2 vent going out the roof
What can I use instead of AP Trap?
4 Alternatives of P-trap in The Shower
Alternative 1: HepvO Waterless Valve.Alternative 2: Bottle Trap.Alternative 3: Grease Trap.
What is a bag trap?
[′bag ‚trap] (engineering) An S-shaped trap in which the vertical inlet and outlet pipes are in alignment.
