Ceiling fans need to be properly anchored to an electric ceiling box that’s designed to hold a heavy fixture. It will not only hold the wiring, but also support the full weight of the fan.
How do you tell if a box is rated for a ceiling fan?
The manufacturer must have marked the outlet box system to indicate that it is acceptable for ceiling fan installations. If the original box is not listed for this purpose, it must be retrofitted and attached securely to the building structure.
What is a ceiling outlet box?
Octagon or circular boxes are used to hang a light fixture, square boxes are most often used as junction boxes, and rectangular boxes hold switches and receptacles. A covered electrical box in the ceiling or a ceiling receptacle box will require an inspection to ensure that you can use it to install a light fixture.
Can I use plastic box for ceiling fan?
Electricians use both metal and plastic boxes, and the latter are preferred in some cases because they are inexpensive, easy to use and naturally insulated. They aren’t made for supporting much weight, however, and shouldn’t be used to support a ceiling fan.
Can I put a ceiling fan where a light was?
There’s really no problem in replacing an existing light fixture with a ceiling fan in terms of the electrical needs. But what you really have to be careful of is to make sure the electrical box that the light fixture is attached to will support the extra weight of the ceiling fan.
How much weight can a ceiling light box hold?
All ceiling boxes are required to support at least 50 pounds (NEC 314.27(A)), so you can assume the box will be able to support a simple light fixture. Boxes that are designed to support ceiling fans must be labeled as such, and must have a label listing the weight it can support if over 35 pounds (NEC 314.27(D)).
How much does a 52 inch ceiling fan weight?
Hanging measurements & additional specs: this fan measures 12. 25 inches from ceiling to bottom of the fan. It is 52-inches in diameter and has an assembled weight of approximately 15. 25 pounds.

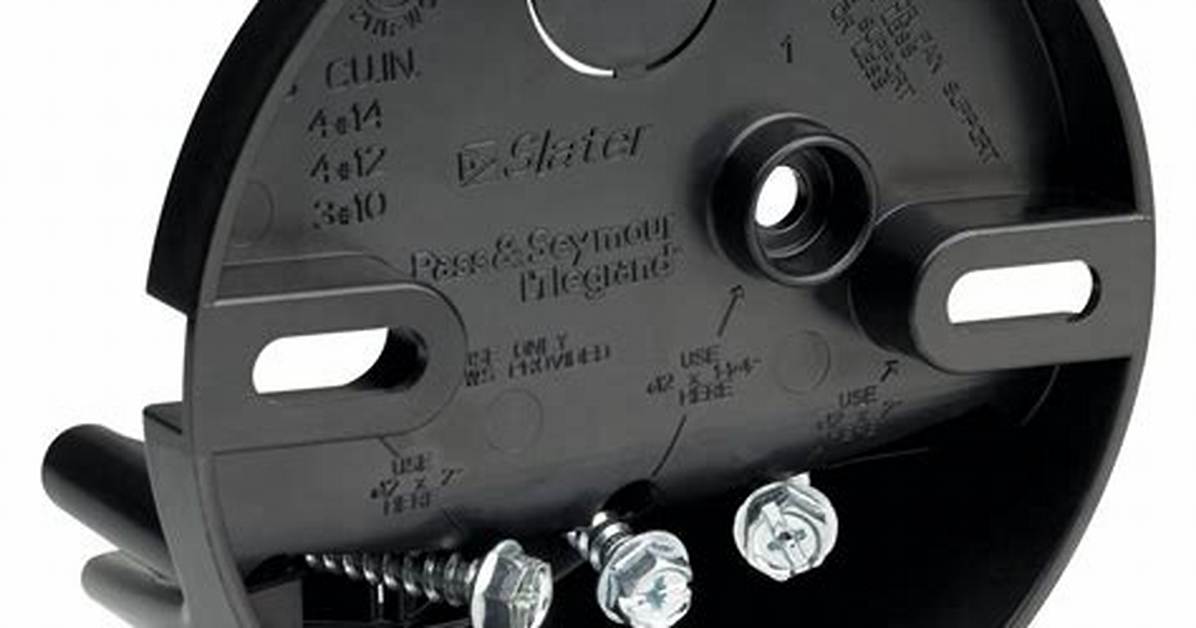

Are pancake boxes fan rated?
Quite often, a fan rated pancake box is used when roughing in the ceiling fan installation. Many of these boxes only have a total volume of 6 or 8 cubic inches. One single 14-3 (with ground) Nonmetallic sheathed cable will completely fill the 8 cubic inch fan box to its maximum allowable capacity.
What is a pancake electrical box?
Orbit Industries’ Round Pancake Boxes with shallow depths of 1/2″ or 2/3″ are used to mount lighting fixtures on walls and ceilings. They include conduit knockouts and non-metallic clamps on selected models for easy installation. Do not use as a ceiling fan support box.
How much weight can an old work ceiling box hold?
A ceiling box can support a fixture of 50 pounds or less. A ceiling box rated for “fan support” can support a fan of 35 pounds or less.
What size is a box fan?
Box fans come in a wide variety of sizes, including small personal fans, standard box fans, and large industrial fans. Personal fans typically measure about 10 inches by 10 inches, while standard box fans average 20 inches by 20 inches.
How much weight can an octagon box hold?
Standard octagon electrical boxes may be rated to support up to 35 pounds (depending on the installation method), while boxes with lightweight braces may be rated for only 10 or 15 pounds. Heavy-duty ceiling fan boxes may be rated for upwards of 50 pounds.
How much weight can a fan box hold?
Weight limits: fans and fixtures are supported independent of outlet box. Mounting screws go through box and into joist. Box will support up to 70 lbs.
