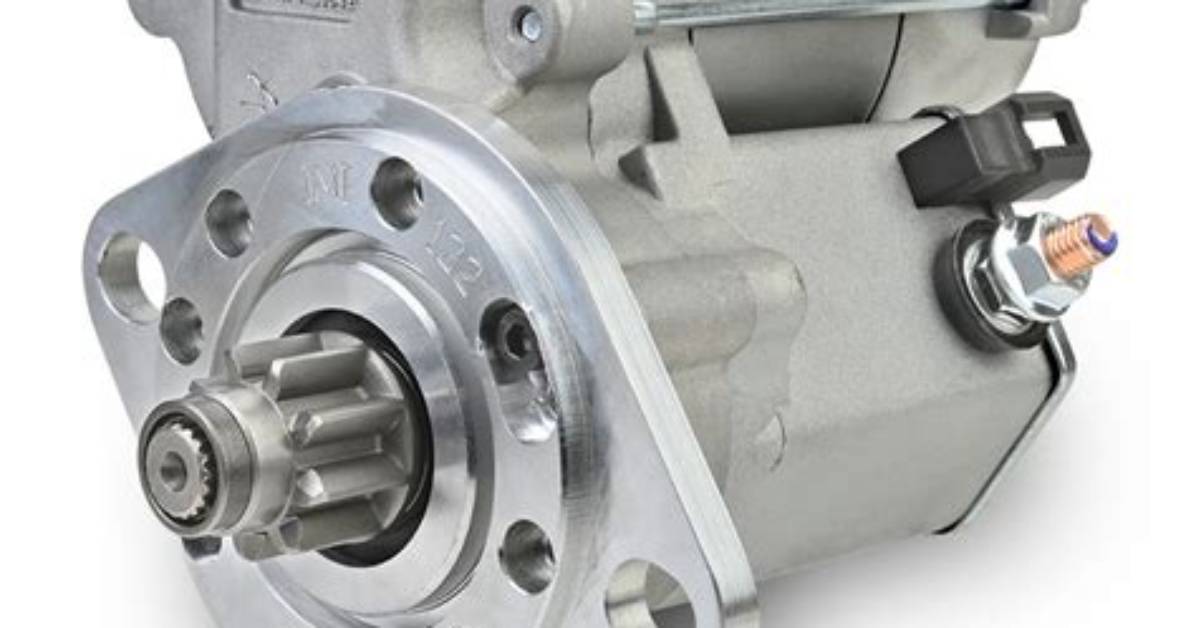

Gear reduction starters use gears to reduce the speed of a higher-speed electric motor in order to extract more torque at the flywheel end of the starter. Two typical designs are Offset Gear Reduction and Planetary Gear Reduction.

How much approximately is the gear reduction for starting the engine?

The motor shaft included integrally cut gear teeth forming a pinion that meshes with a larger adjacent driven gear to provide a gear reduction ratio of 3.75:1. This permitted the use of a higher-speed, lower-current, lighter and more compact motor assembly while increasing cranking torque.

Why is a reduction starter motor sometimes used?

GEAR-REDUCTION STARTERS

This permits the use of higher speed, lower current and lighter motor assembly while increasing cranking torque. The Chrysler starter made a unique, readily identifiable sound when cranking the engine.

What should be done before beginning a starter replacement?

How to Replace a Starter
Safety First. Disconnect the battery. Remove the Wiring. Remove the wiring and positive battery cable from the starter solenoid.Remove the Starter and Bolts. Remove the starter retaining bolts. Compare to Verify. Transfer Heat Shield. Replace with New Starter. Secure and Tighten. Connect the Wiring.

How does a reduction gear work?

Reduction gear assembly consists of a set of rotating gears connected to a wheel work. The high speed incoming motion from the wheel work is transmitted to the set of rotating gears, wherein the motion or torque is changed.

Are high torque starters better?

Since a high-torque starter is working so much easier to turn over the engine, it can seem as though the cranking speed is actually faster, and in some cases, it is. Powermaster offers different gear ratios to generate either more cranking torque or faster cranking for engines that are particularly difficult to start.

Does a starter affect performance?

However, when the starter begins to wear out or break, it will impact your ability to drive the car. Over time, the starter motor will eventually run its course and wear out.

What causes starter failure?

A starter malfunction can have different causes: Electrical connections faulty. Solenoid switch (engaging relay) stiff or faulty. Electric motor damaged electrically.

Which gear has highest speed reduction?

Worm gears are perhaps the most costeffective reduction solution, but usually have a minimum 5:1 ratio and lose considerable efficiency as ratios go higher. Bevel reducers are very efficient but have an effective speed reduction upper limit of 6:1.

Does gear reduction increase torque?

The rotary machine’s output torque is increased by multiplying the torque by the gear ratio, less some efficiency losses. While in many applications gear reduction reduces speed and increases torque, in other applications gear reduction is used to increase speed and reduce torque.

Does gearbox efficiency affect speed?

The amount of loading affects efficiency. not change significantly with speed, ratio or driven direction. However, with worm gearing efficiency does change with speed, ratio and driven direction.

Are direct drive and gear reduction starters interchangeable?

A gear reduction starter may appear different by design. For example, the Delco Remy 29MT™, 35MT™, 38MT™and 39MT™ all incorporate a nose-less design and don’t include a cone around the starter drive. Despite this design difference, these starters are completely interchangeable with straight drive nose style starters.

What are the symptoms of a defective starter drive?

Still, look for these seven symptoms that your starter is going bad.
#1: Engine Won’t Turn Over. #2: Noise – Clicking, Grinding, or Whirring. #3: Intermittent Issues Starting the Vehicle. #4: Starter Stays On After Starting. #5: Smoke. #6: Starter Engages But Motor Won’t Start. #7: Battery.

Is it the starter or the alternator?

The alternator converts mechanical energy into electrical energy allowing the car to charge the battery while you are driving. The starter works in a different way converting electrical energy of the auto into mechanical energy. Both the alternator and starter can wear out over time needing repair or replacement.

How long does it take to replace a starter?

Depending on the type of vehicle, typically a starter motor replacement will take a mechanic between 2 and 4 hours to complete from start to finish.

Can AutoZone test starters?

Every AutoZone in the USA will check your alternator, starter, or battery at no charge.
