Thermocouples are sensors used to measure temperature. It is a device used inside a gas furnace in Kansas, to assist the pilot light in keeping your furnace running and safe. It works rather like a fail-safe to keep unburned gas from accumulating and burning, exploding or causing another type of health risk.
What is thermocouple and explain?
thermocouple, also called thermal junction, thermoelectric thermometer, or thermel, a temperature-measuring device consisting of two wires of different metals joined at each end. One junction is placed where the temperature is to be measured, and the other is kept at a constant lower temperature.
What is the basic principle of thermocouples?
The thermocouple working principle is based on the Seeback Effect. This effect states that when a closed circuit is formed by jointing two dissimilar metals at two junctions, and junctions are maintained at different temperatures then an electromotive force (e.m.f.) is induced in this closed circuit.
What causes a thermocouple to fail?
After enough time, metal fatigue can cause a thermocouple to break. Thermocouples that are regularly exposed to extreme heat stress or extreme conditions are more likely to go through metal fatigue. If thermocouples start to give out unusual readings, it may be suffering from metal fatigue.
What happens if a thermocouple fails?
When a thermocouple fails, the pilot light won’t stay lighted. A burned out or broken thermocouple should be replaced.
What are the advantages of thermocouple?
Benefits of Thermocouple Sensors
Self-powered: As the output emf increases according to temperature changes, there is no necessity for an external power source. Simple and Robust: In terms of design, these sensors are simple yet tough. Inexpensive: Wide Temperature Range:
What is thermocouple BYJU’s?
Definition: The thermocouple is a temperature measuring device. It uses for measuring the temperature at one particular point. In other words, it is a type of sensor used for measuring the temperature in the form of an electric current or the EMF.
What is RTD and thermocouple?
Resistance Temperature Detectors (RTD) and Thermocouple are the most common sensor types used to measure temperatures. These are preferred over the others for measurements because they avoid the tedious process of conversion, and get the measurements with ease.
Is thermocouple active or passive?
Examples of passive sensors are thermocouples and photodiodes which generate thermoelectric voltages and photocurrents, respectively, which are independent of external circuits.
Are thermocouples AC or DC?
Thermocouple meters are AC meters that respond to the RMS value of a signal. Permanent Magnet Moving Coil (PMMC) is only used for DC measurements. Moving Iron (MI) type instruments can be used for both AC & DC measurements.
What are the types of thermocouple?

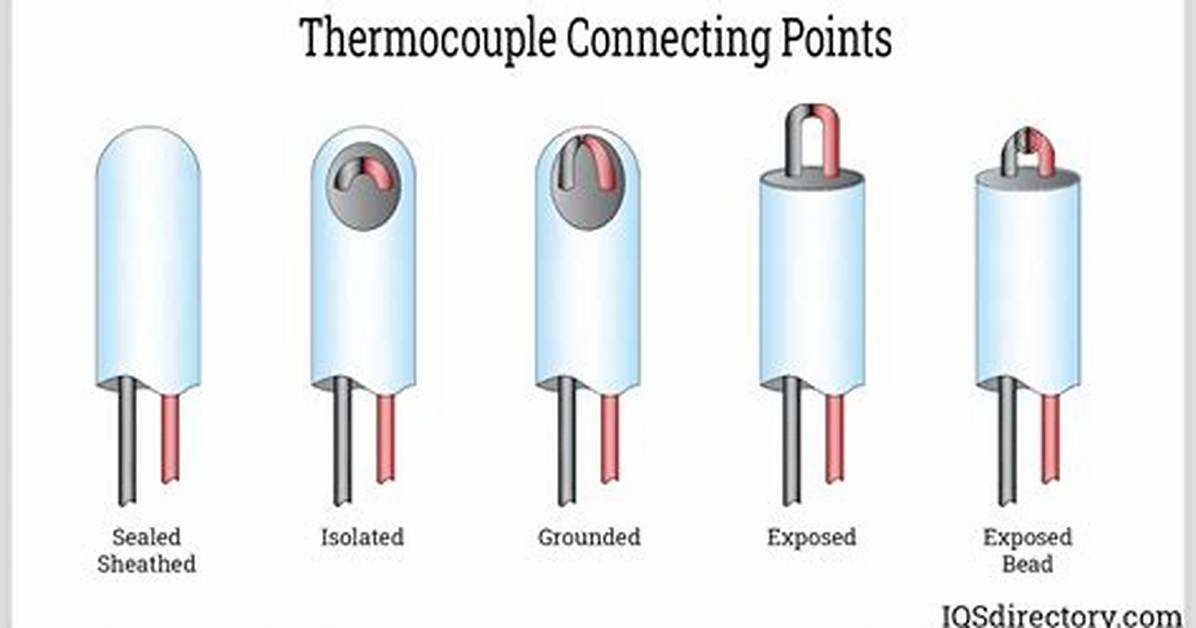

Thermocouple Types: Type J, Type K, Type N, Type T, Type E, Type R, Type S, Type B, Type C. A thermocouple consists of a welded ‘hot’ junction between two dissimilar metals – usually wires – and a reference junction at the opposite end.
Can you repair a thermocouple?
Thermocouples are designed to detect a pilot light’s loss of heat and close the gas valve to prevent a gas leak. Replacing a thermocouple is a relatively easy fix that can take less than two hours.
Can you clean a thermocouple?
Yes, you can clean a thermocouple, but the task must be done with a light touch. Remove the thermocouple from the process assembly, using a steel wool or emery cloth, lightly clean the tip removing any build up. Cleaning a thermocouple is not a fix for an issue, such as inaccurate readings.
How long should a thermocouple last?
All things considered, the question remains, “How long should my thermocouple last?” The answer to that question is that it depends on the application. In an ideal environment, that length of time can be indefinite.
How do I test a thermocouple?
Select the ohms or resistance option on your multimeter. Place one test lead on the side of the thermocouple and the other to the end that screws into the gas valve. If the thermocouple has proper continuity, a small resistance reading should be visible on the multimeter.
Can you bypass thermocouple?
Realistically, you have just disabled the thermocouple, but you can also reach in and unclip it from its holding bracket where it meets the pilot light. In most cases it will be held on with a gravity clip, but some are held on with a screw that must be removed with a small screwdriver.
What is the most common thermocouple failure mode?
The most common failure mode for thermocouples is for them to fail open, this is known as thermocouple burnout. Burnout can result from a variety of reasons including the thermocouple experiencing a temperature in excess of that for which it was designed, metal fatigue, and oxidation.
