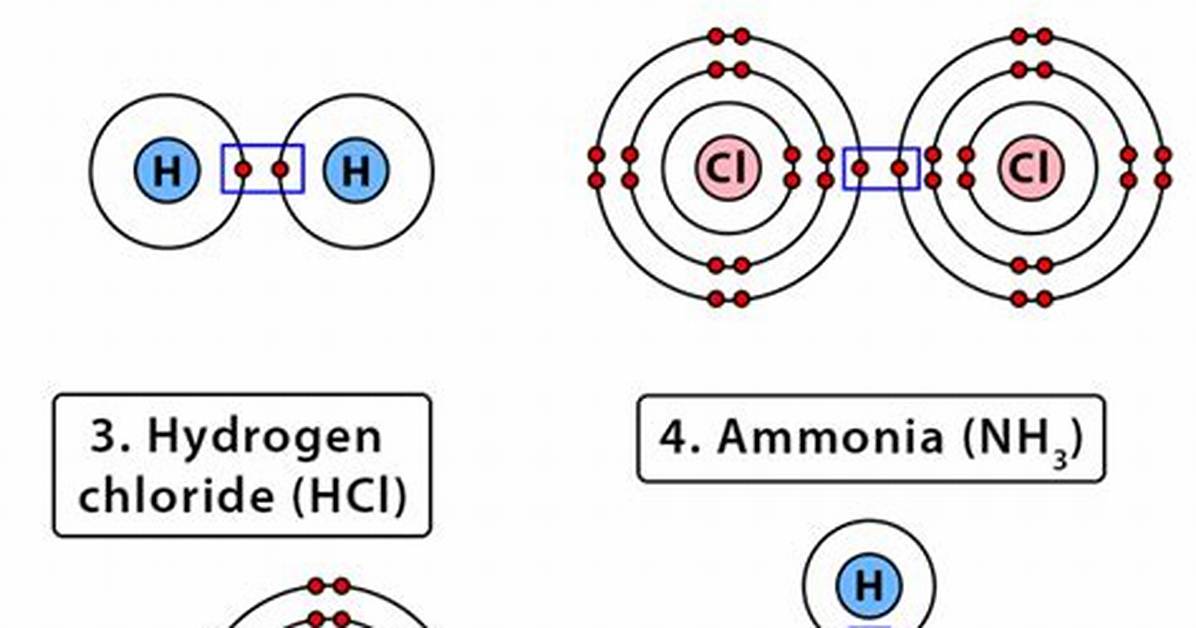

Examples of Single Covalent Bond
Hydrogen (H2) A molecule with a single covalent bond is hydrogen. Fluorine (F2), Chlorine (Cl2), Bromine (Br2), and Iodine (I2) Halogens like fluorine (F), chlorine (Cl), bromine (Br), and iodine (I) have seven valence electrons in their outermost shells. Ammonia (NH3) Ethane (C2H6)
What is single bond with example?
Single bond symbol: A single line represents a bond between two atoms (i.e., involving one electron pair) Single bond example: Cl2, HCl, NH3 etc.
What are single covalent bonds Class 10?
1)Single covalent bond:It is formed by sharing of one pair of electron between two atoms. For Ex:Formation of chlorine ,Hydrogen,Hydrogen chloride,Methane molecule etc. 2)Double covalent bond:It is formed by sharing of two pair of electron between two atoms. For Ex:Oxygen,Carbondioxide,Ethene molecule etc.
Is o2 single covalent bond?
A polar covalent bond between carbon and oxygen is a carbon-oxygen bond. Oxygen has 6 valence electrons and chooses either to share two carbon bonding electrons, leaving the 4 non-bonding electrons in 2 lone pairs: O: or to share two electron pairs to form the functional group of carbonyl.
What is single bond called?
A single bond is a sigma bond. An exception is the bond in diboron, which is a pi bond. In contrast, the double bond consists of one sigma bond and one pi bond, and a triple bond consists of one sigma bond and two pi bonds.
What is the meaning single bond?
Definition of single bond
: a chemical bond in which one pair of electrons is shared by two atoms in a molecule especially when the atoms can share more than one pair of electrons — compare double bond, triple bond.
Is CH4 ionic or covalent?
Methane, CH4, is a covalent compound with exactly 5 atoms that are linked by covalent bonds. We draw this covalent bonding as a Lewis structure (see diagram). The lines, or sticks, as we say, represent the covalent bonds. There are four bonds from a central carbon (C) linking or bonding it to four hydrogen atoms (H).
What is lone pair in covalent bond?
In chemistry, a lone pair refers to a pair of valence electrons that are not shared with another atom in a covalent bond and is sometimes called an unshared pair or non-bonding pair. Lone pairs are found in the outermost electron shell of atoms. They can be identified by using a Lewis structure.
Does CO2 have a single covalent bond?
Note that carbon dioxide has two covalent bonds between each oxygen atom and the carbon atom, which is shown here as two lines and referred to as a double bond.
What is single bond double and triple?
A single line indicates a bond between two atoms (i.e., involving one electron pair), double lines (=) indicate a double bond between two atoms (i.e., involving two electron pairs), and triple lines (≡) represent a triple bond, as found, for example, in carbon monoxide (C≡O).
What molecules have single bonds?
Single Bonds
Hydrogen is shown in Fig 2.28 with one electron. In the formation of a covalent hydrogen molecule, therefore, each hydrogen atom forms a single bond, producing a molecule with the formula H2. A single bond is defined as one covalent bond, or two shared electrons, between two atoms.
How long is a single bond?
Bond lengths are typically in the range of 100-200 pm (1-2 Å). As a general trend, bond length decreases across a row in the periodic table and increases down a group. Atoms with multiple bonds between them have shorter bond lengths than singly bonded ones.
