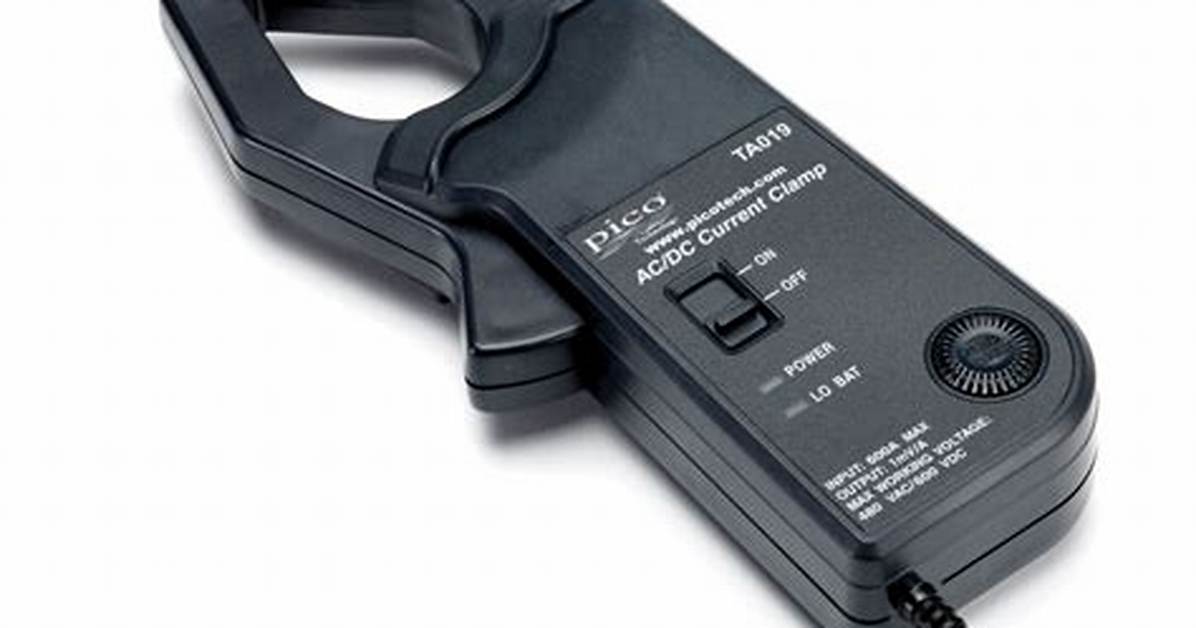

Current clamps are also referred to as clamp-on current probes or Amp clamps in America. They enable you to measure currents without breaking the electrical circuit. Current clamps feature opening and closing jaws that can be placed around a wire (conductor) where a magnetic loop is formed.
What is a clamp-on ammeter?
Clamp-on ammeter or simply ‘clamp meter’ is an instrument that is used to measure the current flowing through a conductor. An AC Clamp meter basically consists of a current transformer in its jaws, bar CT usually. Utilizing the principle of current transformer, the reading will be displayed.
Are amp clamps always accurate?
Current clamps vary widely in accuracy. A high-end current clamp can get better than one percent accuracy, while less expensive current clamps range from five to ten percent accuracy.
How many wires should you clamp with an amp clamp at once?
This applies to 3-phase current measurements as well. The conductors must be separated enough to allow the clamp to be placed around just one wire at a time.
Who uses a clamp meter?
Clamp meters allow electricians to bypass the old-school method of cutting into a wire and inserting a meter’s test leads into the circuit to take an in-line current measurement.
What is an electrical clamp?
In electrical and electronic engineering, a current clamp, also known as current probe, is an electrical device with jaws which open to allow clamping around an electrical conductor.
What is the difference between clamp ammeter and ammeter?
A clamp meter is primarily built for measuring current (or amperage), while a multimeter typically measures voltage, resistance, continuity, and sometimes low current. The main clamp meter vs multimeter difference is that they can measure high current, while multimeters have higher accuracy and better resolution.
Which is better clamp meter or multimeter?
Significant difference between Clamp meter & multimeter:
A clamp meter is an ideal option for measuring current, whereas a multimeter is suitable for measuring voltage, resistance, a frequency with better resolution and accuracy.
What is the best tool to measure amperage?
It can be a voltmeter that measures voltage or an ammeter that measures current. Or a multimeter can be an ohmmeter that measures resistance. Advanced multimeter models can also measure continuity, temperature and more. Digital multimeters display measurements as a number and offer the most reliable readings.
Are cheap clamp meters accurate?
If you already have a multimeter but don’t have a way to measure AC current, add an inexpensive Uni-T UT210E to your arsenal. This is a very inexpensive meter, but it’s still accurate enough to perform diagnostics.
Can I measure DC current with a clamp meter?
Hall Effect clamp meters can measure both ac and dc current up to the kilohertz (1000 Hz) range. Like current transformer types, Hall Effect clamp meters use rigid iron jaws to concentrate the magnetic field that encircles the conductor being measured.
Can you use a clamp meter on Romex?
No, you cannot use a clamp meter on both the live and neutral wires at the same time.
How will you measure current by using clamp meter?
To measure ac current using a flexible current probe:
Connect the flexible current probe to the meter. Connect the probe’s flexible tubing around the conductor. Keep the probe coupling more than 1 inch (2.5cm) away from the conductor.Turn the dial to the icon. View the current value in the display.
What is multimeter used for?
A digital multimeter is a test tool used to measure two or more electrical values—principally voltage (volts), current (amps) and resistance (ohms). It is a standard diagnostic tool for technicians in the electrical/electronic industries.
Can you use a clamp meter as a multimeter?
Even though multimeters and clamp meters are used similarly, they are not the same tool. Get a clamp meter for measuring current but choose a multimeter for measuring anything else. You may even want to look for more modern models that fuse both meter types so you can have the power of both in one handy tool.
