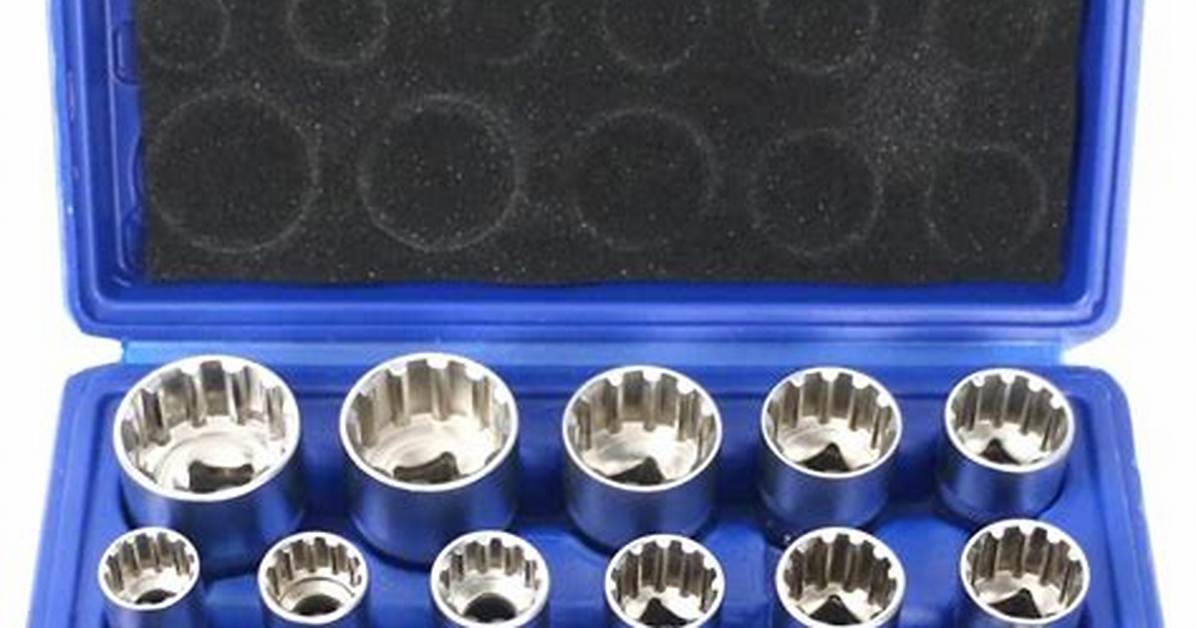

A spline socket is designed to tighten and un-tighten spline fasteners but is also ideal for use on 4-point, 6-point (hex) and 12-point (bi-hex) fasteners, making them a useful socket to use across multiple shaped fasteners.
What are spline bits used for?
The Spline shank bits are carbide-tipped bits used for drilling holes in concrete, brick or block base material. The tip of the bit is made out of carbide. The Spline drive carbide-tipped bits are used in electro-pneumatic hammer drills.
What is spline drive?
Splines are ridges or teeth on a drive shaft that matches with grooves in a mating piece and transfer torque to it, maintaining the angular correspondence between them. For instance, a gear mounted on a shaft might use a male spline on the shaft that matches the female spline on the gear.
Is 12 point the same as spline?
Spline will work on bolts with rounded corners, where 12 point will slip. In my experience you are correct.
What is a spline screw?
A ball screw spline is a combination of two components — a ball screw and a rotary ball spline. By combining a driving element (the ball screw) and a guiding element (the rotary ball spline), a ball screw spline can provide both linear and rotary motion, as well as spiral motion, in a highly rigid, compact design.
What do you mean by spline?
Definition of spline
1 : a thin wood or metal strip used in building construction. 2 : a key that is fixed to one of two connected mechanical parts and fits into a keyway in the other also : a keyway for such a key.
What are spline lug nuts?
What Is a Spline Lug Nut? Spline lug nuts are designed to fit in small diameter recesses found on aftermarket wheels. These lug nuts are characterized by their smooth exterior finish and internal splines on the top of the lug that’s requires a spline drive adapter for installation and removal.
Are 6 point or 12 point sockets better?
Answer: It’s true that 12-point sockets are fine for most lightweight repairs, but heavy wrenching calls for a six-point socket. A six-point socket is much less likely to slip off a stubborn fastener or round over the corners. Here’s why: (1) Six-point sockets have thicker walls, so they’re less likely to flew.
What is the difference between SDS Max and spline?
Spline bits have become much less common than SDS Plus or SDS Max. They are very similar in capacity and variety to the range available to SDS Max bits. The major difference is that chipping bits and drilling bits that are used for spline drive drills have different shanks as one is smooth and the other has splines.
How do splined couplings work?
Spline couplings are mechanical components used to connect and transmit torque between two rotating shafts. A spline coupling consists of two parts: a shaft with external teeth and an hub with internal teeth; the load is transferred from the shaft to the hub (or vice-versa) by means of a number of engaging teeth.
What is the difference between spline and gear?
Splines and gears are both purposed to transmit torque and both feature external teeth that lock into place with a mating component. Splined shafts differ from gears as they use all teeth or grooves simultaneously to transfer torque. Gears in contrast, utilize one tooth at a time to transfer torque.
What are axle splines?
The spline of an axle is the teeth or peak that are machined on the end of the axle and mesh with the differential or spool inside the pumpkin of the rearend.
Will a 12 point socket work on a Torx bolt?
Neither a 6 or a 12 point socket will help when an E-Torx is required. You should be able to pick up a set to cover everything you’ll come across on the automotive side for $10 at the store that sells cheap tools.
What is a spline in math?
A spline is a continuous function which coincides with a polynomial on every subinterval of the whole interval on which is defined. In other words, splines are functions which are piecewise polynomial. The coefficients of the polynomial differs from interval to interval, but the order of the polynomial is the same.
Are triple square and spline the same?
Super Moderator. XZN and triple square are the same thing,if you try and use a Torx bit to remove these you’ll almost certainly damage the head of it,as not only are there a different number of splines,they’re also at a different angle to Torx bits. Chris.
What is a 12 point bolt?
12-Point Bolts are an alternative head design for hex socket cap screws. The flange diameter and head height are designed to fit a range of applications and counterbored holes designed for standard hex socket cap screws.
