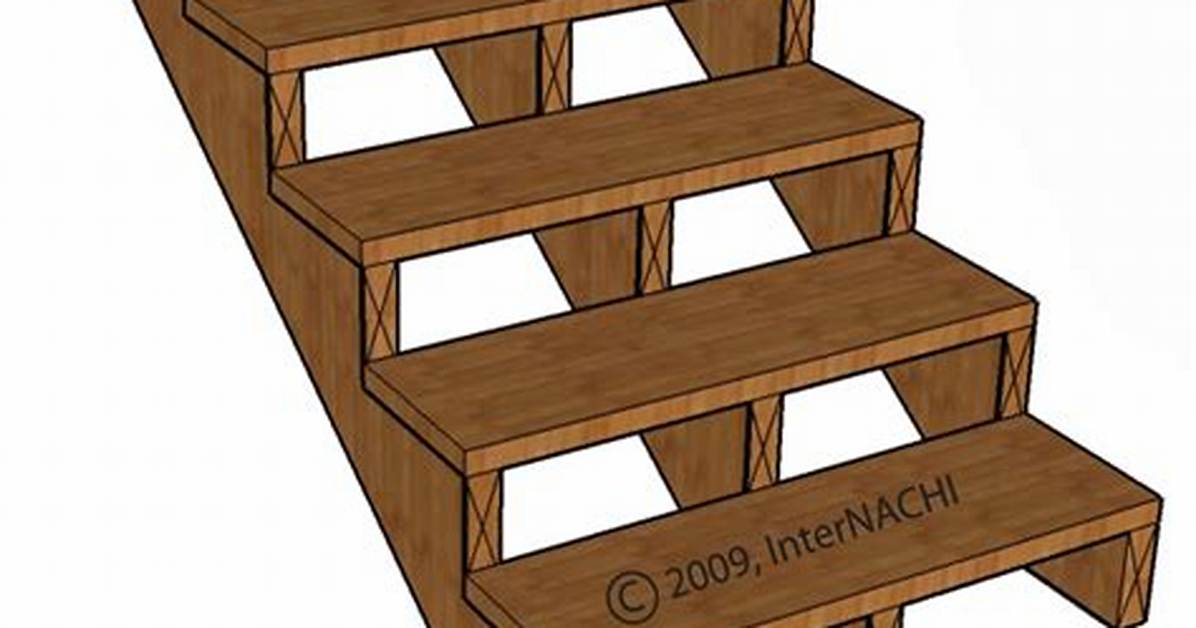

A stringer is the vertical support board or structural member that runs along each side or center of the staircase. The treads and risers are fixed into the stringer. Different stringers can combine with different types of stair treads to provide an almost endless combination of stair designs.
How many stringers are needed for stairs?
Most staircases will have 4 or 5 stair stringers, though this depends on the width of your stairs and the material you’re using for your stair treads. Most composite deck boards need a stringer every 8 to 12 inches on stairs.
Do stairs need stringers?
You’ll need at least one stringer for every 16 inches of stair width. If you’re using synthetic decking for the treads, some manufacturers require stringers to be spaced no more than 12 inches apart.
Should stairs have 3 stringers?
If cut stringers are used in the stair construction, then at least three stringers are required. Cut stringers should be spaced no more than 18 inches on center. For example, a 36-inch-wide stairway should have three stringers. If the stairway is wider than 36 inches, four stringers should be installed.
Are stair stringers 2×10 or 2×12?
It is acceptable and within building code guidelines to use either 2×10 or 2×12 dimensional lumber to create a set of stairs; however, a stair stringer should not be less than 3.5 inches wide at its narrowest point to provide adequate strength for the load the stairs will be supporting.
What is the standard height of rise of a step?
Riser Heights
In the United States, the step height standard should be between 7 or 7 ¾ inches at the most, and no less than 4 inches.
Can I use 2×12 for stair treads?
Stair treads may be made of a single 2×12, but are often made of two decking boards or 2x6s. A stringer is a wide board, usually a 2×12, that runs at an angle from the landing pad to the deck framing and supports the treads.
Can I use 2×8 for stair stringers?
You should attach 2×6 or 2×8 support framing under the rim flush to the bottom of the stringer. The stairs will hang here. Install a piece of blocking below the rim joist to extend the attachment surface for your stairs stringers. Use a level to mark the top step.
How many stringers do I need for 4 foot wide steps?
This means you will need to install a minimum of four stringers on any stairway wider than 36”. Always check the maximum span for your decking material as it applies to stair treads. Some composite materials and lower-grade 5/4 wood decking may require you to reduce the stringer spacing to 10” on center.
How many steps is 4 foot rise?
A four-foot high deck can have a range between 6 and 8 steps.
How do you cut stringers?
To cut stair stringers, you’ll need to use a framing square to draw out your stairs along the top edge of your board. Then, use a circular saw to cut the lines you marked on the wood, but always complete your cuts with a hand saw to avoid accidentally cutting too far.
What is the best wood for stair stringers?
Always use straight, high-quality, pressure-treated 2x12s for stair stringers. If you are planning on resting the stringer on the ground, make sure the wood has . 60 RET level.
How far can 2×12 stair stringers span?
A 2×12 stringer has a maximum unsupported span of 6 feet. These stairs (7) are likely to deflect and cause the stringers to either pull loose from the framing or shear along the grain.
How far apart do stringers need to be?
Stringers should be spaced no more than 36 inches apart from each other for maximum stair support, according to the International Association of Certified Home Inspectors. However, local residential codes may vary slightly, so check the building codes before building a staircase.
How long can stringers be without support?
Solid stringers seem to be able to get to about 13 feet without support.
How tall is a 5 step Stringer?
This product is a stringer that will install 8 stairs, with a total height of approximately 54-3/4″ high to the top step.
How high is a 3 step Stringer?
A: Standard is 7″.
