The simple reason why 2×4 is not 2 inches by 4 inches is that lumber mills trim off rough or warped surfaces of a 2×4 to give it a more polished and finished look. By planning the lumber on all four sides, the original 2×4 is now reduced to 1 ½ inches by 3 1/2 inches.
What size is 2×4 wood?
Because of this extra milling, a 2×4 no longer measures a full 2 inches by four inches. Instead, a 2×4 is really only 1 1/2″ by 3 1/2″.
What is meant by dimension lumber?
Dimensional lumber is wood fiber that is cut to a specific size (thickness/width/length) based on pre-defined, standardized sizes. Common examples of dimensional lumber sizes include two-by-fours (2x4s) and four-by-fours (4x4s).
How wide is a 2×10?
2x Board Sizes
lose 3/4 inch in width. That means a 2×10 is actually 1 1/2 inch in thickness by 9 1/4 inches.
Why are lumber measurements wrong?
Maybe you’ve noticed that lumber sizes are often misleading. The “nominal” cross-section dimensions of a piece of lumber, such as 2 X 4 or 1 X 6, are always somewhat larger than the actual, or dressed, dimensions. The reason is that dressed lumber has been surfaced or planed smooth on four sides (called S4S).
Why is lumber smaller than the size it says?
Typically, that rough cut is smaller than the nominal dimensions because modern technology makes it possible to use the logs more efficiently. For example, a “2×4” board historically started out as a green, rough board actually 2 by 4 inches (51 mm × 102 mm).
When did they stop using true 2×4?
Size standards, maximum moisture content, and nomenclature were agreed upon only as recently as 1964. The nominal 2×4 thus became the actual 1½ x 3½, imperceptibly, a fraction of an inch at a time. It was a 34 percent reduction in actual volume; as those in the trade would say, it’s “selling air.”
What does it mean when someone calls you a 2 by 4?
1. that measures two inches by four inches, two feet by four feet, etc. Informal. small, narrow, cramped, etc. noun.
What does 2x4x8 mean?
The 2 tells us the thickness of the board in inches, the 4 is the width of the board in inches and the 8 is the length of the board in feet.
Why is lumber measured in quarters?
Rough sawn lumber comes in “true” thicknesses as reflected by the “quarters” size. Lumber sized according to “Quarters” reflects the number of quarters of an inch thick the lumber is. To figure the thickness of a board referenced in “quarters” sizes, simply divide the second number (4) into the first number.
Is plywood a dimensional lumber?
For the average do-it-yourselfer, most long, thin lumber that will be used for building is considered to be dimensional lumber. Other types of lumber, such as plywood and other sheet goods, are offered in prescribed standard sizes but are not referred to as dimensional lumber.
What kind of pine is used in dimensional lumber?
In Canada, most dimension lumber is produced from spruce-pine-fir (SPF). In the United States, southern yellow pine (SYP) is mainly used. It is the structural softwood lumber used in most wood-based construction in North America. Dimension lumber is also used in wood-frame construction projects of up to six stories.
Is dimensional lumber good?
Dimensional lumber is remarkably versatile and is usable in both small projects like making stools and the major ones like constructing posts-and-beams. It is imperative that you choose the size you need keenly and in consideration of the project at hand.

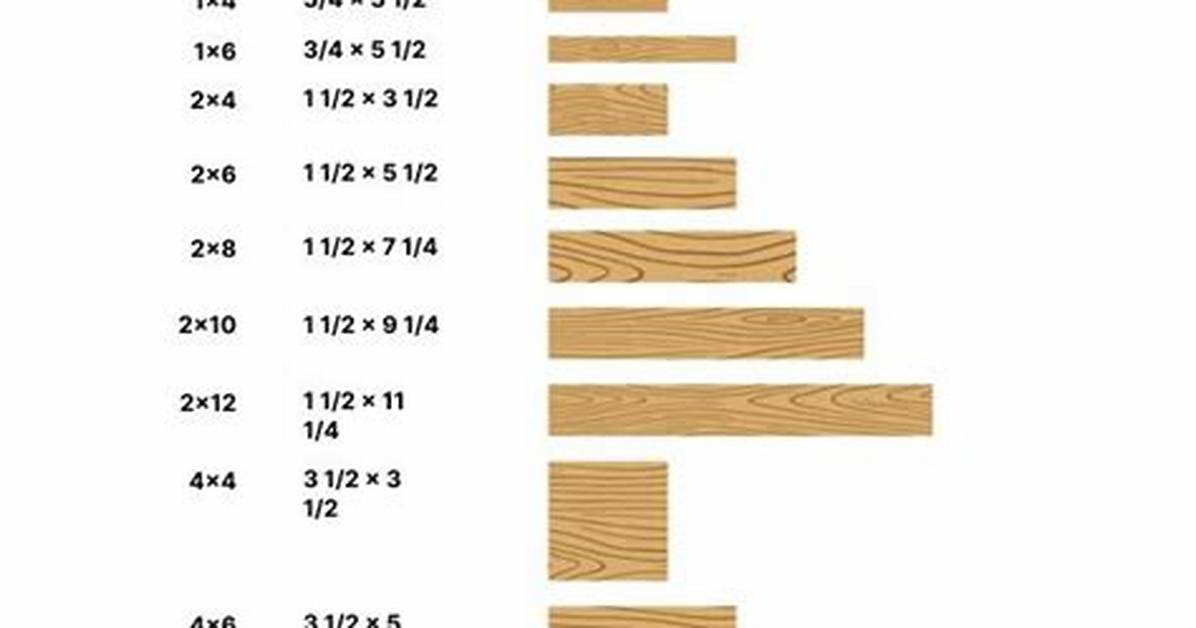

What is a 2×8 dimension?
A 2×8 board is 1 1/2 x 7 1/4 inches (38 x 184 mm) dimensions in actuality. The board which is advertised and being sold by using nominal dimensions are a bit larger in size as compared to the actual size.
