It says the grounding electrode conductor connection shall be made at any accessible point from the load end of the service drop or service lateral to and including the terminal or bus to which the grounded service conductor is connected at the service disconnecting means.
Does grounding electrode conductor need to be in conduit?
(B) Grounding Electrode Conductor Protection. Where exposed, grounding electrode conductors sized 8 AWG and smaller must be installed in rigid metal conduit, intermediate metal conduit, rigid nonmetallic conduit, or electrical metallic tubing.
What size grounding electrode conductor is required?
Grounding-electrode conductor size
A 4 AWG copper conductor meets the requirement for the grounding-electrode conductor where 20 feet or more of ½-inch or larger reinforcing steel embedded in concrete that is in contact with the earth is the grounding electrode.
Which of the following must never be used as a grounding electrode?
2017 NEC 250.52(B)(3) Prior to 2017, only two items were prohibited for use as grounding electrodes: underground gas piping and aluminum. For 2017, another item has been added to the list of prohibited items.
Does a subpanel in the same building need a ground rod?
Answer: No. You’d need at least one grounding electrode, or ground rod, for every sub-panel in a detached building. Whether you need two or not is determined by the soil and local regulations. So, check your local code requirements.
How deep does a grounding electrode conductor need to be?
It must be buried at least 18 in. below grade. C: It must be securely fastened to the surface on which it is carried.
How far should a ground rod stick out of the ground?
Approximately 90 percent of all grounding electrode systems for structures are driven rods. The NEC requires all driven rods to be a minimum eight feet in the earth and for multiple connected rods a minimum spacing of six feet between rods.
What is the minimum grounding electrode conductor size for a 200 amp service?
What Size Grounding Wire is Required for a 200 Amp Service? A grounding wire ranging from 2AWG to 8 AWG is recommended for a 200-amp service. You can use 8AWG (Copper) or 6 AWG (Aluminum) grounding wires for a 200-amp service. You can also use copper conductors of 4AWG and aluminum conductors of 2AWG.
How long can a grounding electrode conductor be?
In one- and two-family dwellings, the bonding conductor or grounding electrode conductor shall be as short as practicable not to exceed 6.0 m (20 ft) in length.
What is the minimum size grounding electrode copper conductor?
Section 250.52(A)(4) requires that the minimum size conductor and material for a ground ring is 2 AWG copper. Section 250.66(C) provides that where connected to a ground ring, that portion of the grounding electrode conductor that is connected to the ground ring need not be larger than the ground ring conductor.
What is the purpose of a grounding electrode conductor?
Having established that the general purpose of the grounding electrode system is to provide a path to ground for high-voltage surge currents and lightning strikes, keeping the grounding electrode conductor outside the building would be common sense.
What electrodes are permitted for grounding?
A plate electrode that exposes no less than 2 square feet (0.186 m2) of surface to exterior soil shall be considered as a grounding electrode. Electrodes of iron or steel plates shall be at least 1⁄4 inch (6.4mm) in thickness. Electrodes of nonferrous metal shall be at least 0.06 inch (1.5mm) in thickness.
Which of the following is used to connect a ground rod with a grounding conductor?

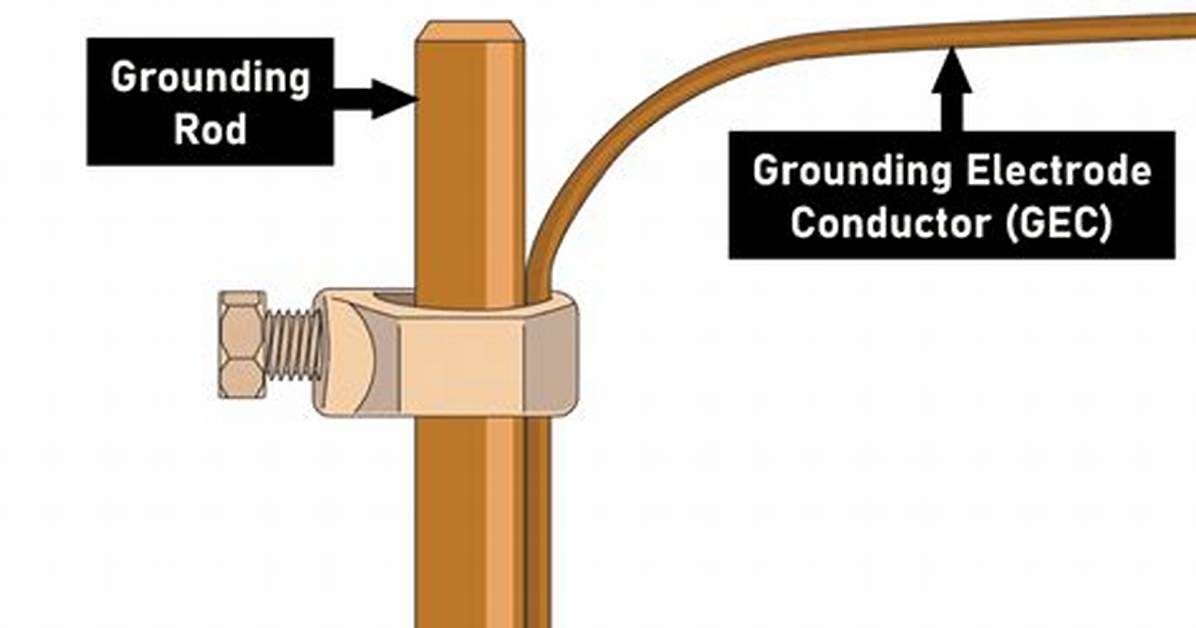

Grounding clamps are used to connect the grounding electrode conductor to the ground rod.
Does a detached garage need a ground rod?
Yes, you need a grounding electrode (ground rod) local to the detached building.
Does a subpanel in a detached garage need a ground rod?
A detached building with a subpanel needs its own ground rod, regardless of if there are three wires or four wires feeding it. The earth is a very poor conductor.
