Size Wire for 100 Amp Service

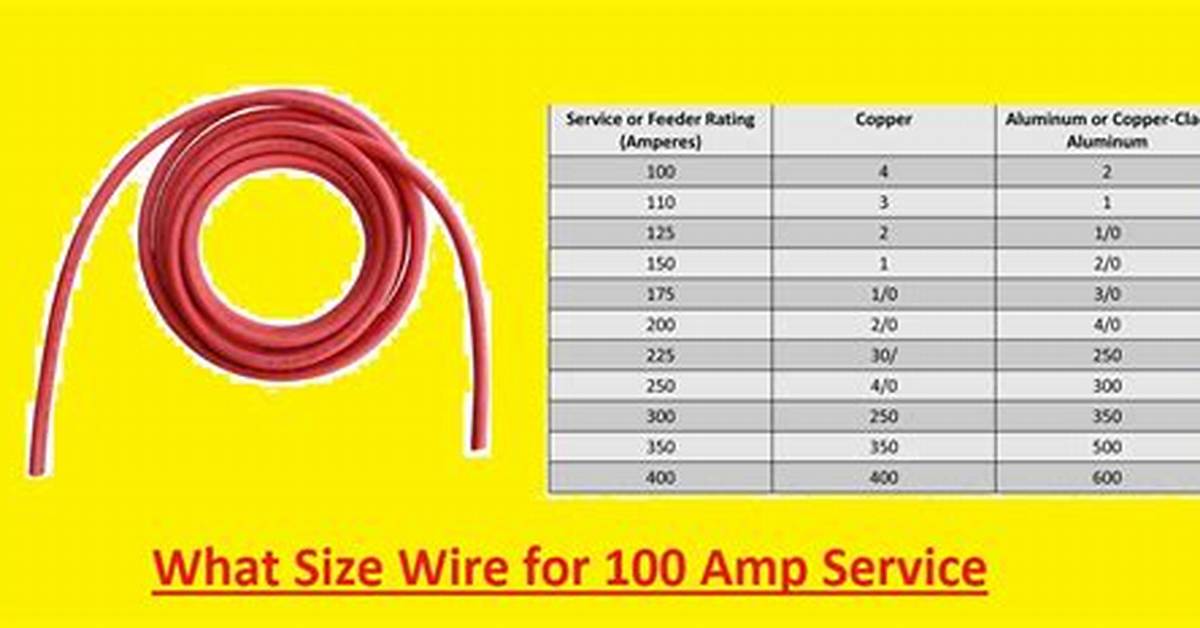

Wiring a 100 amp breaker panel requires either #4 copper wiring or #2 aluminum or copper-clad wiring. Which wire used is determined by the voltage drop and length of the wiring. Many licensed electricians use #2 copper-clad or aluminum wire size.
What size wire do I need to run 100 Amp Service 150 feet?
What is the right wire size for 100 Amp service 150 feet distance? You should get 2/0 AWG Copper wire or 4/0 AWG Aluminum wire for single-phase circuits. And, 1/0 AWG Copper wire or 3/0 AWG Aluminum wire if you have three-phase circuits. For these wires, the average voltage drop should be 3%.
What wire size do I need to go 100 feet for a 100 amp service to a workshop?
For a 100 ampere circuit, the conductors will likely be required to be 3 AWG copper or 1 AWG aluminum.
Will #2 wire fit in a 100 amp breaker?
A 100 amp sub panel wiring size requirement is #4 for copper wires and #2 for aluminum wires.
How far can you run #2 aluminum wire?
Example calcuation 2 – Aluminum Wire, 1 phase power
Cable run: 400 ft. 1 conductor per phase utilizing a 1000 kcmil Aluminum conductor installed Direct Buried will limit the voltage drop to 2.61% or less when supplying 194 amps for 400.0 feet on a 240 volt 1 phase system.
What is the difference between #2 and 2 0 wire?
2 AWG will handle around 94 Amps, while 2/0 AWG will handle around 190 Amps. The length of the wire must be considered as well as the % voltage drop in order for this to be true.
Can you run a 100 amp sub panel off a 100 amp main panel?
First the panels you are looking at that are rated 100A simply means you can use them for any application up to 100A. You can for example add a 60A breaker to your existing panel and protect the new subpanel with a 100A rating.
What size ground wire do I need for a 100 amp subpanel?
You are correct that for a 100A feeder, the associated ground wire needs to be an 8AWG copper or 6AWG aluminum wire.
What size wire do I need to run 300 feet?
for 300 feet for 100 amp rated service I would use Aluminum direct burial 1/0-1/0-1/0-1/0, the forth can be as low as #4 for the ground (but also in conduit, even if in conduit must still be rated underground wire and required by code also) Also note the size wire the breaker can handle, cannot cut strands to make fit,
What size wire do I need for a 200 foot run?
A 200 feet distance is a long run and, as such, would require a wire of adequate thickness. A 4 AWG wire best fits this distance.
Is 100 amps enough for a house?
Most homes require an electrical service of at least 100 amps. This is also the minimum panel amperage required by the National Electrical Code (NEC). A 100-amp service panel will typically provide enough power for a medium-sized home that includes several 240-volt appliances and central air-conditioning.
