Screws with a countersunk head are typically used in woodworking applications. When building furniture, manufacturers often use countersunk screws so that the heads don’t protrude. If the head protrudes out of a piece of furniture, such as a recliner, it will likely be uncomfortable to consumers to use.
What kind of screws are made to be countersunk?
Some of the head shapes that will require countersinking include flat screw heads, raised screw heads, and bugle screw heads. For a flat screw head, you can also use a flat head screw cover to conceal the head. Luckily, a custom screw manufacturer has custom screw options that can be tailor-made to fit your project.
What’s the difference between countersunk and double countersunk?
What is a double countersunk screw head? Improved design on the countersunk head to give additional head strength and assist countersinking. Small ribs on the countersink to assist completion of countersinking. A countersunk head with a slight raised dome for an attractive finish.
What is meant by countersunk?
1 : to make a countersink on (a hole) 2 : to set the head of (something, such as a screw) at or below the surface.
Why is it called a countersink?
The mid 19thC origin of the shoemaking term matches quite well with the appearance of “countersink” in the literature and “countersinking” a hole so that the head of a screw or other fastener fits below the surface certainly improves the strength of the join and could be said to “buttress” the fastener.
What are non countersunk screws called?
Domed or Round Screw Heads
Unlike a countersunk screw, a domed head screw sits above the work surface and is used when a more decorative finish is required.
What does a countersunk bolt look like?

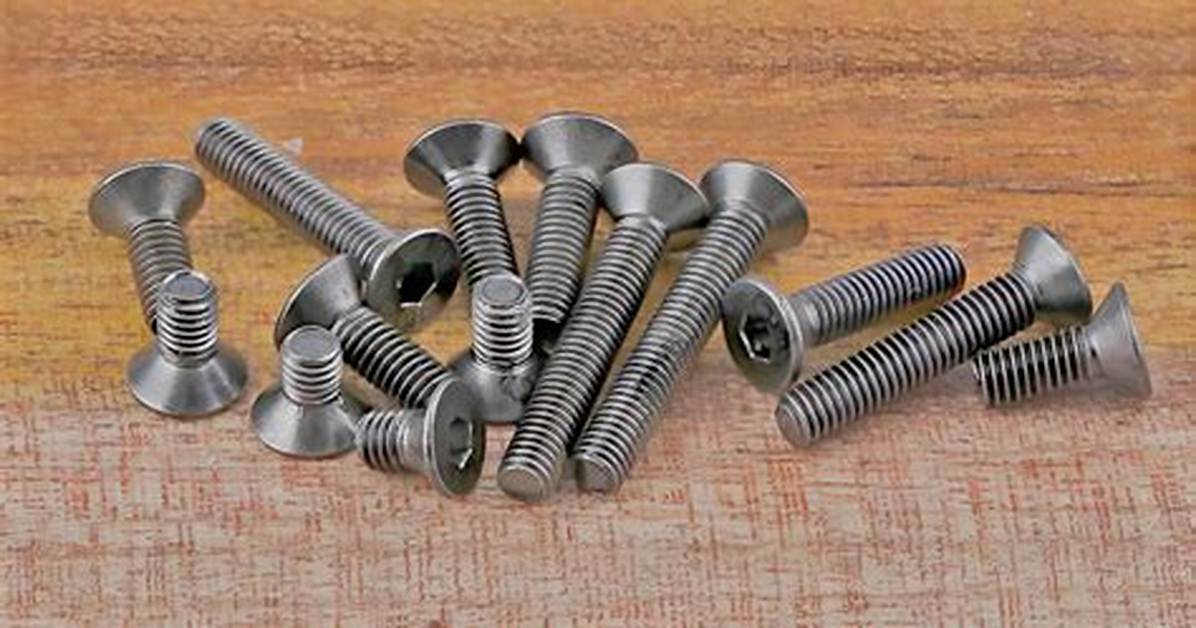

Overview of Countersunk Screws
They feature a flat head that tapers along the shaft. Therefore, when you drive a countersunk screw into an object or surface, the head will sink so that it’s flush with the respective material. Most screws, of course, have a rounded or semi-rounded head.
What is the difference between single and twin thread screws?
The key difference is that a single start thread has a singular continuous thread that spans along the whole body of the screw. Alternatively, twin start threads have two threads that run the length of the screws body.
What is the plus screwdriver called?
SCREWDRIVER TYPE: Phillips
Phillips screws, identifiable by a flared “+” on their heads, are widely used for construction and woodworking purposes.
What are TurboDrive screws?
TurboDrive wood screws feature a yellow zinc plated coating, which offers protection from corrosion when used in mildly corrosive conditions. A sharp cutting tip means there is no need to make pre drilled holes and can be driven easy into timber with a screwdriver or drill.
What is a flat screw?
Flat head screws are characterized by having a head with a flat top and bottom that is cone shaped or countersunk. With this design, the head of the screw can align flush or below the surrounding surface having obvious benefits.
What angle are countersunk screws?
Countersinks have a countersink angle of 90° (and for US standard 82°) for countersinking screws, e.g. the countersink angle for rivets is 120°. For the flat countersink, the countersink angle is 180°.
What is a drill countersink?
Countersinking is done to insure that flat head screws sit flush to the work piece. A countersink produces a conical hole matching the angle of the screw so that when the screw is fully engaged the head will sit flush or slightly below the surface.
Is it countersink or countersunk?
As verbs the difference between countersink and countersunk
is that countersink is to create such a conical recess while countersunk is .
What is the symbol for countersink?
Countersink symbol
Some older blueprints may use the notation CSK to identify a countersink dimension. If you want to type the ⌵ symbol, hold the ALT key and press 9013.
