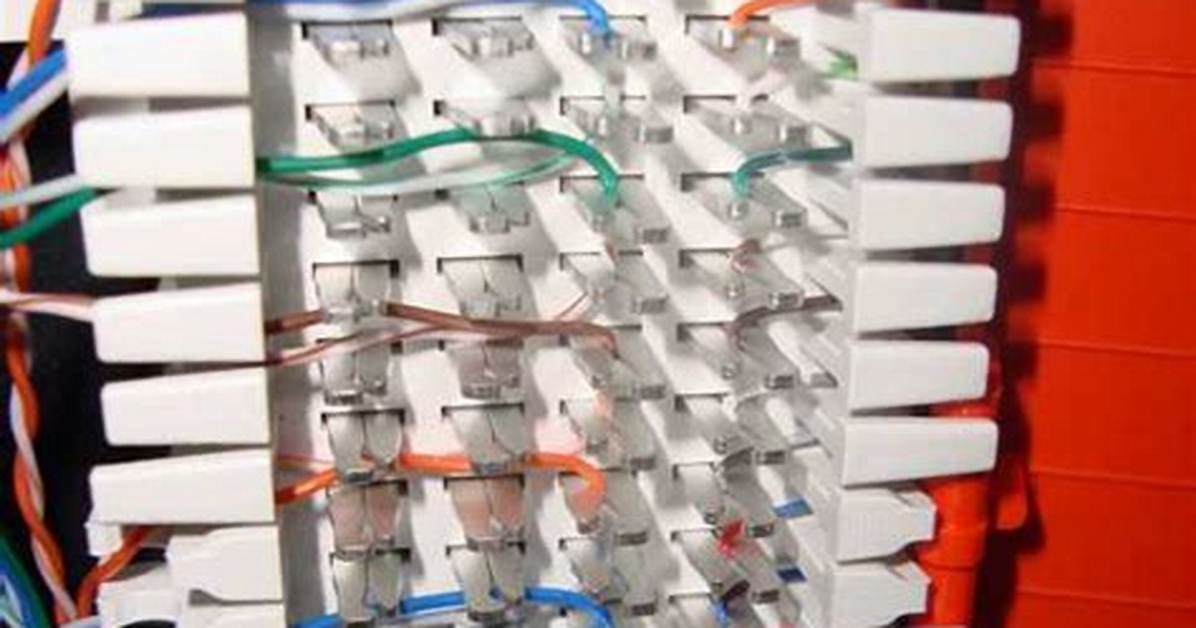

The term 66 block reflects its Western Electric model number. The 25-pair standard non-split 66 block contains 50 rows; each row has four (M) or six (B) columns of clips that are electrically bonded.
What is the difference between a 66 block and a 110 block?
Q: What is the difference between 110 and 66 type connections? A: 66 blocks were used for most telephone connections in the United States until about ten years ago when they were supplanted by 110 blocks. 110 blocks are smaller and provide a broader frequency bandwidth (100 MHz versus 16 MHz) than 66 blocks.
Are 66 blocks still used?
Split 50′ 66 blocks are still used as network interface blocks in distribution frames to interconnect circuits with bridging clips, but are primarily limited to narrowband circuits such as POTS/DSL, DS0, or DS1 circuits.
How do you make a 66 block?
On a 66 block incoming wires are typically punched down on the left side of the block starting from the top. Each wire is punched down to the first pin in a row with one wire per row. The order of the pairs is blue, orange, green and brown with the white wire from the pair being punched down on top.
What is a Bix block?
BIX connectors are rectangular punch-down blocks used to terminate up to 25 pairs. The connectors have a slip-in fitting which automatically strips the wire as it is punched down, eliminating the need for pre-stripping.
What is a 110 block used for?
A 110 block is a type of punch-down block used to terminate runs of on-premises wiring in a structured cabling system.
Can CAT5 be used for phone line?
CAT5 cable has four separate twisted pairs. Use the two wires in one of those pairs for your telephone connection. 10/100 base T Ethernet uses the green and orange pairs, specifically so that you can still use the blue and brown pairs for telephones.
How many wires can be terminated on a 110 block?
The block is a plastic base with slots for 50 individual wires, since it was originally designed for termination of 25 pair telephone cables. The block itself does not have any metallic contacts.
What is a 66 blade used for?
The punchdown tool blade (66 type) lets you terminate cable in a variety of cross-connect panels, blocks and keystone jacks.
Can you use a 66 block for Ethernet?
66 blocks are useless for Ethernet. Either a 110 block (if you need to patch a bunch of stuff to a bunch of other stuff and change things frequently) or a normal cat5e RJ45 modular termination panel. I believe 66 blocks are not officially Cat5 certified, only 110 blocks.
What voltage should a phone line have?
The POTS phone line, with all phones on-hook, should measure around 48 volts DC. Taking a phone off-hook creates a DC signal path across the pair, which is detected as loop current back at the central office.
How many pins RJ have?
Internally, RJ45 devices contain 8 pins and 8 wire positions used to handle signals or power, so they can accommodate 4 twisted wire pairs.
What are 66 block bridge clips?
66 Wiring Block Bridging Clips electrically interconnect adjacent terminals, within the same row, on 66 wiring blocks. The one-half inch long clip consists of a spring metal strip that forms a U shape allowing quick and easy insertion over the terminals of the block. Electrically interconnect adjacent terminals.
How do you daisy chain a phone line?
Daisy-chain wiring.
This method connects several telephone outlets to one circuit. In this system, the wiring begins at a wire junction connected to your phone service provider’s network interface jack and then runs from jack to jack. A daisy-chain wiring system is easily and quickly installed.
What is Bix connection?
The BIX Distribution Connector is a 25-pair connector. The connector’s symmetrical construction allows termination of cables on one side and cross-connect jumper wires or BIX Patch Cords on the other.
Which wire pair is the first to be terminated on a BIX connecting block?
Insert the white/blue, blue/white wire pair into the first position on the left end of the connector. Insert the violet/slate, slate/violet wire pair into the last position on the right end of the connector. 4 Use the BIX tool to terminate the cable and cut off the ends of the wires.
