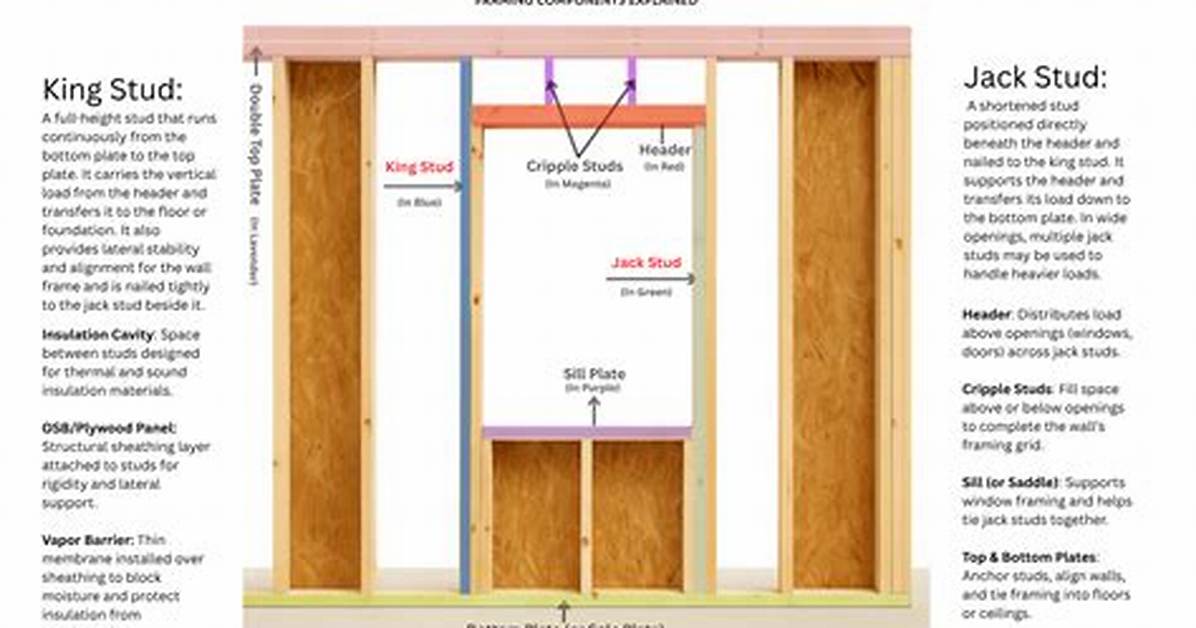

A jack stud is a vertical structural element that sits below and supports a header to transfer its loads downward to the bottom plate and ultimately to the structure’s foundation. Its length determines the header height and is critical for rough openings of windows and doors.
Why is it called a jack stud?
The jack stud is sometimes called a trimmer stud. The term “jack” derives from mid–16th century England, where it referred to a lad, knave, or common man: Jack: (1) A man of the common people, a lad, fellow, chap, especially a low-bred or ill-mannered fellow, a knave.
What is the difference between a jack stud and a king stud?
Door openings commonly have two king studs and two jack studs. A king stud is one that runs continuously from the top plate to the bottom plate. The jack stud is nailed to the king stud, but it’s shorter as it supports the structural header or the flat 2x material that you use for a door in a non-load-bearing wall.
What are jack trimmer studs?
A jack stud is a stud that has been cut down to be placed above and/or below an opening. The jack stud provides support to the lintel trimmer and sill trimmer.
Can you remove a jack stud?
If the jack studs are cut down, they probably need to be cut more than 3/4 inch total to accomodate shims to square the door in the opening. If you take out only 1/2 inch on each side, you have reduced the jack stud by 33%. If this is done in place, you are also stressing the remaining structure of studs, header, etc.
What is a top cripple?
In carpentry, the term “cripple” refers to a special-purpose wall stud or roof rafter. A cripple stud is located above a door or window or below a window. A cripple rafter runs from hip to valley on a roof or is cut short to allow for an opening such as a chimney or skylight.
What is the top plate?
A Top Plate is the continuous timber beam on top of the walls that supports the roof structure by carrying the vertical forces from the rafters to the wall studs.
How many jack studs do I need?
How many jack studs for a 12 foot opening:– as per general rules and guidelines, for a 12 foot garage door or opening, generally you will need 2 jack studs (trimmer) and 3 king studs at both end.
How far apart are studs?
The general spacing for wall studs is 16 inches on center, but they can be 24 inches.
How thick is top plate?
Plates shall be not less than 2-inches (51 mm) nominal thickness and have a width not less than the width of the studs.
What is the difference between a trimmer and a jack stud?
Trimmers are installed parallel to the primary floor or ceiling joists and support headers, which run perpendicular to the primary joists. It can also refer to a jack stud that supports a header above a window or door opening. Traditionally, a stud which was less than full length was sometimes referred to as a cripple.
What is the difference between a cripple and jack stud?
What’s the difference between a jack stud and a cripple stud? While a jack stud is used to support the weight of the header, a cripple stud is cut to add additional framing above the door or window opening, and below a window.
What are jack studs supported by?
A saddle (also called a sill or rough sill) forms the bottom of a window rough and supports the weight of the window. It’s a piece of 2x stock cut to fit between two jacks, laid flat, and nailed to the jacks. Cripple studs (cripples) are short studs sandwiched between the saddle and the bottom plate.
How do I make my rough opening door bigger?
The easiest way to make the rough opening bigger is to remove the jack studs. According to The International Residential Code on page 151, it is possible to replace the jack studs with approved framing anchors for instances requiring only one jack stud. There is a maximum of 3″ to be gained by this.
