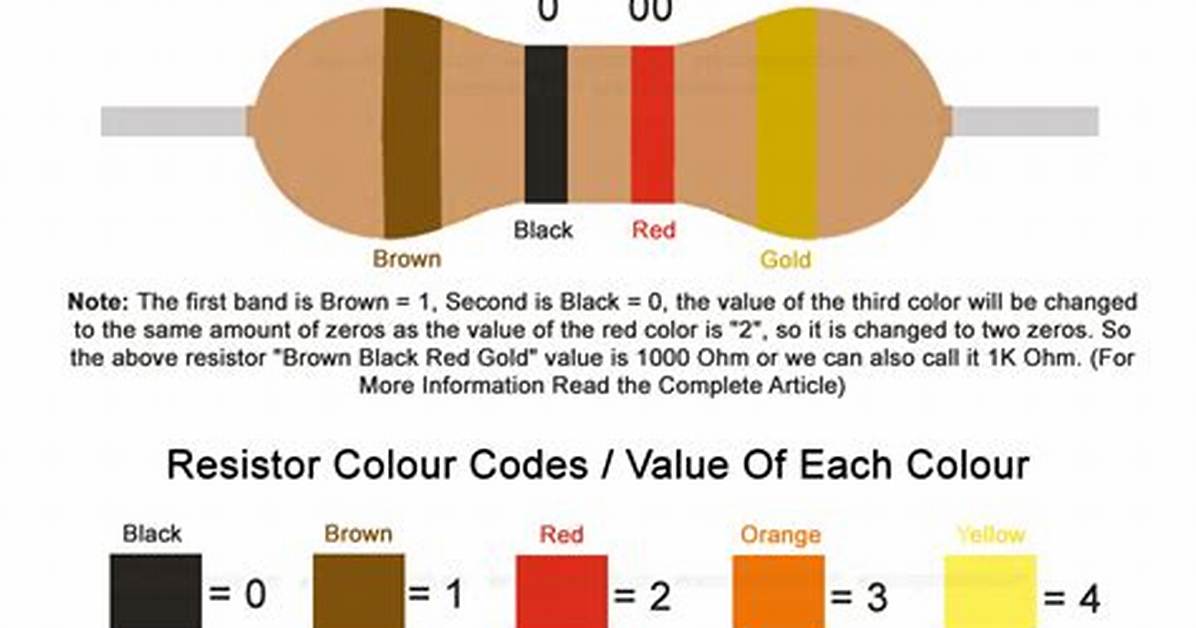

1 K Ohm colors are – Brown – black – red
Here is the color coding chart to determine the resistor values Resistors with four bands are > 1% tolerance resistors. Resistors with 5 band are 1% tolerance resistors.
What is resistor 1k?
So, a 1k Ω resistor has a value of 1,000 ohms and the number we will code is 1,000. There are three steps for coding a 1kΩ resistor.
What is 10k resistor color code?
The color code of the 10k ohm resistor with 5 band is brown – black – black – red – [Tolerance].
What are 10K resistors used for?
Commonly used in breadboards and perf boards, these 10K resistors make excellent pull-ups, pull-downs, and current limiters. To determine the value of a given resistor look for the gold or silver tolerance band and rotate the resistor as in the photo on the left.
What is 100K resistor?
100K Ohm 1W High Quality Carbon Film Resistor (CFR) with ±5% Tolerance and Tin Plated Copper Leads. 100K Ohm Resistor Color Code: Brown, Black, Yellow, Golden. Resistance: 100K Ohm, Power Watt, Approximate Maximum Current: 3.16mA.
What is the color code for a 560 ohm resistor?
560 Ohm Resistor Color Code: Green, Blue, Brown, Golden.
What is 220K resistor?
220K Ohm 2W High Quality Carbon Film Resistor (CFR) with ±5% Tolerance and Tin Plated Copper Leads. 220K Ohm Resistor Color Code: Red, Red, Yellow, Golden. Resistance: 220K Ohm, Power Watts, Approximate Maximum Current: 3.02mA . Price: Rs 3.90 ~ 3.60.
What is a 3k3 resistor?
3k3 Resistor color code / 3.300 Ω (Ohms) Three thousand and three hundred ohms / three point three Kilo Ohms.
What color is a 2K resistor?
2K Ohm Resistor Color Code: Red, Black, Red, Golden. Resistance: 2K Ohm, Power Watt, Approximate Maximum Current: 11.18mA .
What color is a 220 ohm resistor?
220 Ohm resistance is represented by Red, Red, Black code. Was this answer helpful?
What color is a 20K resistor?
20K Ohm Resistor Color Code: Red, Black, Orange, Golden. Resistance: 20K Ohm, Power Watt, Approximate Maximum Current: 3.54mA .
What are the colors used to code a 1500 ohms resistor?
For a 1K5 or 1500 Ω resistor with a tolerance of ±5%, the bands will be brown, green, red and gold.
What is the value of current through the 1K resistor?
3.6V across a 1K resistor will have a 3.6mA current circulating to it. Therefore 3.6mA is your current value.
How do I calculate voltage drop?
To calculate voltage drop:
Multiply current in amperes by the length of the circuit in feet to get ampere-feet. Circuit length is the distance from the point of origin to the load end of the circuit.Divide by 100.Multiply by proper voltage drop value in tables. Result is voltage drop.
How do you calculate amps in a DC circuit?
Ohms Law and Power
To find the Voltage, ( V ) [ V = I x R ] V (volts) = I (amps) x R (Ω)To find the Current, ( I ) [ I = V ÷ R ] I (amps) = V (volts) ÷ R (Ω)To find the Resistance, ( R ) [ R = V ÷ I ] R (Ω) = V (volts) ÷ I (amps)To find the Power (P) [ P = V x I ] P (watts) = V (volts) x I (amps)
