Unlike Mobitz I, which is produced by progressive fatigue of the AV nodal cells, Mobitz II is an “all or nothing” phenomenon whereby the His-Purkinje cells suddenly and unexpectedly fail to conduct a supraventricular impulse.

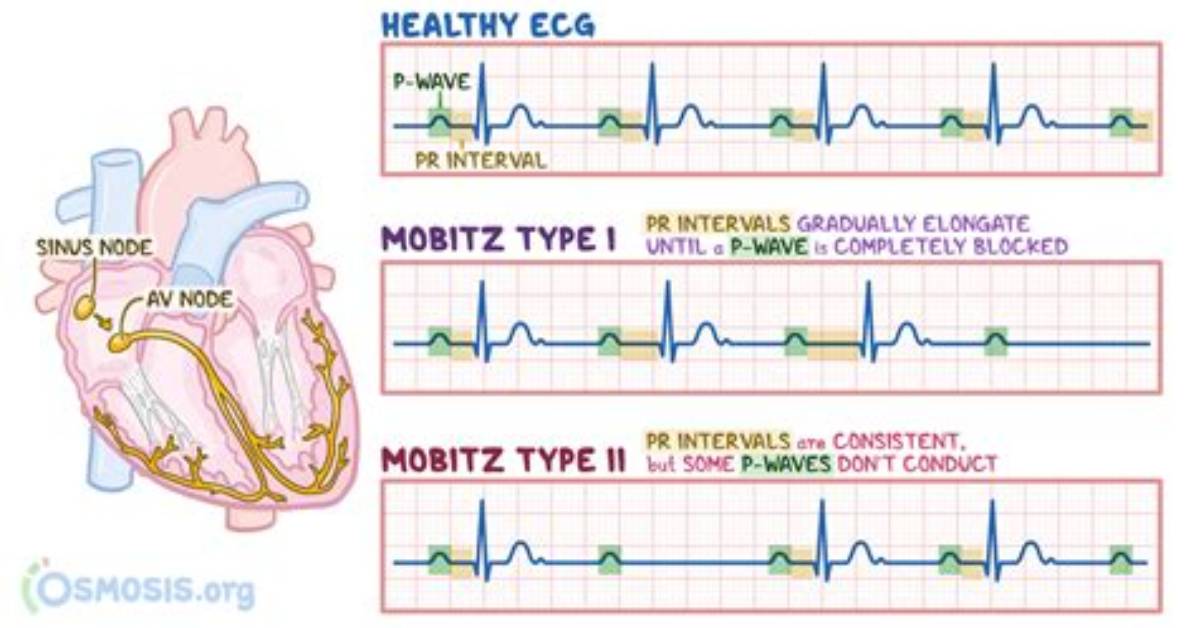

What is the difference between second-degree type 1 and type 2?
There are two non-distinct types of second-degree AV block, called Type 1 and Type 2. In both types, a P wave is blocked from initiating a QRS complex; but, in Type 1, there are increasing delays in each cycle before the omission, whereas, in Type 2, there is no such pattern.
How can you tell the difference between a second-degree block and a heart block?
In second-degree heart blocks, some impulses are conducted and others are not. The cause of the non-conducted P waves is related to intermittent AV nodal block. The difference between the two second-degree blocks is related to the pattern in which the P waves are blocked.
What Mobitz 1?
In second-degree atrioventricular nodal block — also known as Wenckebach block or Mobitz Type I AV block — varying failure of conduction through the AV node occurs, such that some P waves may not be followed by a QRS complex. Unlike first-degree AV nodal block, a 1:1 P-wave-to-QRS-complex ratio is not maintained.
What is Mobitz II?
Mobitz II second-degree AV block is characterized by an unexpected nonconducted atrial impulse, without prior measurable lengthening of the conduction time. Thus, the PR and R-R intervals between conducted beats are constant.
How common is Mobitz 1?
First degree and Mobitz type 1 heart blocks are uncommon but not rare. It is estimated that 0.5-2% of otherwise healthy adults have these types of heart blocks.
Is Mobitz type 2 regular or irregular?
Type II, also called Mobitz Type II: While most of the electrical signals reach the ventricles every so often, some do not and your heartbeat becomes irregular and slower than normal.
Is 1st degree AV block serious?
Traditionally, first-degree AV block has been considered a benign condition. However, epidemiologic data from the Framingham Study have shown that first-degree AV block is associated with increased risk of all-cause mortality in the general population.
How long is a QRS complex?
The normal duration (interval) of the QRS complex is between 0.08 and 0.10 seconds — that is, 80 and 100 milliseconds. When the duration is between 0.10 and 0.12 seconds, it is intermediate or slightly prolonged. A QRS duration of greater than 0.12 seconds is considered abnormal.
How do you measure QRS interval?
To measure the QRS interval start at the end of the PR interval (or beginning of the Q wave) to the end of the S wave. Normally this interval is 0.08 to 0.10 seconds. When the duration is longer it is considered a wide QRS complex.
Does Mobitz 1 need a pacemaker?
Conclusion: Mobitz I block is not usually benign in patients ⩾ 45 years of age. Pacemaker implantation should be considered, even in the absence of symptomatic bradycardia or organic heart disease.
Is Mobitz Type 1 regular?
Mobitz type I is a type of 2nd degree AV block, which refers to an irregular cardiac rhythm (arrhythmia), that reflects a conduction block in the electrical conduction system of the heart.
What is a 2 1 AV block?
2:1 atrioventricular block is a form of second-degree AV nodal block and occurs when every other P wave is not conducted through the AV node to get to the ventricles, and thus every other P wave is not followed by a QRS complex.
Is Mobitz type 2 constant?
In Mobitz type II there is a constant PR interval across the rhythm strip both before and after the non-conducted atrial beat. Each P wave is associated with a QRS complex until there is one atrial conduction or P wave that is not followed by a QRS.
What causes 2nd degree AV block?
Second-degree heart block may be caused by: Natural aging process. Damage to the heart from surgery. Damage to the heart muscle from a heart attack.
What is 2nd degree AV block type 2?
A second-degree type II AV block indicates significant conduction disease in this His-Purkinje system and is irreversible (not subject to autonomic tone or AV blocking medications). This is a very important distinguishing factor compared to second-degree type I AV block.
