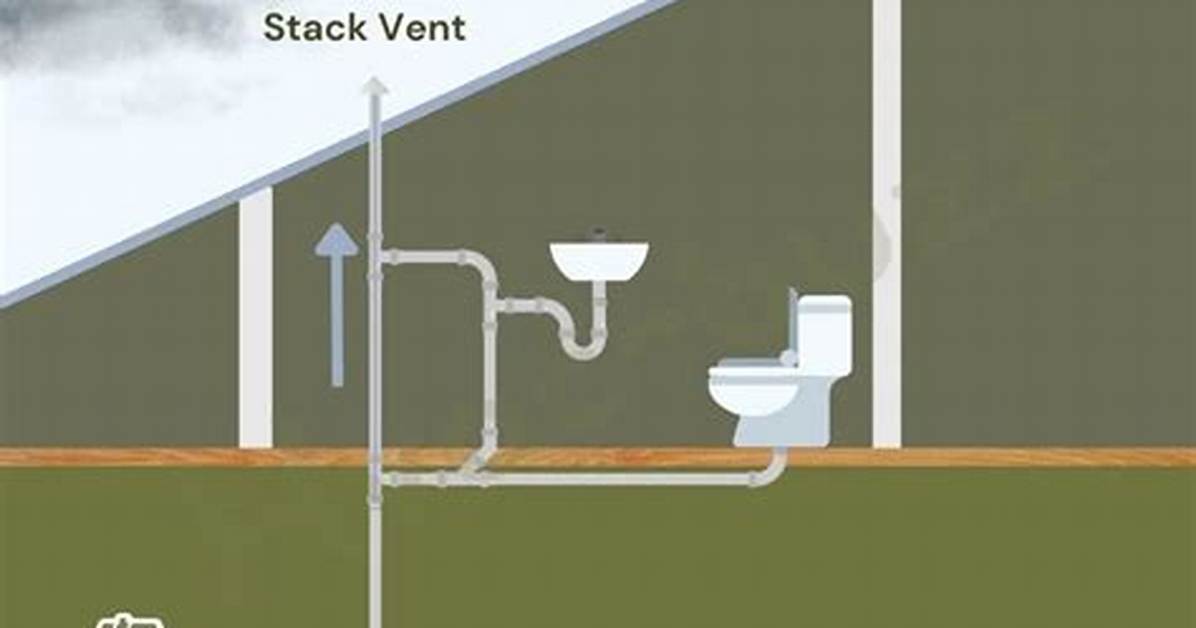

A vent stack is a vertical pipe that is only used for venting, and runs upward from the drain piping to the open air outside the home. Vent stacks are primary vents and accept connections from other vents in a plumbing system. A stack vent is used for both drainage and venting.
How do you identify a vent stack?
Use a flashlight if there are no lights. Virtually any large diameter pipe found in an attic that is running up through the floor will be a vent pipe. It will look much like a toilet drain pipe and will either stop in the attic and be capped, or will continue straight up and through the roof.
Can a main stack be used as a vent?
A true vent is a vertical pipe attached to a drain line that travels through the roof with no water running through it. If a fixture is close to the stack and on the top floor, the upper part of the stack serves nicely as a vent.
Can a vent stack terminates in attic?
Yes, a plumbing vent can terminate in the attic. But it must have an air admittance valve at the termination to keep noxious sewer gas fumes from rising into the attic.
How many vent stacks should a house have?
At least one main vent stack is required for every building that has plumbing when connecting separately to the sewer for the building or its septic tank. The stack has to run the most direct route through open air or be ventilated to extend to open air.
Does a toilet need a vent stack?
“Does a toilet need a vent?” And the answer is yes, your toilet has to have a vent. For more information on the great importance of plumbing vents, read our plumbing vent article here. And the size of this vent pipe depends on your local plumbing code.
Can plumbing vents be combined?
Vent pipes shall be extended separately or combined, of full required size, not less than 6 inches (152 mm) above the roof or fire wall.
What is the purpose of a stack vent?
A plumbing vent, or a vent stack, regulates the air pressure within your home’s plumbing system. They’re comparable to drain pipes, which remove waste and water from your home; plumbing vents remove the gas and odor from your home. This also allows fresh air into the system, which improves pipe drainage and water flow.
Can plumbing vents run horizontally?
There is no problem with running your vent pipes horizontally as long as you remember that there should be a minimum clearance of 6 inches above the spill line. What is a spill line? This is the level where the water starts to overflow from the rim of the sink, toilet, or tub.
Can I use a vent pipe as a drain?
The vent that services a fixture must have a diameter at least half as large as the drain pipe, but the minimum pipe diameter allowable is 1 1/4 inches. It’s common to use a 1 1/2-inch vent for a 2-inch drain because that ensures that the drain will get enough air.
Why does my attic smell like sewer?
The most common cause of sewer gas smells in your house is a leak in your plumbing. You’ll want to prevent even small leaks to avoid major plumbing repair costs. Sewer gas smells could be coming from your pipes either because they weren’t installed properly or were damaged.
How close does the vent have to be to the toilet?
According to the UPC, the distance between your trap and the vent should be no more than 6 feet. In other words, for the vent to work properly, it needs to feed into the drain line within 6 feet of the trapways that connect to it.
What happens if you don’t vent a drain?
Poorly-vented drain lines will not be able to effectively move wastewater and solid waste out of your building. This could lead to problems such as overflowing drains, backed-up toilets, and similar plumbing issues.
Can 2 toilets share the same vent?
The waste lines can usually be tied into the same stack if the house has more than one toilet. They may need their own stack if they are on opposite sides. Two vent openings on the roof are needed since the stacks must be vented.
Can a toilet and shower share the same vent?
So yes the shower can also be vented by the wet vent along with the toilet. There is one major stipulation when wet venting multiple fixtures when a toilet is one of them: the toilet must be the last fixture connected to the wet vent.
How much does it cost to clear a vent stack?
Legacy Plumbing charges an additional $184 to unstop a main line using an exterior clean out, $273 to clear the drain through a drain vent on a one-story roof, and $399 if they need to pull a toilet and use drain cleaning equipment.
