The cable you run from the main panel to the subpanel also depends on the amperage rating. You can use 10 AWG, three-conductor wire for a 30-amp panel, but for a 60-amp one, you need 6 AWG wire. If you’re installing a 100-amp panel, you need 4 AWG copper or 2 AWG aluminum three-conductor cable.
What size wire do I need for a 100-amp subpanel?
The cable must have a wire gauge sufficient to the amperage of the subpanel—a 100-amp subpanel requires #4 copper wires or, more commonly, #2 aluminum wires, for example. (Aluminum is often used for feeder cables because the cost is typically much lower than that of copper wires.)
How many wires do I need for a subpanel?

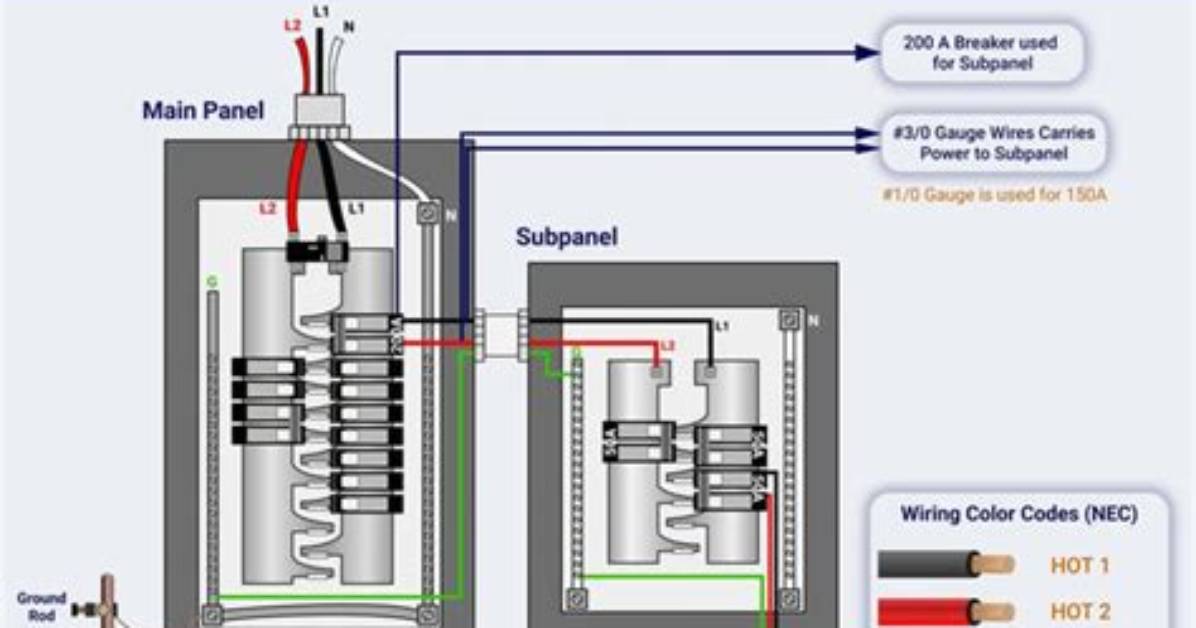

A subpanel requires two hot wires connected to a 240-volt double-pole breaker in the main panel. It also needs a neutral wire and a ground wire. The cable used for this run is known as a “three-wire cable with ground.” The two hot wires, called feeder wires, will provide all of the power to the subpanel.
Can you run a 100 amp sub panel off a 100 amp main panel?
First the panels you are looking at that are rated 100A simply means you can use them for any application up to 100A. You can for example add a 60A breaker to your existing panel and protect the new subpanel with a 100A rating.
How far can subpanel be from main panel?
The right feet would be between 4.5 to 5 feet.
The cable running from your main panel to the subpanel depends on the amperage rating. For instance, for a 30A panel, use a 10 AWG, three-wire conductor.
Does a subpanel need a neutral?
The neutral and ground MUST NOT be bonded at a sub-panel. They should only be bonded at the main service panel. If you bond them anywhere other than the main service, the neutral return current now has multiple paths, including though your ground wire.
What is the 6 throw rule?
The “six breaker throw rule” was a requirement in the National Electrical Code that a service must have have a main disconnect that shuts off all power and it cannot take more than six switch throws to do it, and the main disconnect(s) also must be clearly marked, as in the photo above.
Can you wire a subpanel with 3 wires?
Another way to wire a subpanel was with a three-wire feed; two hots and a neutral, with grounds and neutrals connected together at the subpanel. In this case, the grounds and neutrals have to be connected together.
What wire size do I need to go 100 feet for a 100 amp service to a workshop?
For a 100 ampere circuit, the conductors will likely be required to be 3 AWG copper or 1 AWG aluminum.
Do you need a ground rod for a sub panel?
Yes, any sub panel outside of the main building requires it’s own ground rod and a ground wire back to the main building. And yes, a sub panel in the same building as the main does not need a ground rod – only the ground wire.
Can you feed a 100 amp sub panel with a 50 amp breaker?
It’s the same with subpanels: The “100A” is a maximum rating. Do not exceed 100A. However, you certainly should exceed your feed-breaker size of 50A. Even if 50A panels existed, they would be very small in terms of numbers of spaces.
Can you wire a subpanel from a subpanel?
You will need 4 wires, as others have mentioned. Keep the ground and neutral separate in the subpanels. The only place they should be bonded is in the main panel. You will need ground rods at the new location.
Can a main panel be used as a subpanel?
There’s no problem with having a main breaker in a subpanel. It’s required if your panel is in a separate building and has more than six breakers, but there’s nothing prohibiting it in any other case.
What size wire do I need for 50 amp?
50 AMP Wire Size
For a maximum of 50 amps, you’ll need a wire gauge of 6. Fifty amp breakers are most often used to power many different appliances. However, a kitchen oven can alone require 50 amps. Many electric dryers also require a 50 amp breaker.
How many sub panels are allowed?
Final Thoughts on Subpanels
Even though there is no limit on the number of subpanels that you can add to a circuit, it shouldn’t exceed 160 amps when you’re using a 200 amp main panel. Always follow this guide to install subpanels effectively.
How much load can a 100 amp panel handle?
In other words, a 100-amp electrical service should be expected to provide no more than 19,200 watts of power load at any given time.
How many breakers can you put in a 100 amp panel?
Typical 100-amp panels have 20 circuits, meaning they can handle 20 full-sized breakers. 20/24 panels can hold 16 full-sized and 4 twin breakers (24 circuits in total). The number of breakers can max out to 30-42, too, depending on the design of your 100-amp pane.
