Cubic Feet per Minute (CFM)
Cubic feet per minute is calculated by multiplying the size of the HVAC unit (in tons) by 400. Divide the answer by your home’s square footage to find out total CFM. A duct sizing calculator uses CFM and other factors to determine what you need.
How many CFM is a 6 round duct?
“For example, most techs will tell you that a 6” duct will provide about 100 CFM.”
What size ductwork do I need for a 3 ton unit?
Multiply the tonnage, 3.5, by the total BTU per ton and this will give you the total BTU rating. Multiply 6 x 42 to determine the duct size of 252 square inches The clear are of the duct must be at least 252 square inches This measurement also includes the opening in the floor at the bottom of the return.
What happens if ductwork is oversized?
Using oversized ducts will erode the system’s efficiency, while undersized ducts won’t carry the necessary volume of air. Balanced airflow. To maintain neutral pressure in the HVAC system and throughout the house, the duct system must deliver and return a matching volume of air.
How many CFM is a 4 inch duct?

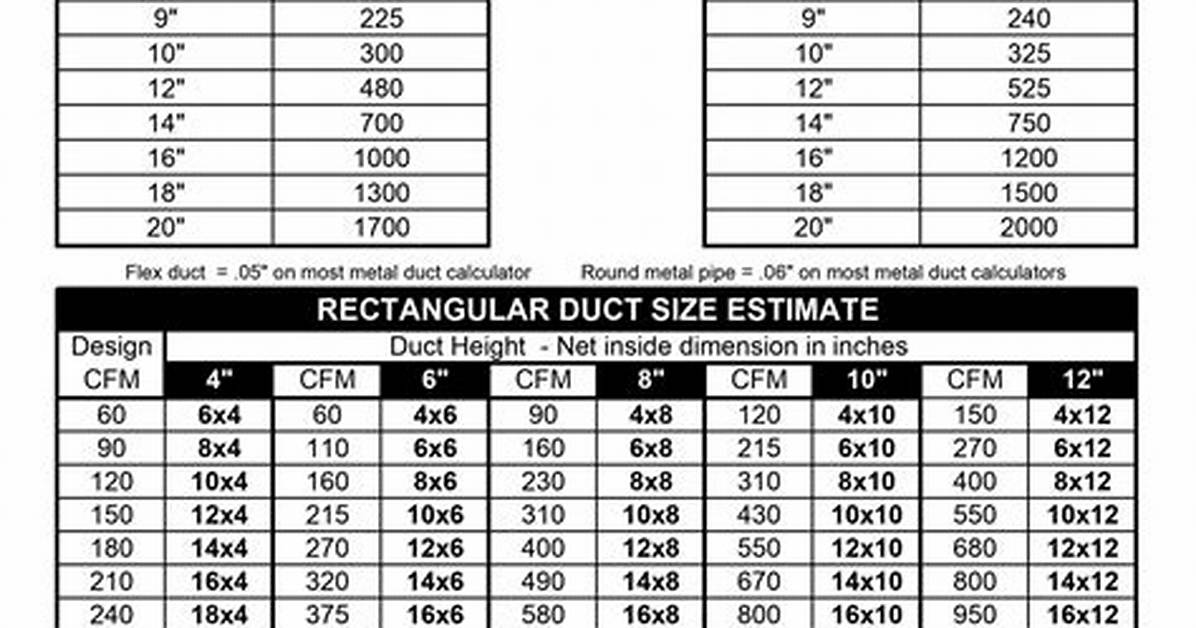

Reviewing the chart, a 4” pipe will convey 395 CFM at 4500 FPM. This means that a 4” pick-up on a machine will use 395 CFM from the filtering system; or, if you know that a machine will require approximately 400 CFM to remove the waste, you should use a 4” pipe for that purpose.
How big should return duct be?
A typical return vent is 16 inches by 20 inches, according to Hunker.
How many CFM does a 7 inch duct?
Flex duct moves less air than hard pipe, if you look at 7″ hard pipe on the duct Calculator you will see that at 900 FPM and . 05 static you will see it moving around 125 to 130 CFM.
How do I know what size flex duct I need?
Measure the length and width of the room where the flex duct will be supplying the air. Multiply the length and width together to get the square footage of the room. For example, a 10-by-10 room will be 100 square feet.
What size duct do I need for a 12×12 room?
A 12×12 foot room will need a 4×8 inch supply duct to get an adequate CFM rate, which is about 144 CFM. However, these figures are just “rule of thumb” measurements and will differ based on various factors of your home and HVAC system.
How far can you run 6 inch duct?
When you go from 6″ round to 6″ oval, you get 110′ of equivalent length. Wow! That means that a fitting that is somewhere around 1′ in actual length reduces the air flow as much as 110′ of straight 6″ duct.
What size ductwork do I need for a 5 ton unit?
What size ductwork do I need for a 5 ton unit? Using this approach, two 20-in. x 25-in. return grilles will be the right choice for a five-ton HVAC system in order to actually deliver 2,000 cfm back to the blower without causing the return to hemorrhage.
What size duct work do I need?
The size of your duct work depends not just on the size of your entire house but also on the size of each individual room. Thus, one needs to gauge the square footage of the entire house as well as that of all the different rooms in order to decide duct work sizing.
