Fernco (Rubber) fittings are not approved in wall framing unless they have a metal sheathed hose clamp assembly covering the entire fitting as part of the design, Which limit them to straight couplings or reducing couplings. The reason is that vermin can chew through the rubber.

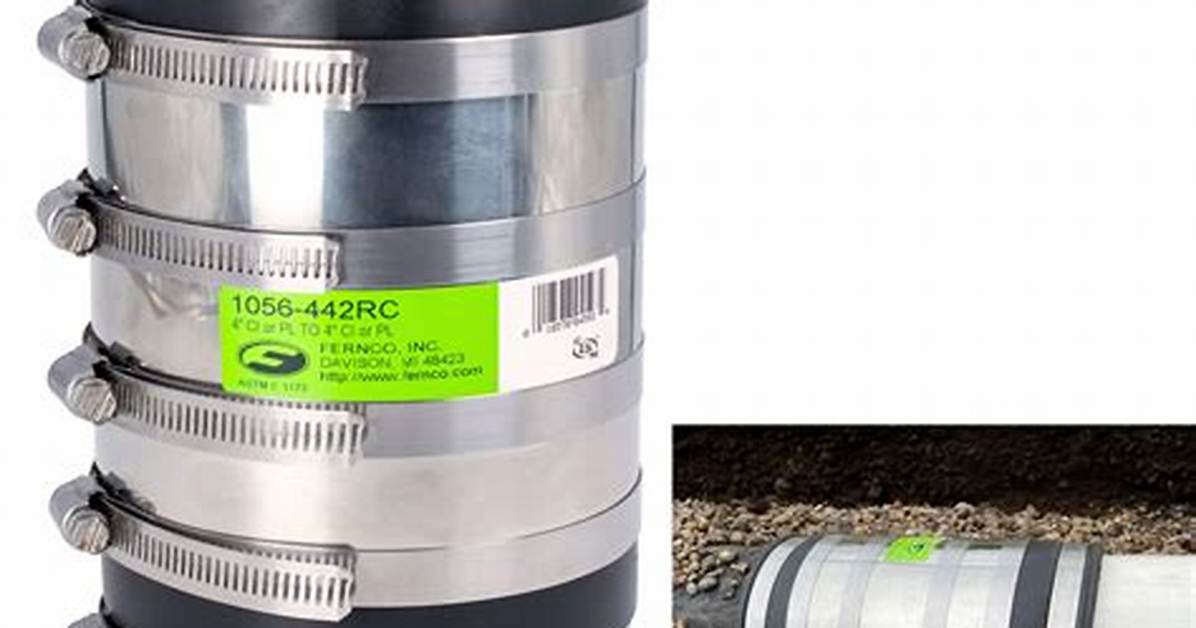

What is a Fernco fitting?
Fernco pipe couplings and adapters are used for all types of in-house and sewer connections: drain, waste, vent piping, house-to-main, repairs, cut- ins, conductor, roof drains and increasers-reducers. Manufacturing thousands of different flexible coupling types, Fernco has the right solution for most applications.
Do rubber couplings meet code?
They’re accepted by a number of codes — including the Uniform Plumbing Code and the International Plumbing Code — for both above- and below-grade use. I’ve installed many of these couplings above and below grade and have never encountered a problem.
Can a Fernco be used horizontally?
Under our code, we can use fernco’s where ever we feel, horizontal, vertical, diagonal, inverted, right side up, what ever you want to call it, we can use them there.
What does Fernco mean?
1. a flexible coupling used to connect pipes together.
Can you cut a Fernco coupling?
Fernco flexible couplings can be used to couple pipe at a break or lateral insertion. Cut and remove pipe section.
Can Fernco couplings be used under pressure?
For pressure pipe do this only if the pipe on both sides of the rubber coupling is firmly clamped in place and will not move or you use a method to prevent the rubber coupling from coming apart. I only use them on the pressure side for temporary situations and always lock them down.
What does a rubber coupling do?
Rubber Couplings are used extensively in many industrial applications, especially with engines. Mainly used for their torsionally soft properties and damping effect on troublesome vibrations. There are some drawbacks of rubber couplings: Rubber materials used in these couplings are subject to degradation over time.
What is no hub coupling?
Medium and Heavy Duty Couplings. Intended for use with DWV systems, no-hub couplings are used to join cast iron soil pipe that does not have the traditional Hub and Spigot. They are normally installed using a torque wrench. Generally, they have more clamps and provide a greater band load than standard no-hub couplings.
How do you tie an existing drain pipe?
How to Tie Into Existing Drain Line
Step 1 – Cut Out Old Pipe. Remove a section of the existing pipe to the same size of the pipe you want to add in. Step 2 – Insert Couplings. Slide a coupling onto both sides of the remaining pipe. Step 3 – Lay in New Pipe. Step 4 – Tighten Couplings. Step 5 – Test for Leaks.
Can you tie into existing sewer line?
The most common way to connect a new drain, vent, or supply line to an existing line is to install a tee fitting. To do so, shut off water to existing supply pipes and drain the lines. Flush all toilets and caution others not to use drains.
Can you bury a Fernco fitting?
A unshielded fernco should never be buried. Instead use a shielded coupling that is meant for direct burial in dwv.
Can no hub couplings be used underground?
Underground Installations
Q: Can I use hubless cast iron soil pipe and fittings below ground, and is there anything special I need to do to protect the couplings? A: Hubless cast iron soil pipe and fittings are allowed for underground installations by all of the model codes.
Can you use rubber coupling on ABS?
The proper way to use a transition coupling consists of a neoprene rubber sleeve that fits over each pipe. It’s then held tight with a stainless steel metal jacket and integral clamps. The coupling will be labeled as to which type of pipe (plastic ABS and PVC, steel, cast iron, copper) each end can be fastened to.
