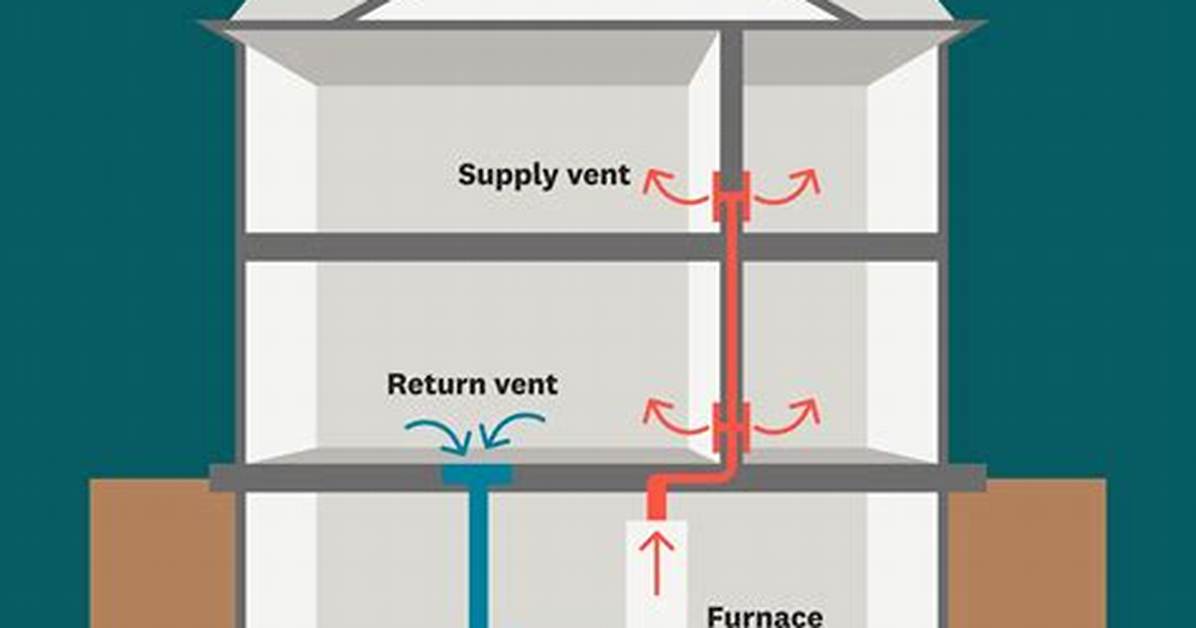

Return vents: What is a return vent? These vents suck the air from each room and send it back to the air conditioning or heating system. Return vents tend to be bigger than supply vents, and you won’t feel any air coming from them. When an HVAC system delivers air to a room, it increases that room’s air pressure.
Where should a return air vent be located?
Return air vents are generally located near the center of the homes. Older and newer homes often have one register per floor, but homes built from 1960-1990 may have a cold return air vent in each room.
Are return air vents important?
Your AC’s return air vent is a critical component of an HVAC system and serves several purposes. Not only do return air vents maintain your home’s air pressure and filter out debris, they can also serve to save you on energy costs and expenses, which is important here in hot and humid Gainesville, Fla.
Is it OK to cover a return air vent?
Avoid covering your cold air return vents with curtains, drapes or rugs. Always check your air filters and replace them when needed. Clogged air filters can also cause cold air return blockages.
Do all rooms need a return air vent?
Does Every Room Need Air Return Grilles? While it is a myth that air return grilles are required in each and every room in the house, it is definitely necessary to have more than one of these grilles installed at strategic places in the house. The most important place to have these would be the bedroom.
What is the purpose of cold air return vents?
The return registers draw stale air into the ductwork, where it’s pulled through the filter to capture dust and debris and then delivered back to the HVAC equipment for reconditioning. However, the most important function of the cold air return registers is ensuring ample airflow through the HVAC system.
What happens if there is not enough return air?
If there is not enough return air available, your HVAC system will not heat or cool properly. They must be properly sized — Return air ducts must be large enough to carry a sufficient amount of expended air back to your furnace, air conditioner, or heat pump.
How big should my return air duct be?
Generally, if you are using a Duct Sizing Chart or calculator (such as the Trane Ductulator), size the re- turn ducts for 0.05 inches/100 ft (0.40 Pa/m) based on the expected airflow through that return air duct. The total sum of air from all the returns should be at least 250 CFM/nominal ton (33 l/s per-kW).
How many return vents should a house have?
Your Home Might Not Have Enough Return Vents
Having several return vents (ideally one in every room, but even two or three is better than just one) creates consistent air pressure. If you have one return vent, your home is fine. Keep the doors to each room open so air can properly circulate.
How do you tell if a vent is a return?
You can identify return vents by turning on the system fan and holding your hand or a piece of paper up. If the paper is pulled toward the vent or you feel a suction effect, it’s a return vent.
Should return air vents be high or low?
For optimal efficiency, it’s ideal to have return registers installed. To ensure efficiency during the cooling season, your home should have high registers. High return registers draw hot air that rises to the ceiling back into the system to repeat the cooling cycle.
What does a return air grille do?
An air return is a vent grille that is usually located either in a hallway or in the ceiling, and its purpose is to extract air from a room and recycle it through the system to further condition it by cooling or heating. Air returns don’t have a damper as they need to allow free flow of air into the vent.
What happens if you block a cold air return?
In the heating cycle, blocked cold air returns can cause the heat exchanger inside the blower compartment to store too much heat and eventually crack. If the cracks are too large, the furnace can emit carbon monoxide into your home’s air.
Can you block a cold air return vent?
Effects of Covering Return Vents
This can cause issues inside your system, damaging components that are costly to repair. Blocked return vents make your system less energy efficient, which increases your utility bills. The system often works harder, and it can damage and crack the ductwork, allowing air to escape.
Can I put furniture in front of a return vent?
Home Inspection Insider explains that an air return vent needs 6-12 inches of space in front of it, and recommends that you do not put large, bulky furniture like couches and bookshelves in front of an air return vent.
Should bedrooms have air returns?
Each bedroom needs either: A return air grille ducted back to the furnace; A through-the-wall transfer grille connecting the bedroom and the adjacent hallway; or. A crossover duct (a jumper duct) connecting a ceiling grille in the bedroom with a ceiling grille in the hallway.
Why is there a return vent in my bedroom?
To put it as simply as I can, return air vents suck air from the rooms in your house in order to return it back to the heating and cooling system through your ductwork. It is then heated or cooled once again before being pushed back into your house to make you comfortable.
Do you need a filter in a return vent?
In general, it is recommended to have an air filter in every return vent (as long as you choose the one of the right size and thickness). The filters will improve the air quality in your house and will protect the HVAC equipment from dust, pollen, pet dander, and hair.
