Class C service requires pilots to establish two‐way radio communications before entering Class C airspace. If the controller responds to a radio call with, “(a/c call sign) standby,” radio communications have been established and the pilot can enter Class C airspace.
Is Class C airspace controlled?
Why Class C Exists
Controlled airspace is largely dedicated to protecting IFR aircraft from traffic conflicts, and that’s no exception inside Class C. With a large volume of instrument traffic arriving and departing Class C, it can be thought of as the second most restrictive form of airspace found around an airport.
How wide is Class C airspace?
Basically, all Class C airspace is the same. The inner core is a 5NM radius of the primary airport from the surface to 4,000 feet above the primary airport. The outer ring is a 10 NM radius shelf that starts (at least) 1,200 feet above the primary airport.
Where is Class C airspace?
Class C Airspace is generally that airspace from the surface to 4,000 feet above the airport elevation (charted in MSL) surrounding those airports that have an operational control tower, are serviced by a radar approach control, and have a certain number of IFR operations or passenger enplanements.
What must you do before entering class C or D airspace?
1) Call ATC on the radio before you’re in Class D and tell them:
Your position.Altitude.Current transponder code.Your destination/intentions.
Do you need clearance for Class C airspace?
A separate and specific clearance is always required for Class B airspace. Even if you are receiving advisories from the Class B controller outside the Bravo, it does not constitute a Class B clearance. Class C airspace never requires a separate clearance.
What is the normal ceiling of Class C airspace?
The ceiling of a Class C airspace should be 4,000 feet above the primary airport’s field elevation. The airspace within the 5 NM circle shall extend down to the surface. The airspace between the 5 and the 10 NM circle(s) shall extend no lower than 1,200 feet AGL.
What is the primary difference between Class A and Class C airspace?
Only IFR flights are permitted and they require ATC clearance. Class A airspace exists in the Northern Oceanic Transition Area (NOTA) and the Southern Oceanic Transition Area (SOTA). Class C: This is the controlled airspace above 7,500 feet and surrounding major airports.
Is Class C airspace AGL or MSL?
The right diagram shows how the airspace is depicted on the aeronautical chart. The ceiling of the Class C airspace is 4,500 feet (MSL). This is calculated as runway altitude of 500 feet plus 4000 feet. The floor of the outer shelf is 1,700 feet MSL.

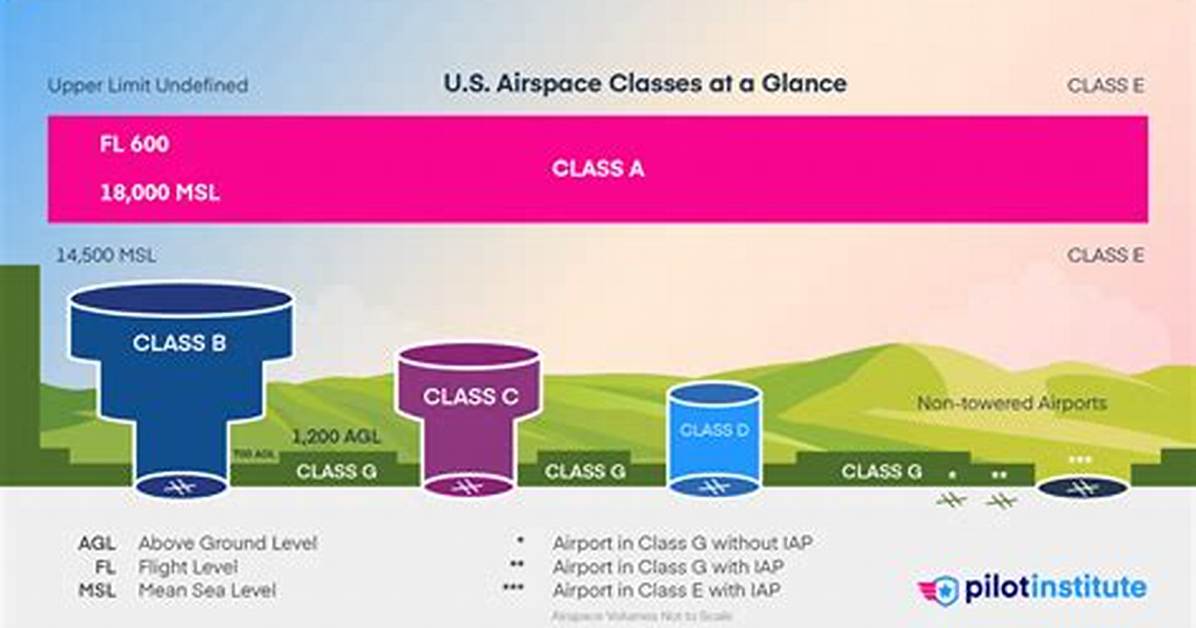

What does Class C airspace look like?
Class C Airspace Overview
Class C Airspace, indicated by a solid magenta line. Class C Airspace shows up on the map around larger airports as a solid Magenta line. They have a layer similar to class B airspace, but on a smaller scale and typically with only one other shelf.
What is a Class C airport?
Class C airspace areas are designed to improve aviation safety by reducing the risk of mid-air collisions in the terminal area and enhance the management of air traffic operations therein. Aircraft operating in these airspace areas are subject to certain operating rules and equipment requirements.
Can you fly over Class C airspace without ads B?
Pilots: Do you need ADS-B when flying under a Class B or Class C airspace shelf? If there is no Mode C Veil, ADS-B is not required to fly under a shelf of Class B or C airspace. If there is a Mode C Veil, ADS-B is required to fly under the shelf.
What is the outer area of Class C airspace?
Class C airspace areas have a procedural Outer Area. Normally this area is 20 NM from the primary Class C airspace airport.
Do you need permission for Class D airspace?
You don’t need clearance or any permission to enter class C, D, or E controlled airspace. No “permission” needed to enter, but two-way communication with your tail number must be established.
