Tandem breakers are safe and legal to use only when the panel is designed for them and only in the slots that accept tandem breakers. Look at the manufacturer’s labeling on the inside face of the panel door.
What is a tandem breaker for?

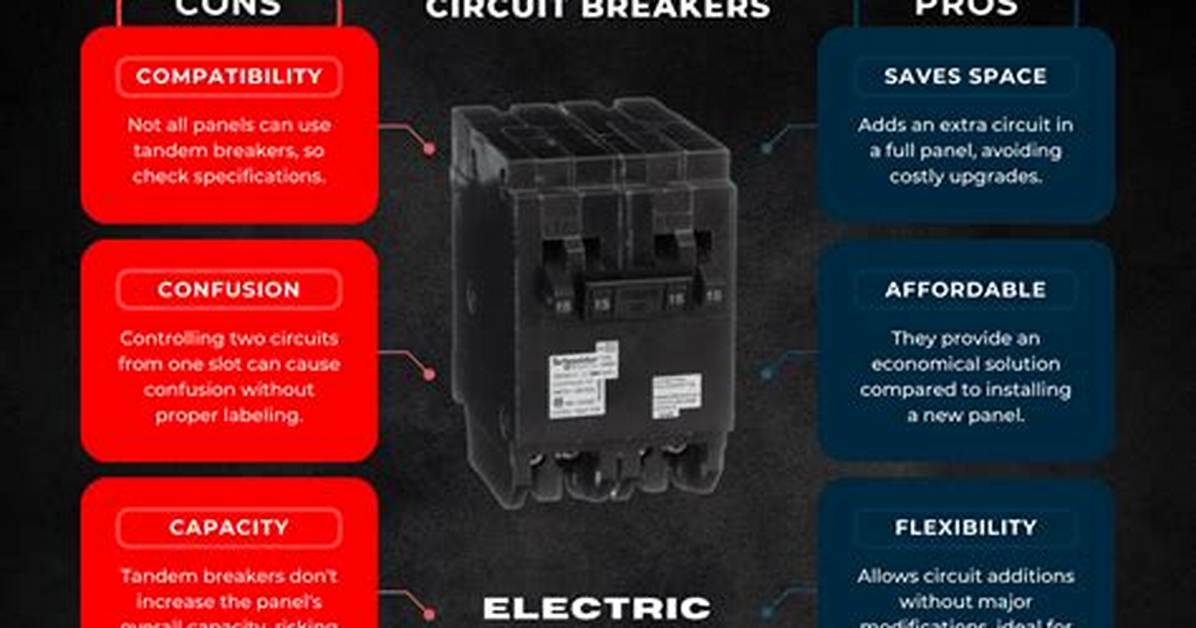

A special kind of circuit breaker is the tandem breaker, which is designed to allow two 120-volt circuits to be fit into a single slot in the circuit breaker box. They are normally installed in situations where the breaker box is already full with no available slots for additional circuit breakers.
How many tandem breakers can you put in a panel?
Up to 10 tandem circuit breakers can be used. G3030BL1150 = 30 spaces, 30 total circuits allowed.
Are tandem breakers a good idea?
The use of tandem circuit breakers is a perfectly acceptable practice, as long as the panelboard is designed for tandem circuit breakers and they’re installed in locations within the panelboard where they’re allowed.
How do I know if my panel accepts tandem breakers?
Check the Panelboard’s Diagram
Those that allow for tandem breakers will feature a single line inside the slot. Another way of showing this will be a diagram that has one single line, representing the entire panel, with individual lines sprouting off it, representing the breakers.
What are piggyback breakers?
A double circuit breaker takes the space of a single circuit breaker on a panelboard. Depending on local customs, they are called duplex, slimline, twin, half-height, half-inch, double and waferbreakers.
Can I use a tandem breaker for 220v?
Tandem Circuit Breaker
A 220 volt circuit will be double-pole and take up two slots. Tandem circuit breakers are a workaround to this normalcy, and it will put two 120-volt circuits in one slot. The circuits rest side-by-side within one body, and each circuit has its own toggle switch.
Can two wires go on one breaker?
When it’s NOT a defect: Double tapped wiring is ok if the circuit breaker is designed for two conductors. If a circuit breaker is designed for two conductors, it will say so right on the circuit breaker, and the terminal of the circuit breaker will be designed to hold two conductors in place.
Can you feed a 100 amp sub panel with a 60 amp breaker?
You can feed a 100 Amp panel with a 60 Amp breaker. Keep in mind that the sub panel needs to be rated above the breaker size.
Can you run a 100 amp sub panel off a 100 amp main panel?
First the panels you are looking at that are rated 100A simply means you can use them for any application up to 100A. You can for example add a 60A breaker to your existing panel and protect the new subpanel with a 100A rating.
Can you feed a 100 amp sub panel with a 50 amp breaker?
It’s the same with subpanels: The “100A” is a maximum rating. Do not exceed 100A. However, you certainly should exceed your feed-breaker size of 50A. Even if 50A panels existed, they would be very small in terms of numbers of spaces.
Can you replace a double pole breaker with two single pole breakers?
Can I replace a double pole breaker with two single pole breakers? Two pole breakers to one pole breaker. You’ll have to return to the double-pole breaker if you decide to use the red wire again. Two single-pole breakers can’t be used for a multiwire circuit.
Do they make tandem GFCI breakers?
Nor are tandem breakers currently available in GFCI models, so in situations where a circuit requires either AFCI and/or GFCI protection, the only option is a standard circuit breaker. Tandem circuit breakers are not an option in these circumstances.
How much does it cost to split a circuit breaker?
Nationally, the average cost for having an electrician replace a bad circuit breaker switch is $100 to $160, including labor and materials.
How much can I put on a 15 amp circuit?
Technically, you can have as many outlets on a 15 amp circuit breaker as you want. However, a good rule of thumb is 1 outlet per 1.5 amps, up to 80% of the capacity of the circuit breaker. Therefore, we would suggest a maximum of 8 outlets for a 15 amp circuit.
How many receptacles can be on a 20 amp circuit?
The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.
