Pull boxes are used along with conduit to simplify wiring installation, hence their name. They are made of sheet metal, cast metal, or a non-metallic material, and provide a way to pull conductors long distances without placing excessive strain on the wire or insulation.

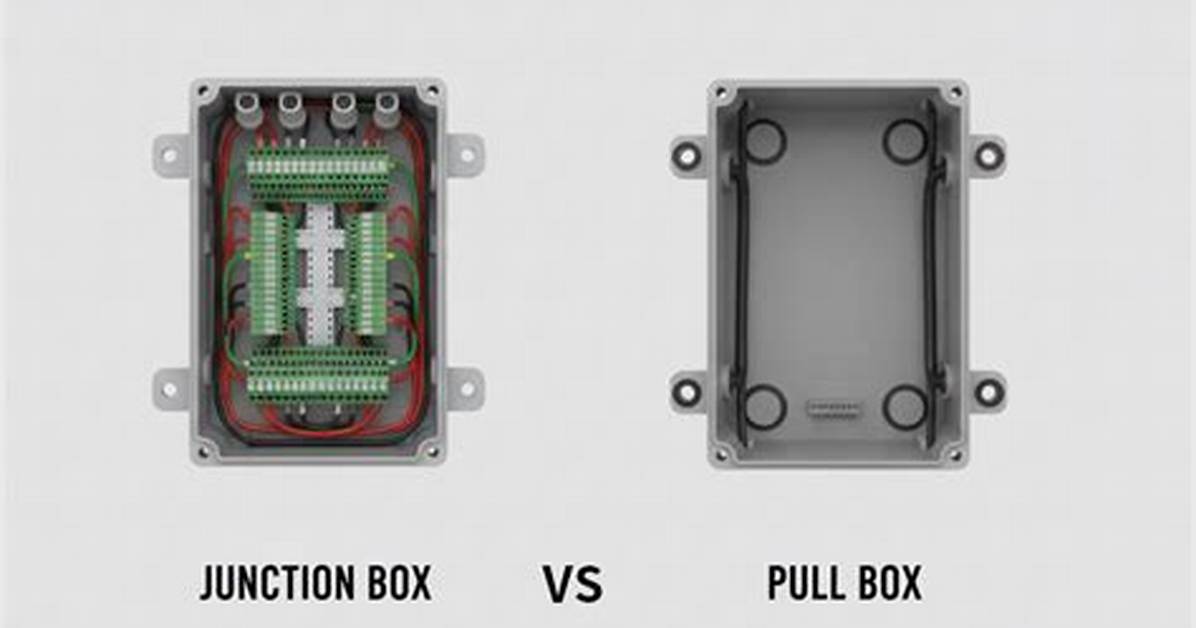

What is the difference between a pull box and a junction box?
Pull and junction boxes
As a rule of thumb, pull boxes are used when conductors are pulled straight through a box and terminated down-stream. On the other hand, junction boxes can be used for splicing or tapping conductors.
How do you size a pull box?
Straight pulls need 8 times the the diameter of the largest conduit/raceway. In this case, simply multiply your largest raceway size by 8, and that will give you the minimum length for your box.
Does a pull box have to be accessible?
Junction box covers must remain accessible; they cannot be covered with drywall or other surface material. A junction box is most often used where an electrical circuit branches off in two or more directions from a location where an outlet or fixture is not practical.
Can you splice in a pull box?
No, there is no requirement to make splices in a junction box. However, if you’re not making any splices, and never plan to. You can use a conduit body, instead of a junction box.
What’s an electrical pull box?
Definition of pull box
: a metal box with a blank cover that is installed in an accessible place in a run of conduit to facilitate the pulling in of wires or cables.
What is the difference between a pull box and a hand hole?
A Handhole is a shallow metal electrical utility or pull box (also called an access or splice box) installed within a run of conduit or ducts that allows for easy access to pull in, splice and terminate wires or cables.
What material is a pulling wire usually made of?
Nylon pull rope, also called “pull string,” “pull lines,” or “pull cords,” has an excellent tensile-strength-to-weight ratio, and is classified by its pound pull weight capacity. Nylon pull rope is used for pulling wires and cables, usually in conjunction with other tools described here.
How do you size a NEC pull box?
For straight pulls, 314.28(A)(1) requires that the length of the box be at least eight times the trade size of the largest raceway. To correctly apply 314.28(A)(1), just multiply the largest raceway size by eight. The box must be at least as long as that number.
How far should pull boxes be?
300-13(a)], the maximum distance between pull boxes depends on the length of the conductors. The Code specifies there shall be no more than the equivalent of four-quarter bends (360 total) between pull points.
What is the minimum length of the pull box?
The minimum length required for this box is 16 inches (see Figure 5). The width and depth of the pull or junction box depends on the installed raceways. Unless a raceway enters the back of the box, no requirement specifies the width or depth.
Can you hide a junction box in a wall?
A junction box, also known as a splice or switch box, is an electrical enclosure inside your home that contains wiring. Electrical wires run behind the walls and through the ceiling of your home, meeting at junction boxes. It is a safety hazard to completely bury a junction box in a wall.
Can I put a junction box in the ceiling?
Junction boxes must be installed where they are always accessible; never install a junction box in a concealed wall or ceiling space where the box cannot be accessed in the future. Junction boxes also must be covered with solid covers with no holes.
Can a junction box be behind a removable panel?
Junction boxes above drop ceilings are considered Accessible but if you have to remove part of the building (such as a piece of drywall) then it is NOT accessible. I had a house where the panel was behind some paneling that was hinged. This is usually acceptable to the Inspector.
Can you make splices in a LB?
Is it legal to splice conductors in an “LB” fitting? A. Splices are only permitted in conduit bodies that are marked by the manufacturer with their volume; and the maximum number of conductors permitted in a conduit body is limited in accordance with 314.16(B) [314.16(C)(2)].
Can you wire nut in LB?
Absolutely not. No splicing in a conduit body. They are only to help fish wires.
Can wires pass through a junction box?
Mistake: No electrical box | Never connect wires outside of electrical boxes. Junction boxes (or a J box) protect the connections from accidental damage and contain sparks and heat from a loose connection or short circuit.
