Cisco StackWise technology unites up to nine individual Cisco Catalyst 3750 switches into a single logical unit, using special stack interconnect cables and stacking software. The stack behaves as a single switching unit that is managed by a master switch elected from one of the member switches.
What is a characteristic of Cisco StackWise technology?
The StackWise technology creates a virtual connection between the devices without additional cabling. Unites multiple access switches in the same rack.
How does StackWise virtual work?
StackWise virtual combines two physical switches and works as a single logical switch. It utilizes NSF and SSO technologies and provides smooth traffic failover in case if one of the switches fails. To the devices connecting to one StackWise Virtual domain, it appears as a single logical switch.
What are the benefits with Stackwised technology?
What Are the Benefits?
It is simple: The StackWise cables make it easy to virtualize two Cisco Catalyst switches into a single logical switch. It is scalable: The fully distributed architecture increases network bandwidth for improved user experience.
How many StackWise cables do I need?
RE: how many stack cables for two switches stack
In order to build a stack all you need is one. This will place the stack in a daisy chain stacking topology. If you would like full redundancy I would recommend the ring stacking topology which requires two cables for a two switch stack.
What is Cisco VSL?
VSL is used to carry on proprietary encapsulated frames also control plane messages to form a single device, one supervisor the active one controls both chassis with second supervisor acting as hot standby as in a single chassis with two supervisors.
What is the difference between StackWise and StackWise virtual?
What is the difference between StackWise-480 and StackWise Virtual? The existing StackWise technology significantly streamlines the access or distribution layer using high-speed back-panel StackWise ports and cables. The new StackWise Virtual increases switch stack function over the network ports and cables.
How many Cisco switches can you stack?
Stacking 3750 Switches (maximum allowed) – Cisco Community.
What is VSS in Cisco switch?
Introduction. The Cisco Catalyst 6500 Series Virtual Switching System (VSS) allows the clustering of two or more physical chassis together into a single, logical entity. This technology allows for enhancements in all areas of network design, including high availability, scalability, management, and maintenance.
Does Cisco 9500 support VSS?
The 9500 series support Virtual Stacking, which is another name for VSS. An Unexpected Error has occurred. An Unexpected Error has occurred. OSPF: RFCs 3101 1587 VS RFCs 1583 2328 compatiblity for path

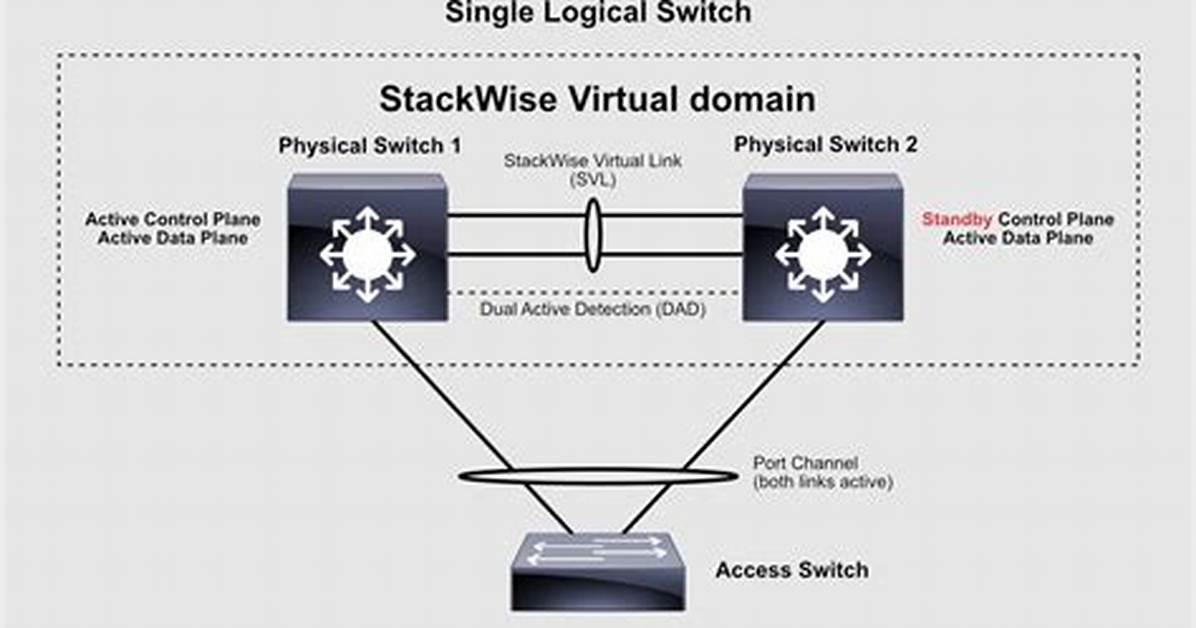

What is StackWise virtual dual active detection?
Dual-Active-Detection link (blue link)
If the standby switch detects a complete loss of the StackWise Virtual link, it assumes the active switch has failed and will take over as the active switch.
How many switches can be in StackWise virtual?
StackWise Virtual feature, which allows you to manage two Cisco Catalyst 9000 Switches as a single switch.
Does Cisco Catalyst 9300 support StackWise virtual?
The Catalyst 9300 supoorts StackWise-480. However, Catalyst 9400 and Catalyst 9500 do not support Stack-Wise. Catalyst 9400 chassis Stackwise-virtual (which offers the functionalities as VSS) is currently targeted with 16.9 release with single supervisor.
What is vPC nexus?
vPC (Virtual Port Channel) is the Cisco Proprietary feature that is only working on Cisco Nexus Components. vPC use to make Nexus devices logically single devices for the end host or devices. vPC is also known as Multi-chassis EtherChannel (MEC).
