A series circuit has multiple resistors. Instead of just one light or one television on the circuit, a series circuit has at least two. In a series circuit, even though there are multiple resistors, there is only one path through which the electric current can move.
What household items use series circuits?
Automatic house- heating equipment has a thermostat, and safety cut-out connected in series with a voltage source. Water heaters, well water pump, lamps, freezers and refrigerators are some of the other appliances which use a series circuit.
Where is a series circuit used?
Series circuits are somewhat rare in house wiring, but they are sometimes used in strings of Christmas lights or landscape luminaries, where one light bulb failing will cause the entire string to go dark. When the bulb goes out in a string of holiday lights, it creates an open circuit in the wiring.
What is a simple series circuit?
A simple series circuit definition is, “A circuit with the components arranged in a straight line, so all of the current flows through each component in turn.” If you made a basic loop circuit with a battery connected to two resistors, and then have a connection running back to the battery, the two resistors would be
Are Christmas lights a parallel circuit?
These are the reasons why new Christmas light strands are wired in parallel. Parallel wiring allows for several paths that electricity can take to get from the energy source to where the power is grounded. Even with several strings of lights connected, each string functions in parallel, not in a series.
What are examples of series and parallel circuits?
If a wire joins the battery to one bulb, to the next bulb, to the next bulb, to the next bulb, then back to the battery in one continuous loop, the bulbs are said to be in series. If each bulb is wired to the battery in a separate loop, the bulbs are said to be in parallel.
Is a flashlight a series circuit?
For example, the circuits in flashlights are usually series circuits. The charge flows through one battery, through the next, through the bulb, and back to the first battery.
Are appliances series circuits?
Refrigerators use series circuits. Found in many appliances in an around the home, series circuits are designed to perform only one main task. Usually, series circuits only contain two elements beyond the circuit breaker–a switch and the element controlled by the switch.
Is a lamp a series circuit?
Lamps in Parallel
This type of circuit is often called a parallel circuit but you can see that it is not really so simple – the switches are in series with the lamps, and it is these switch and lamp pairs that are connected in parallel.
What is a real life example of a parallel circuit?
A prime example is light fixtures that use multiple light bulbs. When a single bulb in the fixture goes the light fixture continues to operate. This is because, at each light receptacle, there is a parallel circuit that allows the electricity to flow around the inoperative bulb.
What is an example of a parallel circuit in your home?
An example of a parallel circuit is the wiring system of a house. A single electric power source supplies all the lights and appliances with the same voltage. If one of the lights burns out, current can still flow through the rest of the lights and appliances.
What are the 3 rules for a series circuit?
In summary, a series circuit is defined as having only one path through which current can flow. From this definition, three rules of series circuits follow: all components share the same current; resistances add to equal a larger, total resistance; and voltage drops add to equal a larger, total voltage.
What is difference between series and parallel circuits?
REVIEW: In a series circuit, all components are connected end-to-end, forming a single path for current flow. In a parallel circuit, all components are connected across each other, forming exactly two sets of electrically common points.
Which circuit is a series circuit?
) A series circuit comprises a path along which the whole current flows through each component. A parallel circuit comprises branches so that the current divides and only part of it flows through any branch.
Are fairy lights in series or parallel?
Ok, not really. The answer is that the lights are connected in series but the bulbs have a trick. Let’s take a closer look at one of the light bulbs in the strand. A shunt wire (bypass wire) in a Christmas light.
Are LED lights wired in series or parallel?

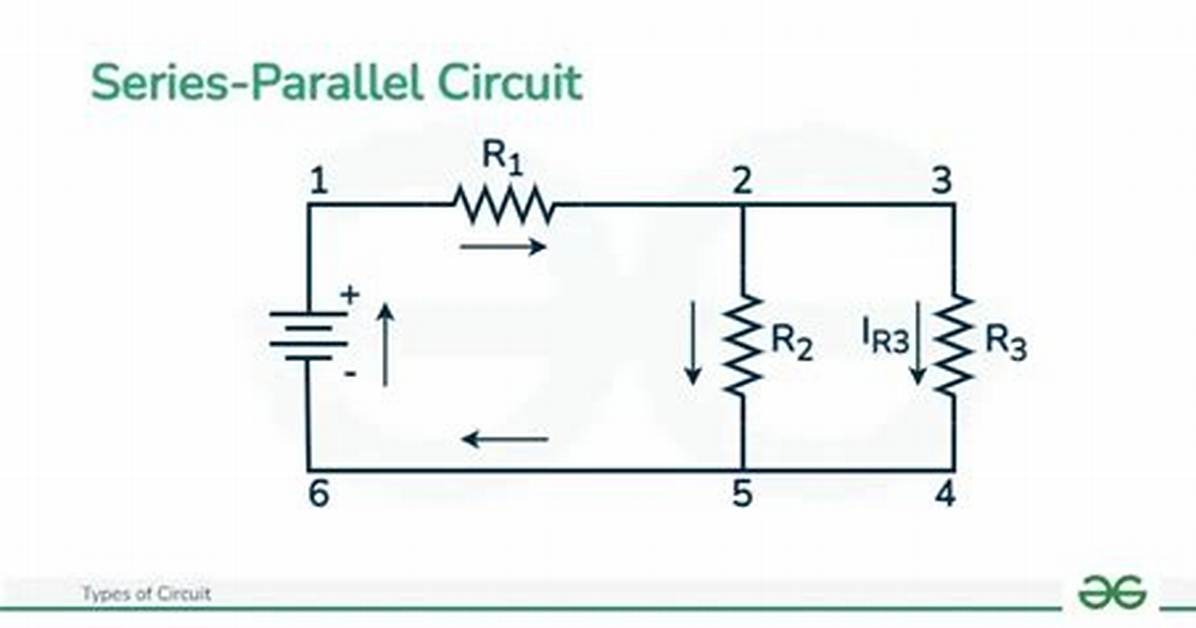

Generally speaking, most LED lighting uses a series-parallel combination. Ideally, for reliability and lighting consistency, it would be best to have one strip of LEDs all wired in series to a constant current driver.
Are string lights series or parallel?
Christmas lights are wired as a “series” of lights along a single electrical path. That means that the first bulb must past electricity to the next, sequentially, from first to last in the series for ANY of them to light up.
