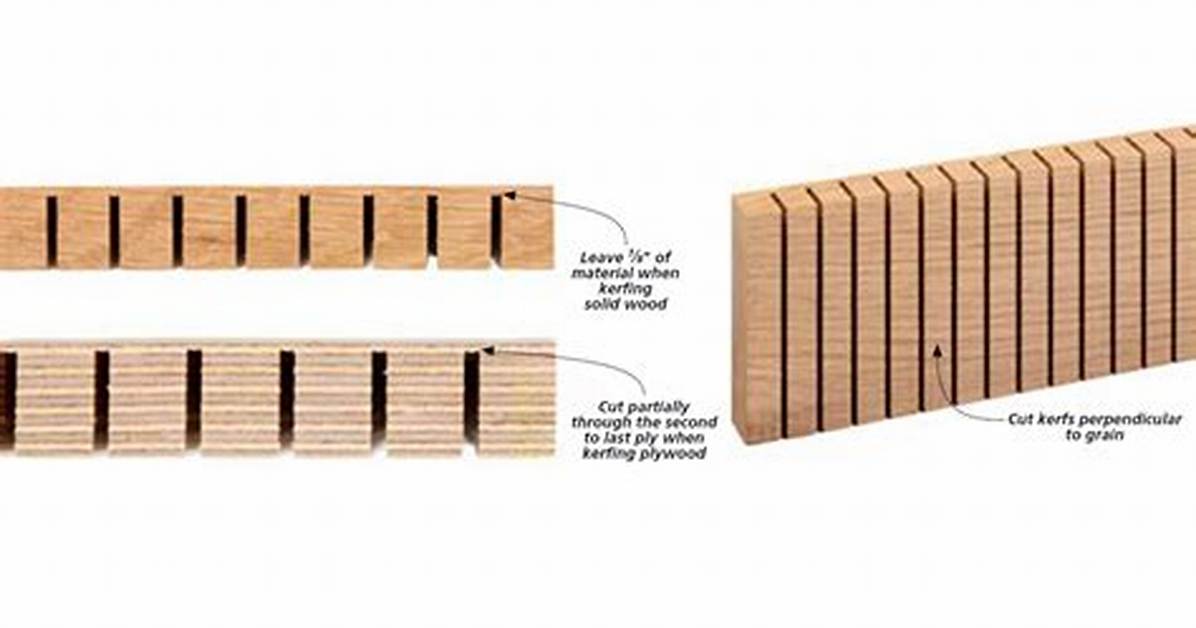

Kerf refers to the width of cut a sawblade makes when it’s cut through wood. When you’re cutting a board you have to allow for the width of the sawblade and its teeth when you’re cutting. Kerf cutting is making many kerf cuts (cuts the width of your sawblade) along a piece of wood.
How deep is a kerf cut?
For plywood, the general rule is to cut deep enough so you just barely score the second ply (the layer under the face veneer), see photo (C). And for Masonite, the kerf depth should be about one-half (or a little more) of the thickness of the material, see photo (D).
What is kerf cut metal?
Kerf = Width
When talking about CNC shape cutting with typical cutting processes, kerf is the width of material that the process removes as it cuts through the plate.
What is kerf cut bending?
Kerf bending is the process of cutting a number of slots into a piece of material that allow it to bend. Essentially, by kerfing the part, you are making it thinner, so it can be flexed to follow a curve. While this method is not very strong, it does allow for easy forming of wide or tall parts.
How do you fill kerf cuts?
You fill kerf cuts by holding the curve in place and then filling it with glue or resin. Wood glue is cheaper than resin, and both have a similar finish. If you hold the curve in place and then fill them, it can be more tricky than filling them with glue first and then holding the curve in place.
How do you calculate kerf?
KERF-CUT FORMULA
Take the Outside Perimeter of the radius and subtract the Inside Perimeter. This gives the amount of frame to be removed. 2. Divide this amount by the thickness of the saw blade.
How far apart should kerf cuts be?
From the center point, or apex, of the kerfed portion, the team lays out 3/32″-thick kerfs 3/8″ apart for a total span of 8″—4″ on either side of the apex. This spacing allows for maximum flexibility and stress relief right in the middle of the bend.
How do you bend plywood without breaking it?
Use clamps to bend the plywood around your mold. Use bar clamps for plywood thicker than 1/2 inch and use strap clamps for thinner plywood. Strap clamps won’t form depressions in the wood, but they aren’t strong enough to bend thick plywood.
Why is the kerf important?
Why is saw kerf important? A saw’s kerf is crucial in helping you make accurate cuts. When you make the cut, you have to account for the part of the board that will turn into sawdust.
What is a kerf tool?
Kerf = Width
When talking about CNC shape cutting with typical cutting processes, kerf is the width of material that the process removes as it cuts through the plate.
What is kerf value?
Description: Kerf is the allowance required to compensate for the tool width. With thermal cutting tools the kerf value is normally material and gauge dependent. If Kerf = 1.0,and you need a Part 100 x 100 then the cutting program will be compensated and cut along a centre line at 100.5 x 100.5.
How is kerf width measured?
How to measure kerf. Measuring the kerf is fairly straightforward. You simple make a part with a known dimension (such as a one-inch square) and then carefully measure the actual width. If your one-inch square is actually 0.96 inches, then your kerf is 0.04 inches.
Can you kerf cut MDF?
There are a couple of good ways to bend medium density fiberboard (MDF). One is called “Kerf-cutting” and the other is by laminating. For most purposes Kerf-cutting will work better–it’s easier to pull off and less time-consuming. Laminating is the better way to go when you need to form a compound curve.
